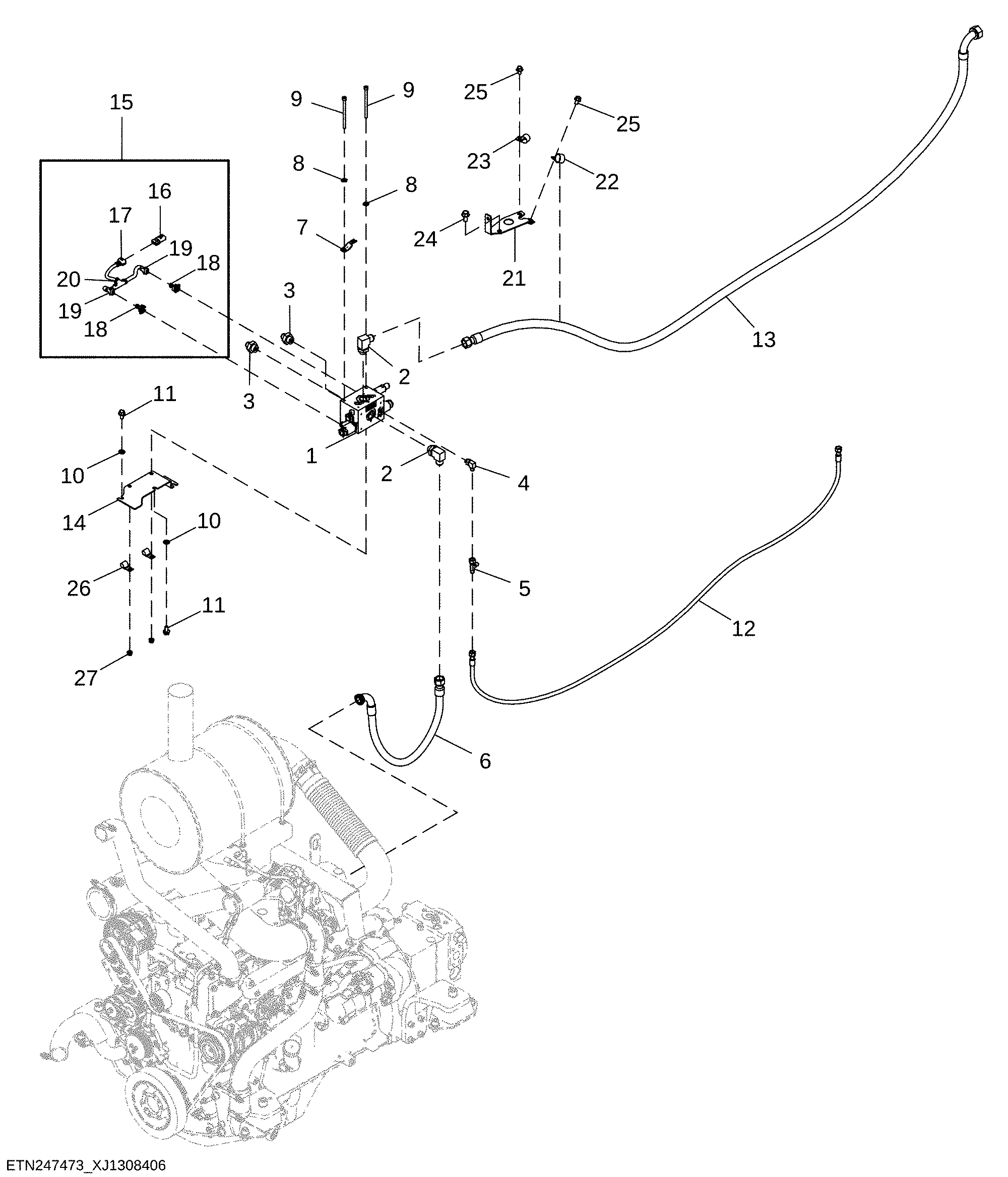

Hydraulic Fan Valve and Hoses (004643 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F070041	1	Control Valve	COMPONENTS ON SEPARATE PAGE
2	F005049	2	Elbow Fitting	-
3	F012507	2	Fitting	-
4	F024599	1	Elbow Fitting	-
5	F023535	1	Tee Fitting	-
6	F072512	1	Hydraulic Hose	LGTH = 800 mm, From Fan Pump Pressure Port to Fan Valve P
7	57M8736	1	Elec. Connector Accessory	-
8	F064435	2	Lock Washer	-
9	19M9181	2	Screw	M8 X 125
10	F064436	3	Washer	-
11	19M9448	3	Screw	M10 X 20
12	F053045	1	Hydraulic Hose	LGTH = 2000 mm, From Fan Valve PS to Auxiliary Valve PS
13	F686476	1	Hydraulic Hose	LGTH = 2700 mm, From Thermostat DR2 to Fan Valve T
14	F686310	1	Bracket	-
15	F695266	1	Wiring Harness	Cooling Fan Block Harness
16	57M9784	1	Elec. Connector Housing	X123
16	57M9813	3	Elec. Connector Terminal	-
17	57M9838	1	Elec. Connector Accessory	-
18	57M7406	2	Elec. Connector Housing	YF2 And YF3
18	57M8621	4	Elec. Connector Terminal	-
18	57M7399	4	Elec. Connector Seal	-
19	57M13003	2	Elec. Connector Accessory	-
20	57M10646	1	Elec. Connector Accessory	-
21	F691464	1	Support	-
22	F004422	1	Hose Support	-
23	AT124557	1	Hose Clamp	-
24	19M9570	1	Screw	M12 X 25
25	19M10358	2	Screw	M10 X 16
26	AH89557	2	Clip	-
27	14M7601	2	Flange Nut	M8

Hydraulic Fan Valve and Hoses (004643 - )
