Открытый узел

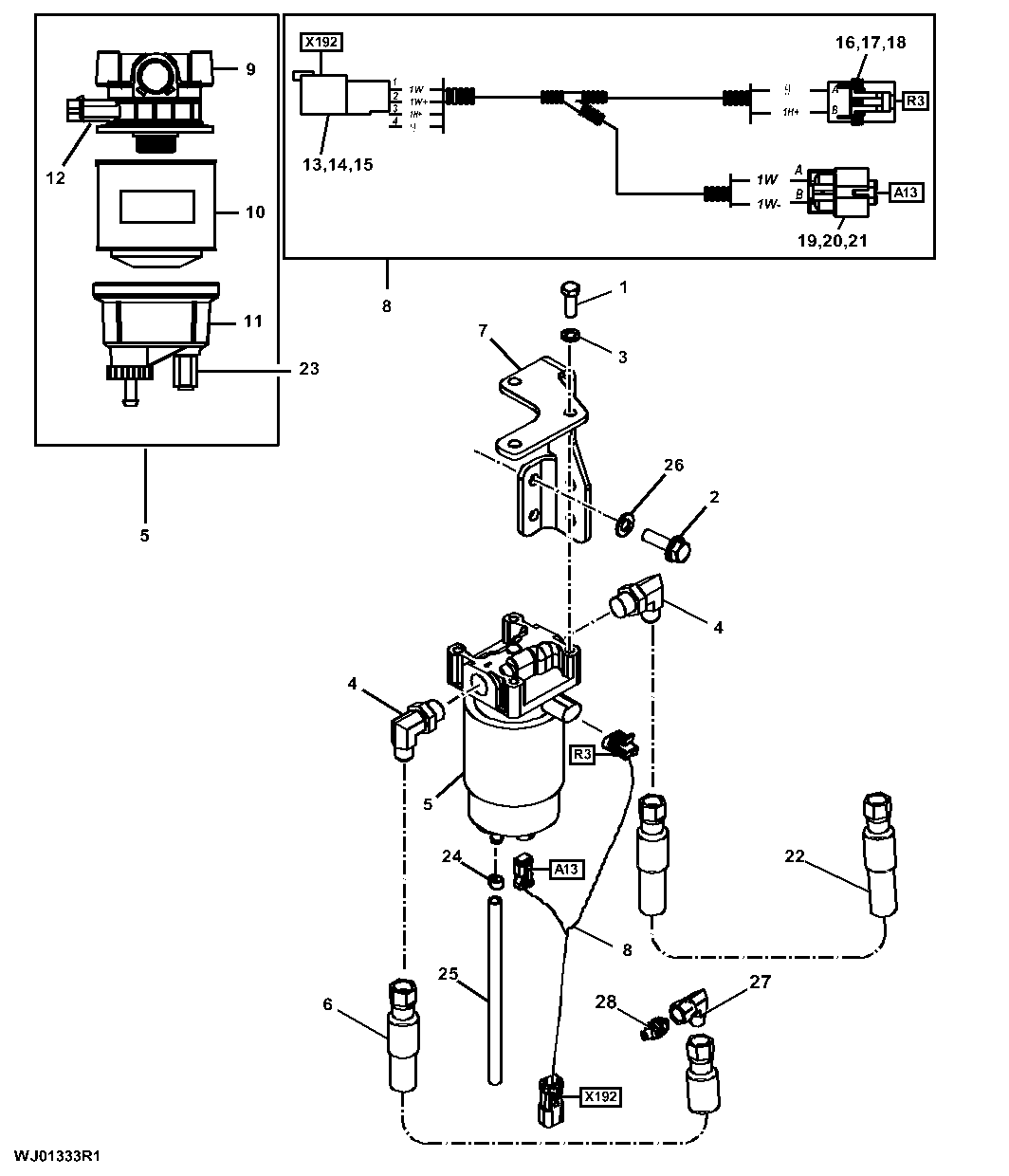

Fuel and Water Separator (003280 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3936	3	Cap Screw	3/8" X 1"
2	19M9569	2	Screw	M8 X 25
3	F005551	3	Lock Washer	-
4	F069951	2	Elbow Fitting	-
5	F070016	1	Filter	-
6	F074433	1	Fuel Line	From Water Separator to Engine Primary Fuel Filter
7	F656917	1	Bracket	-
8	F645013	1	Wiring Harness	-
9	F070073	1	Frame	-
10	F304866	1	Filter Element	-
11	F070077	1	Bowl	Sensor Not Included, See Key 23
12	F070075	1	Heater	Heater Service Kit
13	F059559	1	Electrical Connector Assy	SUB FOR 57M7628
14	57M7619	1	Elec.Connect Locking Device	-
15	R78066	4	Elec. Connector Terminal	-
16	57M7309	1	Elec. Connector Housing	-
16	R78059	1	Elec. Connector Seal	-
17	57M7306	1	Elec.Connect Locking Device	-
18	57M7297	2	Elec. Connector Terminal	-
19	57M8601	1	Elec. Connector Housing	-
19	57M8566	1	Elec. Connector Seal	-
20	57M8633	4	Elec. Connector Accessory	-
21	57M8602	4	Elec. Connector Terminal	-
22	-	1	Part 24	From Fuel Tank to Water Separator
23	F073424	1	Sensor	-
24	F071244	1	Hose Clamp	-
25	F676868	1	Hose	SUB FOR F616047
26	24M7509	2	Washer	8.400 X 16 X 1.600 mm
27	F005045	1	Elbow Fitting	-
28	F626144	1	Fitting	-

Fuel and Water Separator (003280 - )

Нет текстового описания
