Открытый узел

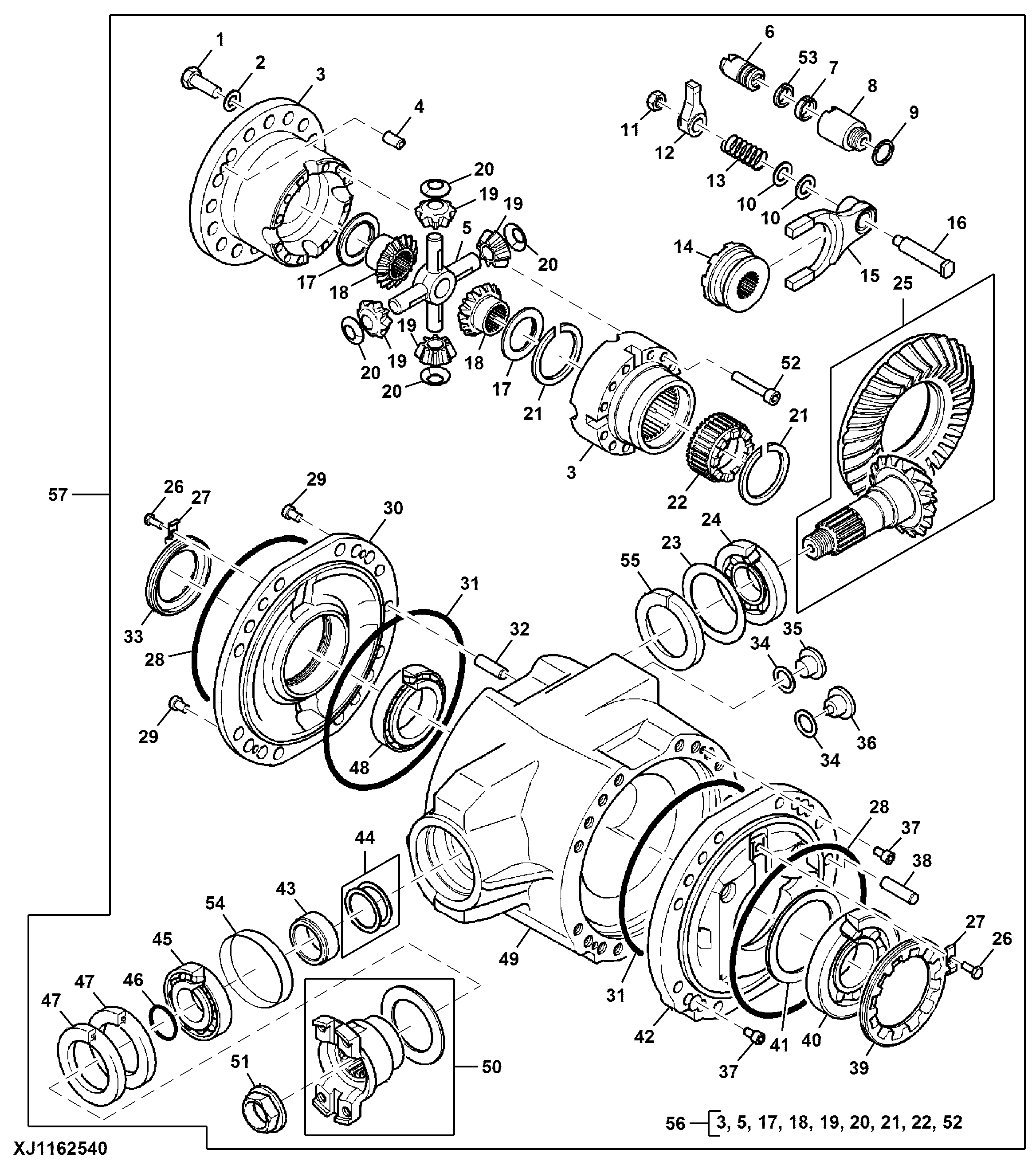

Differential, 6 Wheel Front Axle, LOK 154

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7489	16	Cap Screw	M16 X 45
2	F009375	16	Washer	-
3	F052962	1	Housing	-
4	F004738	2	Pin	-
5	F043648	1	Shaft	-
6	F050812	1	Piston	-
7	F009469	1	Seal	-
8	F058934	1	Cylinder	-
9	F009465	1	Sealing Ring	-
10	F045259	1	Shim Kit	S= 1.5 / 2.0 / 2.5 / 3.0 mm
11	F023666	1	Nut	-
12	F064584	1	Locking Collar	-
13	F009394	1	Spring	-
14	F004977	1	Snap Ring	-
15	F009430	1	Fork	-
16	F064585	1	Pin Fastener	-
17	F045260	2	Shim Kit	S= 1.5 / 1.7 / 2.0 / 2.2 mm
18	F049364	2	Gear	-
19	F049365	4	Gear	-
20	F044145	4	Runner	-
21	F004757	2	Snap Ring	-
22	F049366	1	Sleeve	-
23	F045261	1	SHIM KIT	S= 3.0 / 2.75 / 2.5 mm
24	F009444	1	BEARING	-
25	F056207	1	Ring Gear And Pinion	Z= 31/6
26	F004638	2	Screw	-
27	F004891	2	Lock Washer	-
28	F025234	2	O-Ring	-
29	F004654	2	SCREW	-
30	F072890	1	Flange	NLA; ORDER F035842
30	F035842	1	Flange	-
31	F003308	2	O-Ring	-
32	F004740	5	PIN	USE WITH F072890
32	F035794	5	Dowel Pin	USE WITH F035842
33	F034624	1	Nut	-
34	F018108	2	Washer	-
35	F025332	1	Plug	-
36	F025228	1	Plug	-
37	19M9703	2	Screw	M10 X 20
38	F004740	1	PIN	USE WITH F043649
38	F004742	4	Pin	USE WITH F072891
39	F004814	1	Nut	-
40	F004688	1	Tapered Roller Bearing	-
41	F004751	1	Snap Ring	-
42	F072891	1	Flange	NLA; ORDER F043649
42	F043649	1	Flange	-
43	F023659	1	SPACER RING	-
44	F045262	1	Shim Kit	S= 0.96 - 1.44 mm, Gap 0.04 mm
45	F009443	1	BEARING	-
46	F011429	1	O-Ring	-
47	F011427	2	Seal	-
48	F035796	1	Tapered Roller Bearing	INCLUDES F071093
48	F071093	1	Seal	Not Illustrated
49	F072892	1	Housing	NLA; ORDER F671048
49	F671048	1	Differential W/Axle Housing	-
50	F011442	1	Shaft	-
51	F021149	1	Nut	-
52	F004659	12	Cap Screw	-
53	F050813	1	Seal	-
54	F065881	1	Seal	NLA
55	F045418	1	Cover	-
56	F071094	1	Housing	Differential Housing, Complete
57	F074603	1	Differential	Differential, Complete

Differential, 6 Wheel Front Axle, LOK 154

Нет текстового описания
