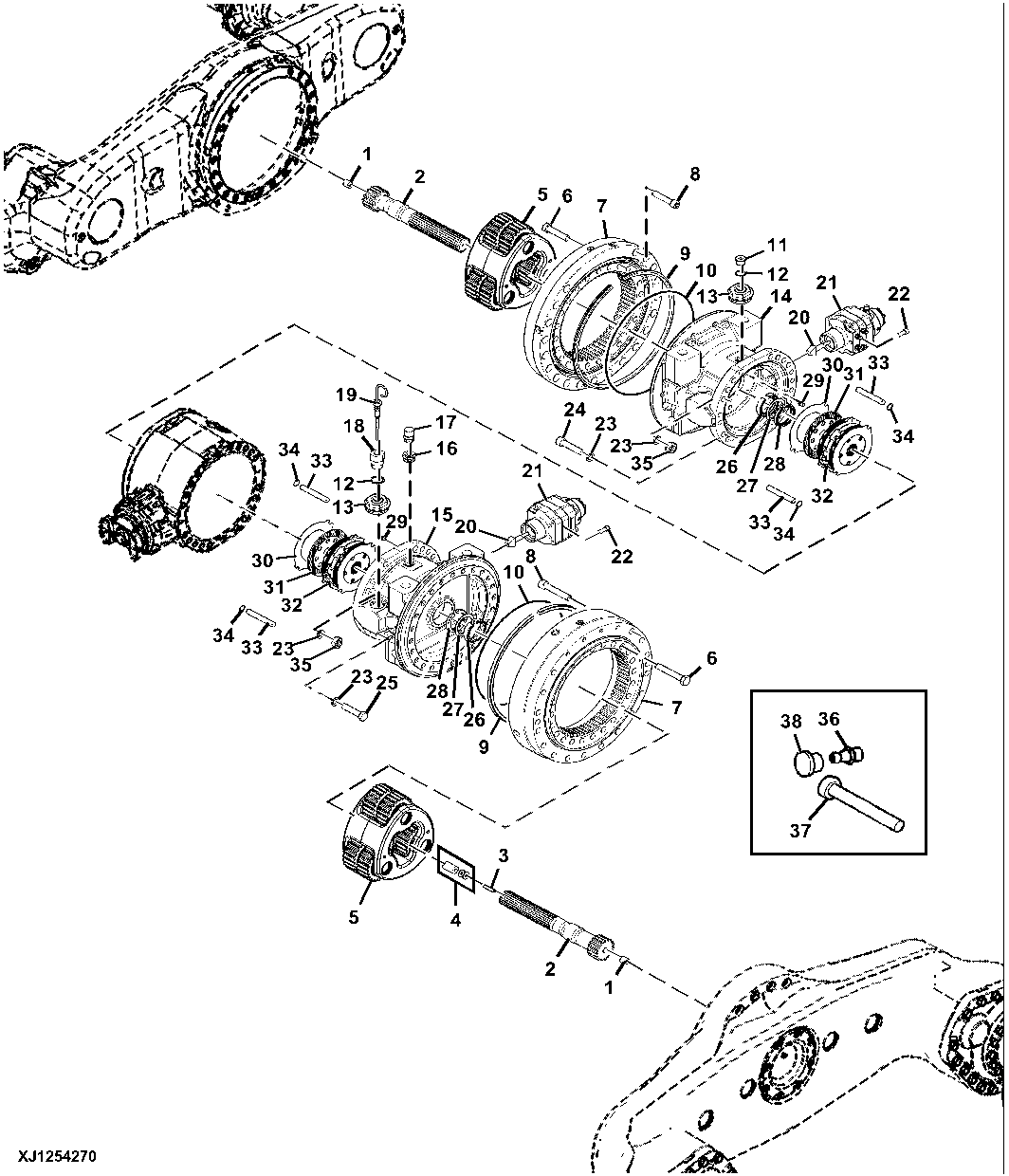

Axle Beam, Standard Front and Rear Axle, LOK 165

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F025324	2	Bolt	-
2	F074413	2	Shaft	Z = 18
3	34M7070	1	Spring Pin	10 X 45 mm
4	F074462	1	Stud Kit	-
5	F075461	2	Planetary Assembly	COMPONENTS ON SEPARATE PAGE
5	F690500	2	Planetary Assembly	COMPONENTS ON SEPARATE PAGE
6	F434620	48	Screw	-
7	F064588	2	Swing Bearing	-
8	F054485	32	Self-Locking Screw	M18x2x100
9	F698808	2	Seal	SUB FOR F060868
10	F035856	2	O-Ring	-
11	F025332	2	Plug	-
12	F018108	4	Washer	-
13	F064243	2	Fitting	-
14	F072072	1	Housing	-
15	F072073	1	Housing	-
16	F040529	1	Fitting	-
17	F025304	1	Breather	R1/2” 0.3 bar
18	F045036	1	Fitting	-
19	F045037	1	Dipstick	-
20	F045021	2	Wedge	-
21	F701158	2	Brake	COMPONENTS ON SEPARATE PAGE
21	F675047	2	Cylinder	NLA; ORDER F701158; SUB FOR F072402; COMPONENTS ON SEPARATE PAGE
22	F038340	6	Self-Locking Screw	-
23	F025333	32	Washer	-
24	F025323	15	SCREW	-
25	F064485	14	Screw	-
26	F035853	2	Seal	-
27	F059545	2	Washer	-
28	F059546	2	Seal	-
29	F009489	2	Breather	-
30	F072092	12	Brake Actuating Disk	TK = 66.04 mm
31	F056912	12	Brake Disk	TK = 121.92 mm
32	F060152	2	Disk Brake Caliper Assy	TK = 165.1 mm
33	F025329	8	Pin	-
34	F025330	4	Lock Washer	-
35	F699034	2	Nut	-
36	F003728	8	GREASE NIPPLE	NLA; ORDER 58M5574
36	58M5574	8	Lubrication Fitting	-
37	F064589	32	Screw	M18x2x75
38	F074414	8	Plug	-

Axle Beam, Standard Front and Rear Axle, LOK 165
