Открытый узел

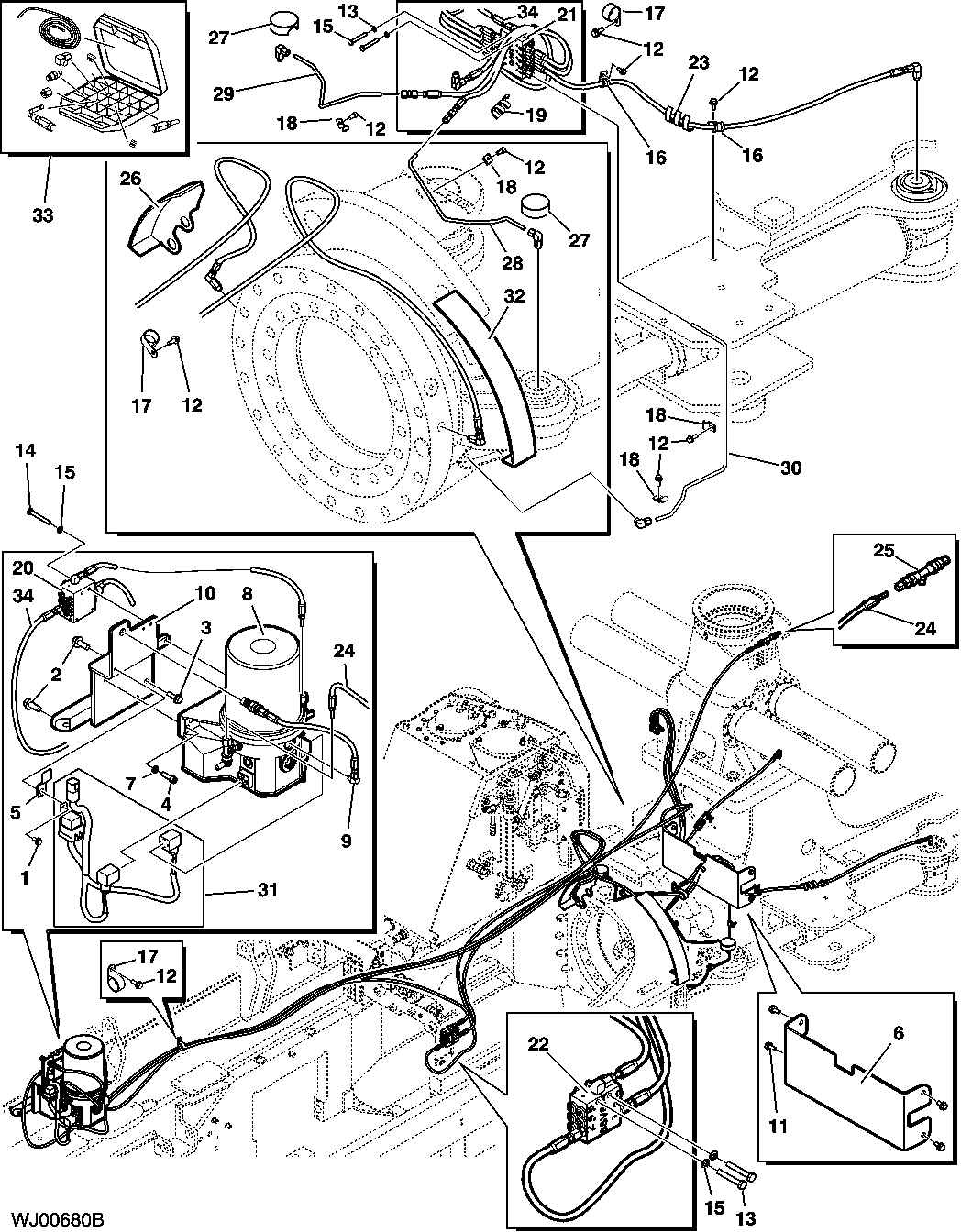

Auto Lubrication System - Carrier ( - 3279)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9566	1	Screw	M6 X 12
2	19M9698	2	Screw	M10 X 25
3	19M9683	1	Cap Screw	M8 X 25
4	19M9738	2	Screw	M8 X 25
5	57M8736	1	Elec. Connector Accessory	-
6	F658106	1	Shield	-
7	F008262	2	Lock Washer	-
8	F071253	1	Lubricating Sys Component	Components on Separate Page
8	F074680	1	Lubricating Sys Component	Components on Separate Page
9	F072703	1	Lubricating Sys Component	-
10	F649204	1	Bracket	-
11	19M9567	4	Screw	M8 X 16
12	19M9443	10	Screw	M6 X 16
13	19M9619	4	Cap Screw	M6 X 40
14	19M9621	2	Cap Screw	M6 X 50
15	F003345	6	Spring Washer	-
16	F015016	3	Hose Clamp	-
17	F017094	5	Hose Support	-
18	F027046	4	Clip	-
19	F070611	1	Hose Guard	-
20	F074315	2	Lubricating Sys Component	(Metering Screw) F 0.30CCM "D" SSVD
20	F074313	1	Lubricating Sys Component	(Divider Block) Divider Block Without Fittings, SSVD6/3-K NLA; ORDER F712836
20	F074316	1	Lubricating Sys Component	(Metering Screw) F 0.14CCM "B" SSVD
20	-	1	Part 21	(Spare Parts in Repair Kit) Incl. Key 34
20	F712836	1	Manifold Kit	Divider Block With Fittings
21	-	1	Part 26	(Spare Parts in Repair Kit)
21	F074571	1	Lubricating Sys Component	(Divider Block) Divider Block Without Fittings, SSV10 NLA; ORDER F712741
21	F712741	1	Manifold Kit	Divider Block With Fittings
22	-	1	Part 29	(Spare Parts in Repair Kit) SSV6
22	F071256	1	Lubricating Sys Component	(Divider Block) Divider Block Without Fittings, SSV6, NLA; ORDER F712800
22	F712800	1	Manifold Kit	(Divider Block) Divider Block With Fittings
23	F072277	2	Hose Guard	-
24	F073339	1	Lubricating Sys Component	(Pressure Hose) L= 6600 mm
25	F073522	1	Fitting	-
26	F658090	1	Cover	-
27	F649130	2	Tube	-
28	F649233	1	Pipe	L= 348 mm
29	F649234	1	Pipe	L= 368 mm
30	F649235	1	Pipe	L= 590 mm
31	F653686	1	Wiring Harness	Components on Separate Page
32	F658101	1	Cover	-
33	F072976	1	Repair Kit	Components on Separate Page
34	F074299	1	Grease Hose	L= 5800 mm

Auto Lubrication System - Carrier ( - 3279)

Нет текстового описания
