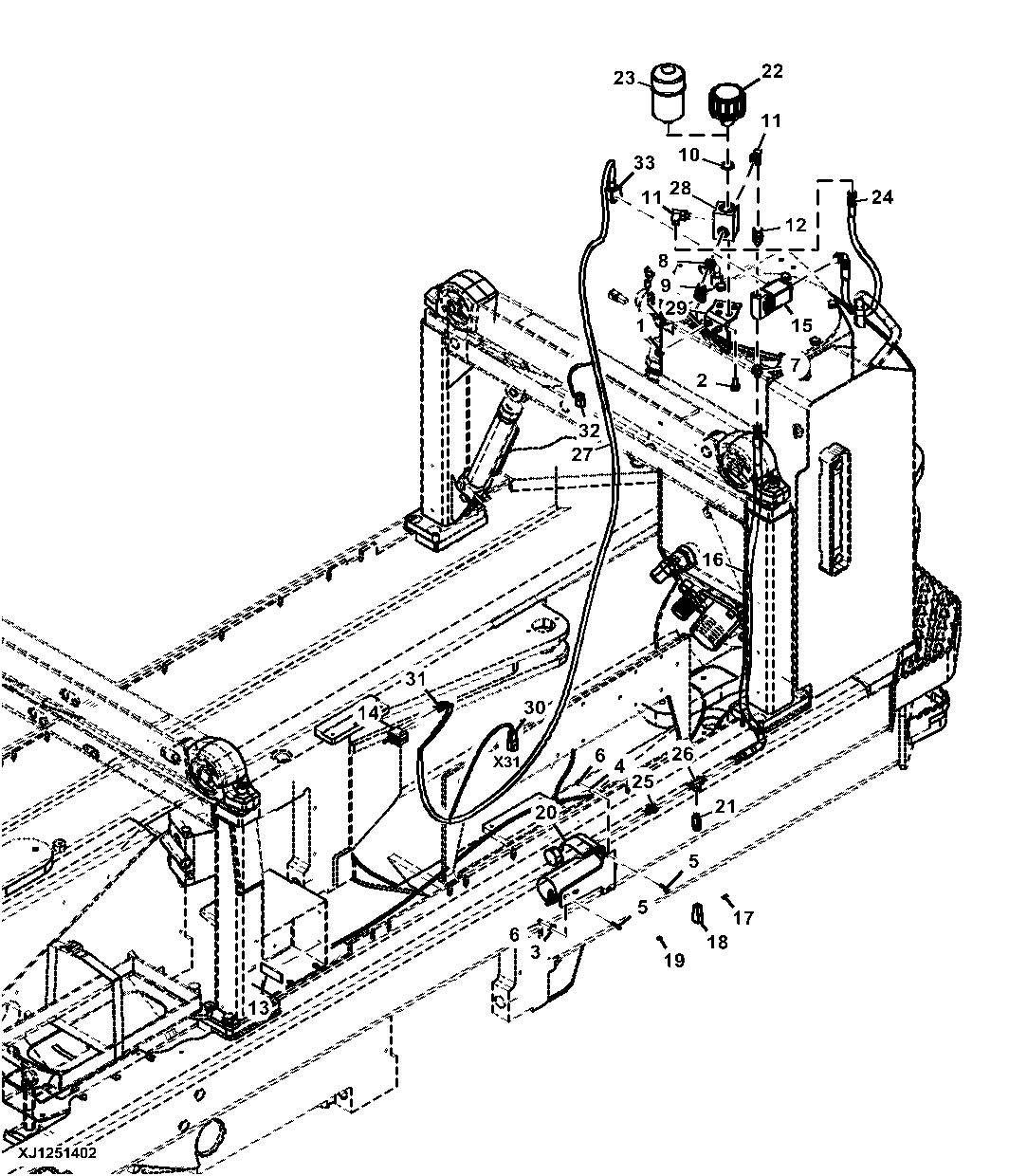

Vacuum Pump With Breather / Dryer (002518 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7601	2	Flange Nut	M8
2	19M9568	2	Screw	M8 X 20
3	24M7481	1	Washer	5.500 X 18 X 2 mm
4	24M7502	2	Washer	5.300 X 10 X 1 mm
5	19M9670	3	Cap Screw	M5 X 20, SUB FOR F003516
6	14M7265	3	Lock Nut	M5, SUB FOR F003585
7	F005052	1	NIPPLE	-
8	F005057	1	Fitting	-
9	F013594	1	Elbow Fitting	-
10	F021688	1	O-RING	-
11	F024599	2	Elbow Fitting	-
12	F024875	1	CONNECTION	-
13	F030238	1	Sign	-
14	F032095	1	Switch	-
15	F040060	1	Solenoid Valve	-
16	F046819	1	Hydraulic Hose	LGTH = 1200 mm
17	57M7541	1	Elec. Connector Terminal	SUB FOR F052692
18	F052694	1	Electrical Connector Assy	-
19	57M7621	1	Elec.Connect Locking Device	SUB FOR F052695
20	F061614	1	Pump	-
21	F061615	1	Pressure Relief Valve	-
22	F062132	1	Breather	-
23	F070687	1	Breather	-
24	F071012	1	Hydraulic Hose	LGTH = 600 mm
24	F072278	1	Hydraulic Hose	LGTH = 600 mm
25	F071418	1	Adapter	-
26	F071422	1	Tee Fitting	-
27	F613746	1	WIRING HARNESS	-
28	F641643	1	Fitting	-
29	F645335	1	Bracket	-
30	57M7628	1	Electrical Connector Assy	SUB FOR F053706
30	R78066	2	Elec. Connector Terminal	SUB FOR F045798
30	57M7619	1	Elec.Connect Locking Device	SUB FOR F053707
31	F056829	2	Elec. Connector Terminal	-
31	F056828	2	Sleeve	NLA; ORDER Z40757
31	Z40757	2	Elec. Connector Accessory	-
32	F052686	1	Electrical Connector Assy	-
32	57M7620	1	Electrical Connector Assy	SUB FOR F052688
32	R78065	2	Elec. Connector Terminal	SUB FOR F055139
33	F004578	1	CONNECTOR	-

Vacuum Pump With Breather / Dryer (002518 - )
