Proportional Dozer Blade Hydraulics (Floating) (002530 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F001195	1	Hydraulic Hose	LGTH = 2000 mm
2	F024344	1	Hydraulic Hose	LGTH = 650 mm
3	F005060	4	Fitting	-
4	F003590	4	LOCK NUT	-
5	F012534	1	Fitting	-
6	F005063	1	NIPPLE	-
7	F005055	1	NIPPLE	-
8	F055060	1	Hydraulic Hose	LGTH = 350 mm
9	F012592	6	Elbow Fitting	-
10	F054374	1	HOSE-ASSY	LGTH = 430 mm
11	F070226	1	Valve Stack	Counter Balance Valve, COMPONENTS ON SEPARATE PAGE
12	F630170	1	Plate	-
13	19M9683	2	Cap Screw	M8 X 25
14	F026843	2	Fitting	-
15	F024301	1	CONNECTOR	-
16	F067200	4	Hydraulic Hose	LGTH = 950 mm
17	F045434	2	Hydraulic Hose	LGTH = 750 mm
18	F633229	1	Pipe	-
19	F633228	1	Pipe	-
20	F012507	1	Fitting	-
21	F007730	4	Hose Support	-
22	F052869	4	Hose Clamp	-
23	F024301	1	CONNECTOR	-
24	F053706	1	Electrical Connector Assy	-
24	F053707	1	Socket Outlet	-
24	F045798	1	Pin	-
25	F617321	1	CABLE	NLA
26	F051025	2	Hose Guard	-
27	19M9647	4	Cap Screw	M12 X 25
28	F026126	4	Hose Support	-
29	F024344	1	Hydraulic Hose	LGTH = 650 mm
30	F044885	2	Hydraulic Hose	LGTH = 400 mm
31	F024599	1	Elbow Fitting	-
32	F005057	6	Fitting	-
33	F062778	1	Hydraulic Restrictor	-
34	F062777	1	Mounting Parts	-
35	F008262	2	Lock Washer	-
36	F026605	1	Tee Fitting	-
37	F005092	1	Sleeve Fitting	-
38	24M7509	3	Washer	8.400 X 16 X 1.600 mm
39	19M9682	3	Cap Screw	M8 X 20
40	F005074	1	Tee Fitting	-
41	F005046	2	Elbow Fitting	-
42	F005077	1	Fitting	-
43	F005078	1	Reducer	-
44	F010099	1	Nut	-
45	F005102	1	T-CONNECTION	-
46	F027851	1	ELBOW FITTING	-
47	F630168	1	Bracket	-
48	F005059	2	Fitting	-
49	F024605	1	Fitting	-
50	F045804	1	Plug	-
51	19M9570	1	Screw	M12 X 25
52	19M9641	2	Cap Screw	M10 X 35
53	24M7483	2	Washer	11 X 34 X 3 mm
54	F003589	2	LOCK NUT	-
55	F627413	1	Plate	-
56	F062985	1	Valve Stack	Proportional Dozer Valve, COMPONENTS ON SEPARATE PAGE
57	F013725	2	Elbow Fitting	-
58	F005333	1	Tie Band	-
59	F645513	1	Wiring Harness	-
60	F066255	1	Self-Operating Valve	INCLUDES F066257
60	F066257	1	Seat Kit	Not Illustrated
61	F066254	1	Self-Operating Valve	INCLUDES F066256
61	F066256	1	Seal Kit	Not Illustrated
62	F052694	1	Electrical Connector Assy	-
62	F052695	1	Lock	-
62	F047798	2	TERMINAL	-
63	F052688	1	Lock	-
63	F055139	2	Socket	-
63	F052686	1	Electrical Connector Assy	-
64	F011332	1	Electrical Connector Assy	-
64	F005267	1	PIN	-
65	F011415	1	Electrical Connector Assy	-
66	F005398	1	Elec. Connector Housing	-
67	F037112	1	Socket	-
68	F005290	1	RELAY	24 V
69	F011332	1	Electrical Connector Assy	-
69	F005267	1	PIN	-

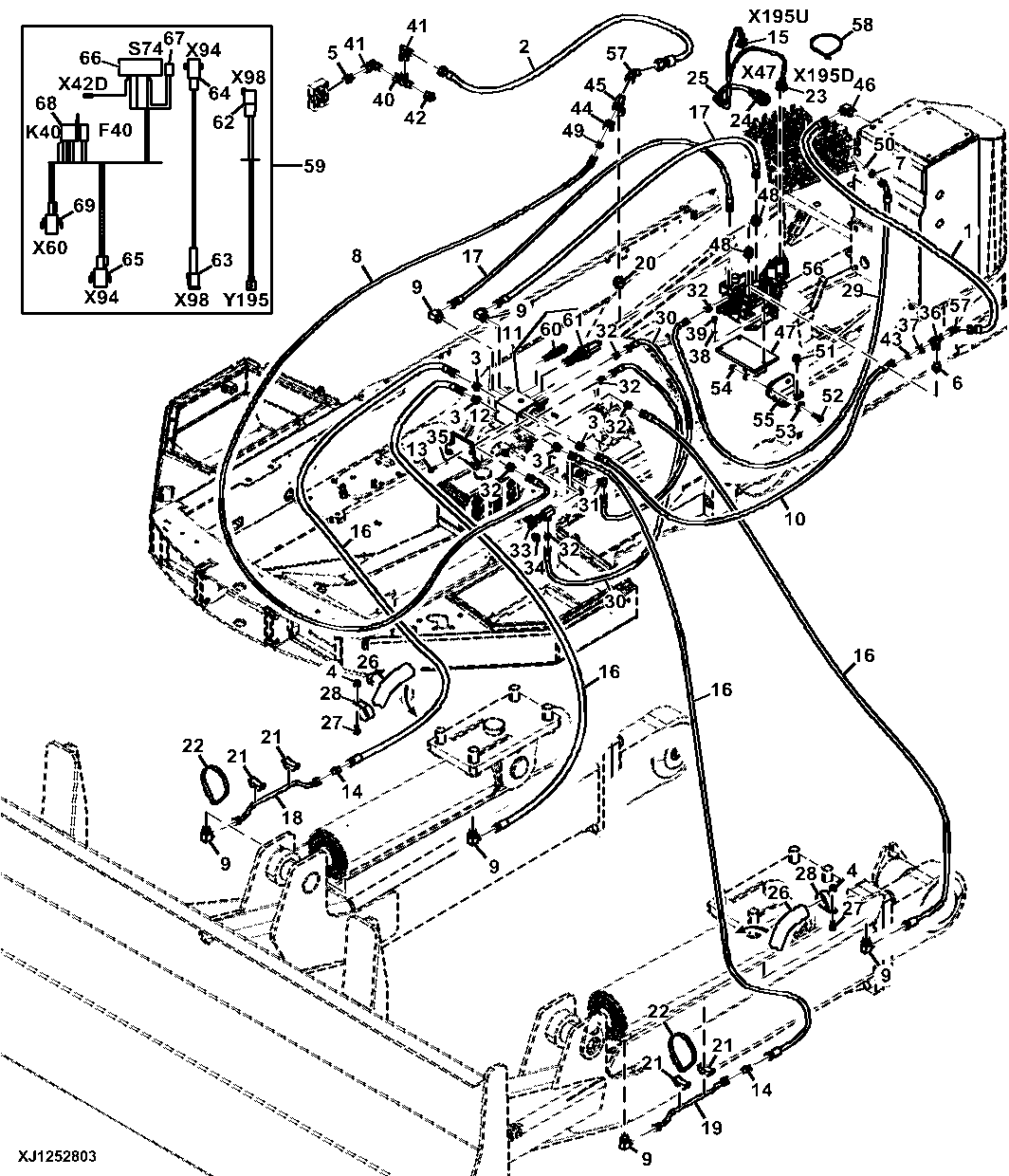

Proportional Dozer Blade Hydraulics (Floating) (002530 - )
