Proportional Dozer Blade Hydraulics ( - 002529)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F001195	1	Hydraulic Hose	LGTH = 2000 mm
2	F024344	1	Hydraulic Hose	LGTH = 650 mm
3	F005060	4	Fitting	-
4	F003590	4	LOCK NUT	-
5	F012534	1	Fitting	-
6	F003589	2	LOCK NUT	-
7	F627413	1	Plate	-
8	19M9570	2	Screw	M12 X 25
9	F012592	4	Elbow Fitting	-
10	F005059	2	Fitting	-
11	F064799	1	VALVE STACK	Counter Balance Valve, COMPONENTS ON SEPARATE PAGE
12	F630170	1	Plate	-
13	19M9683	2	Cap Screw	M8 X 25
14	F026843	2	Fitting	-
15	F024301	1	CONNECTOR	-
16	F067200	4	Hydraulic Hose	LGTH = 950 mm
17	F062993	2	Hydraulic Hose	LGTH = 450 mm
18	F633229	1	Pipe	-
19	F633228	1	Pipe	-
20	F005333	1	Tie Band	-
21	F007730	4	Hose Support	-
22	F052869	4	Hose Clamp	-
23	F024301	1	CONNECTOR	-
24	F053706	1	Electrical Connector Assy	-
25	F617321	1	CABLE	NLA
26	F051025	2	Hose Guard	-
27	19M9647	4	Cap Screw	M12 X 25
28	F026126	4	Hose Support	-
29	F005055	1	NIPPLE	-
30	F045434	2	Hydraulic Hose	LGTH = 750 mm
31	F024599	1	Elbow Fitting	-
32	F005057	4	Fitting	-
33	F062778	1	Hydraulic Restrictor	-
34	F062777	1	Mounting Parts	-
35	F008262	2	Lock Washer	-
36	F066255	1	Self-Operating Valve	INCLUDES F066257
36	F066257	1	Seat Kit	Not Illustrated
37	24M7509	3	Washer	8.400 X 16 X 1.600 mm
38	F066254	1	Self-Operating Valve	INCLUDES F066256
38	F066256	1	Seal Kit	Not Illustrated
39	19M9682	3	Cap Screw	M8 X 20
40	F005074	1	Tee Fitting	-
41	F005077	1	Fitting	-
42	F011482	1	Fitting	-
43	F005046	1	Elbow Fitting	-
44	F012507	1	Fitting	-
45	F005063	1	NIPPLE	-
46	F062985	1	Valve Stack	Proportional Dozer Valve, COMPONENTS ON SEPARATE PAGE
47	F630168	1	Bracket	-
48	F005059	2	Fitting	-
49	F027851	1	ELBOW FITTING	-
50	F045804	1	Plug	-
51	F013533	1	Hydraulic Hose	LGTH = 1400 mm
52	19M9641	2	Cap Screw	M10 X 35
53	24M7483	2	Washer	11 X 34 X 3 mm

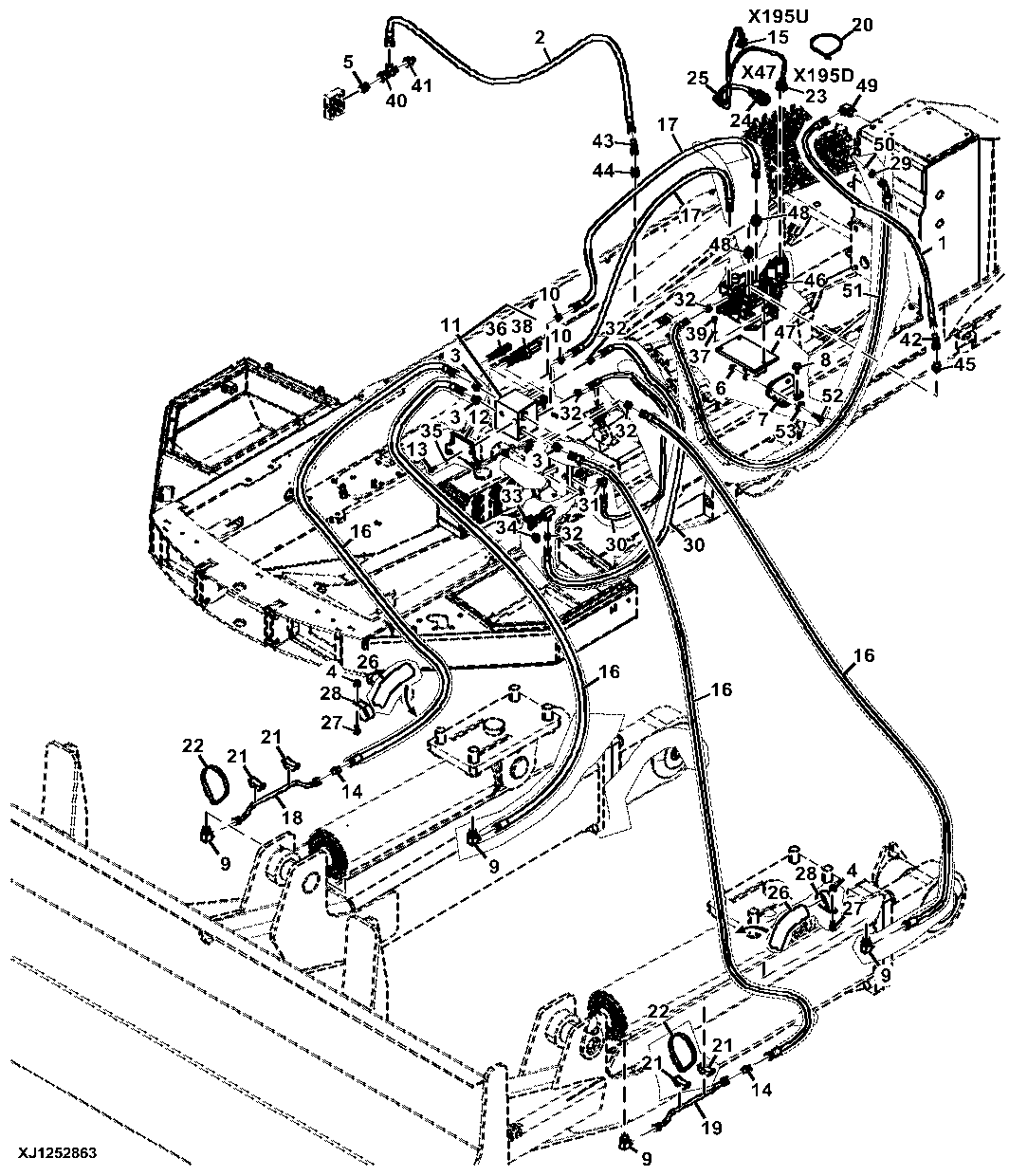

Proportional Dozer Blade Hydraulics ( - 002529)
