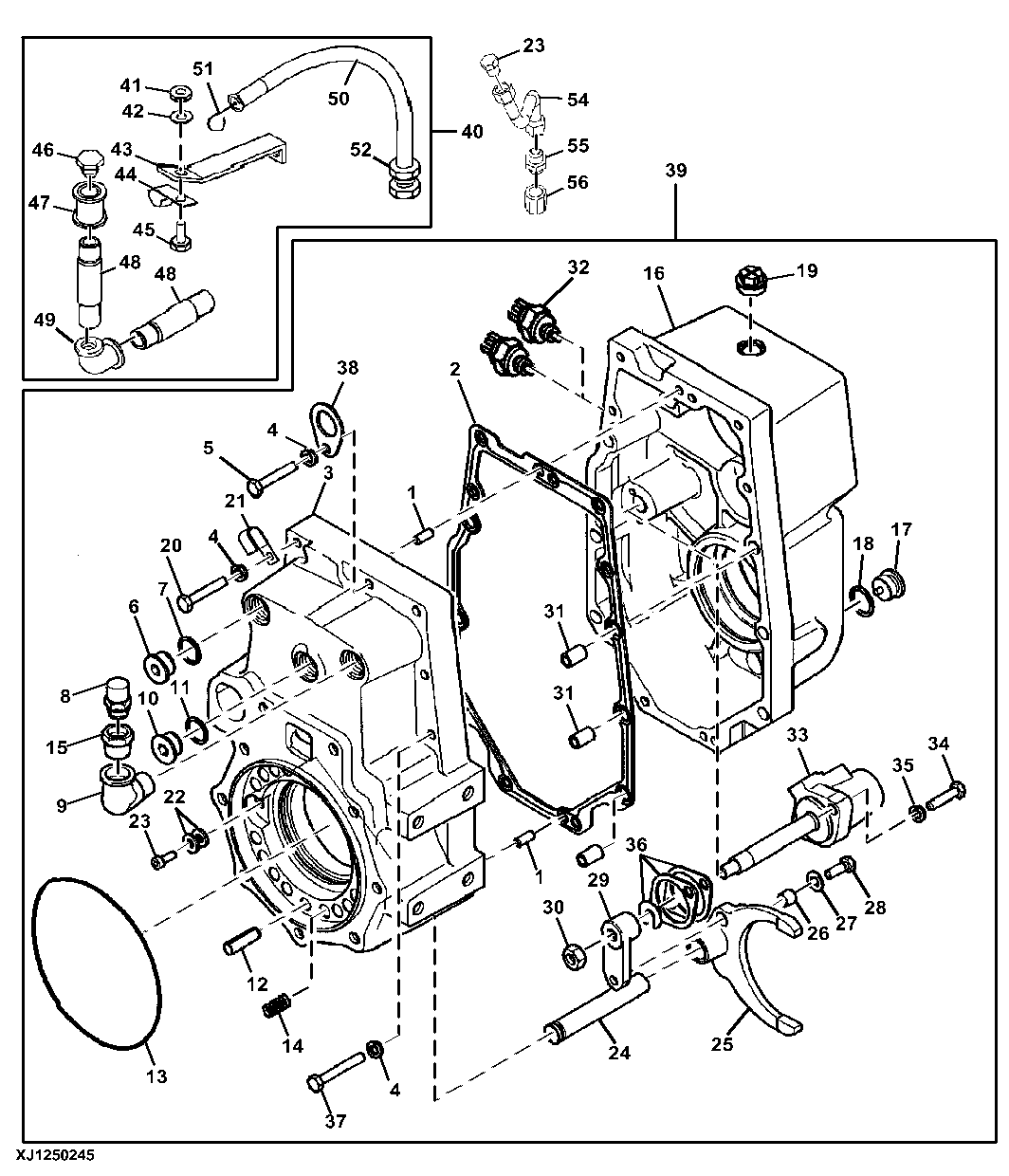

Housing, Transmission, LOK 87 / LOK 124

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F009472	2	PIN	-
2	F058327	1	Gasket	TK = 0.75 mm
3	F065080	1	Housing	-
4	F003346	13	SPRING WASHER	-
5	19M9588	3	Cap Screw	M10 X 60, SUB FOR F003484
6	F025332	1	Plug	-
7	F018108	1	Washer	-
8	F025304	1	Breather	R1/2” 0.3 bar
9	F020833	1	ELBOW	-
10	F025332	1	Plug	-
11	F018108	1	Washer	-
12	F020834	2	Spring Pin	-
13	F004720	1	O-Ring	-
14	F010166	16	Spring	-
15	F040529	1	Fitting	-
16	F065882	1	HOUSING	NLA; ORDER F069088
16	F069088	1	HOUSING	-
17	F025228	1	Plug	-
18	F018108	1	Washer	-
19	-	2	Part 20	-
20	-	4	Part 21	-
21	-	4	Part 22	-
22	F034633	2	Washer	-
23	F025191	1	Self-Locking Screw	-
24	F043663	1	Shaft	-
25	F066372	1	Lever	-
26	F055519	1	Sleeve	-
27	F025363	1	Washer	-
28	F017084	1	SCREW	-
29	F055516	1	Lever	-
30	F023666	1	Nut	-
31	F056821	6	Pin	-
32	F065818	2	Switch	Limit
33	F065883	1	Cylinder	COMPONENTS ON SEPARATE PAGE
33	F054434	1	CYLINDER	COMPONENTS ON SEPARATE PAGE
34	F045793	2	SCREW	-
35	F003346	2	SPRING WASHER	-
36	F058882	1	Shim Kit	-
36	F073895	1	Shim	-
37	F011420	6	SCREW	-
38	F060945	1	Lug	-
39	F065545	1	Transmission	LOK 87, Four Wheel
39	F072199	1	Transmission	LOK 87, Four Wheel
39	F688781	1	Transmission	LOK 87, Four Wheel
39	F065546	1	Transmission	LOK 124
39	F072200	1	Transmission	LOK 124
39	F693401	1	Transmission	LOK 124
40	F041042	1	Base Kit	-
41	F017289	1	NUT	-
42	F011430	1	Lock Washer	-
43	F046088	1	HOLDER	-
44	F046089	1	HOLDER	-
45	F026682	1	Screw	-
46	F003385	1	PLUG	-
47	F046091	1	MUFF	-
48	F046090	2	CONNECTION	-
49	F040564	1	ELBOW CONNECTION	NLA
50	F046087	1	TUBE	-
51	F040563	1	DIPSTICK	-
52	F046086	1	TUBE	-
53	F023582	1	Plug	-
54	F625027	1	Pipe	-
55	F005063	1	NIPPLE	-
56	F022783	1	CONNECTION	-

Housing, Transmission, LOK 87 / LOK 124

Нет текстового описания
