Открытый узел

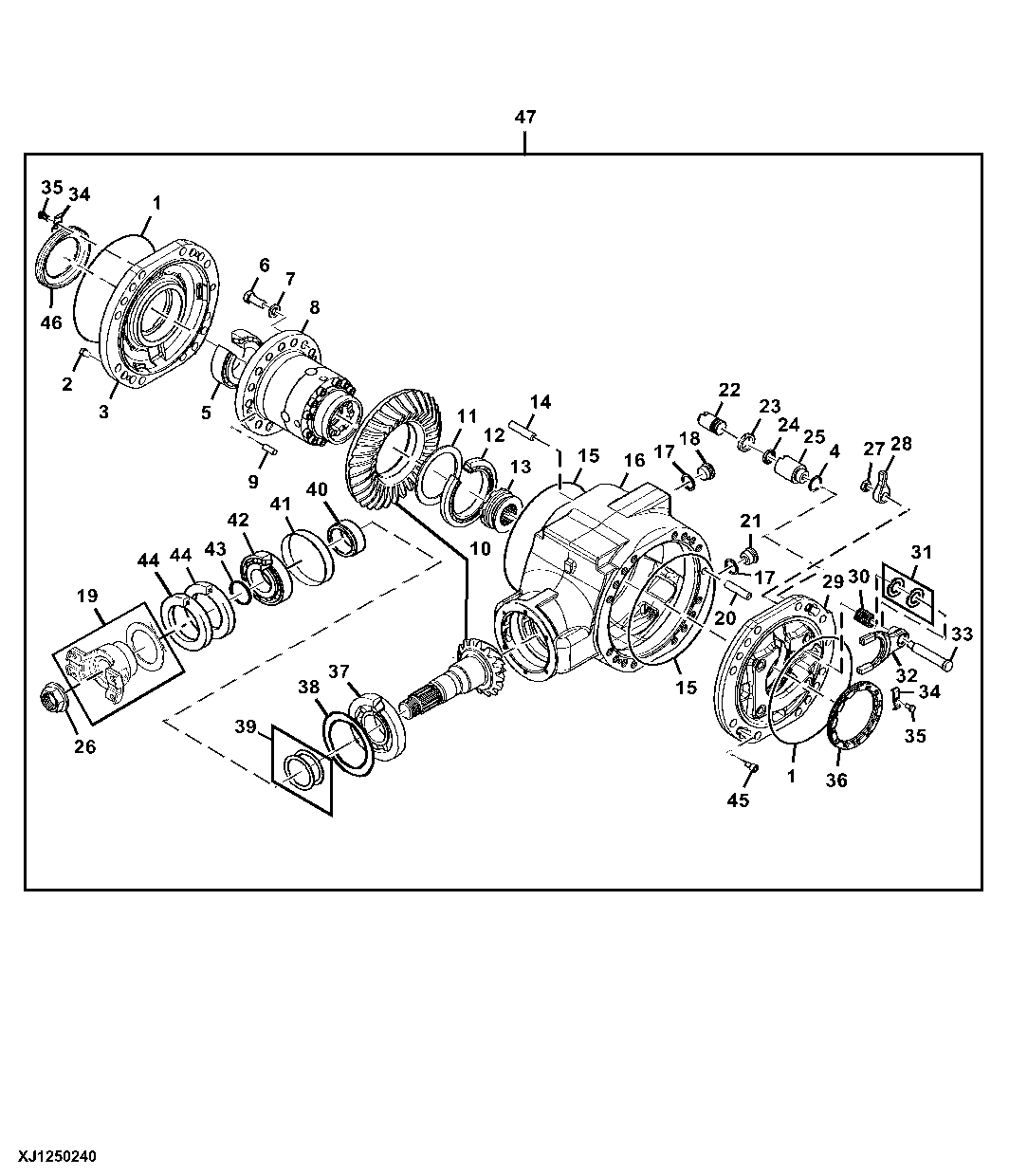

Differential, 6 Wheel Front, LOK 115

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F025234	2	O-Ring	-
2	F004654	2	SCREW	-
3	F036013	1	FLANGE	-
4	F009465	1	Sealing Ring	-
5	F035796	1	Tapered Roller Bearing	-
6	F011154	16	SCREW	-
7	F009375	16	Washer	-
8	F071094	1	Housing	Differential Housing, COMPONENTS ON SEPARATE PAGE
9	F004738	2	Pin	-
10	F056207	1	Ring Gear And Pinion	Z = 31 / 6
11	F004751	1	Snap Ring	-
12	F004688	1	Tapered Roller Bearing	-
13	F004977	1	Snap Ring	-
14	F004740	5	PIN	-
15	F003308	2	O-Ring	-
16	F671048	1	Differential W/Axle Housing	SUB FOR F035797
17	F018108	2	Washer	-
18	F025332	1	Plug	-
19	F011442	1	Shaft	-
20	F035794	4	Dowel Pin	-
21	F025228	1	Plug	-
22	F050812	1	Piston	-
23	F050813	1	Seal	-
24	F009469	1	Seal	-
25	F058934	1	Cylinder	-
26	F021149	1	Nut	-
27	F023666	1	Nut	-
28	F064584	1	Locking Collar	-
29	F043649	1	Flange	-
30	F009394	1	Spring	-
31	F056215	1	Shim	TK = 3.0 mm
31	F009383	1	Shim	TK = 2.5 mm
31	F009378	1	Shim	TK = 1.5 mm
31	F045259	1	Shim Kit	-
31	F009380	1	Shim	TK = 2.0 mm
32	F009430	1	Fork	-
33	F064585	1	Pin Fastener	-
34	F004891	2	Lock Washer	-
35	F004638	2	Screw	-
36	F004814	1	Nut	-
37	F009444	1	BEARING	-
38	F009386	1	RING	TK = 2.5 mm
38	F009381	1	RING	TK = 3.0 mm
38	F009384	1	RING	TK = 2.75 mm
38	F045261	1	SHIM KIT	-
39	F023675	1	Shim	TK = 1.12 mm
39	F023667	1	Shim	TK = 1.44 mm
39	F023668	1	Shim	TK = 1.4 mm
39	F023669	1	Shim	TK = 1.36 mm
39	F023670	1	Shim	TK = 1.32 mm
39	F023671	1	Shim	TK = 1.28 mm
39	F023672	1	Shim	TK = 1.24 mm
39	F023673	1	Shim	TK = 1.2 mm
39	F023674	1	Shim	TK = 1.16 mm
39	F023676	1	Shim	TK = 1.08 mm
39	F023677	1	Shim	TK = 1.04 mm
39	F023678	1	Shim	TK = 1.0 mm
39	F023679	1	Shim	TK = 0.96 mm
39	F045262	1	Shim Kit	-
40	F023659	1	SPACER RING	-
41	F065881	1	Seal	-
42	F009443	1	BEARING	-
43	F011429	1	O-Ring	-
44	F011427	2	Seal	-
45	19M9703	1	Screw	M10 X 20, SUB FOR F003415
46	F034624	1	Nut	-
47	F065084	1	DIFFERENTIAL	-
48	F071093	1	Seal	Not Illustrated

Differential, 6 Wheel Front, LOK 115
