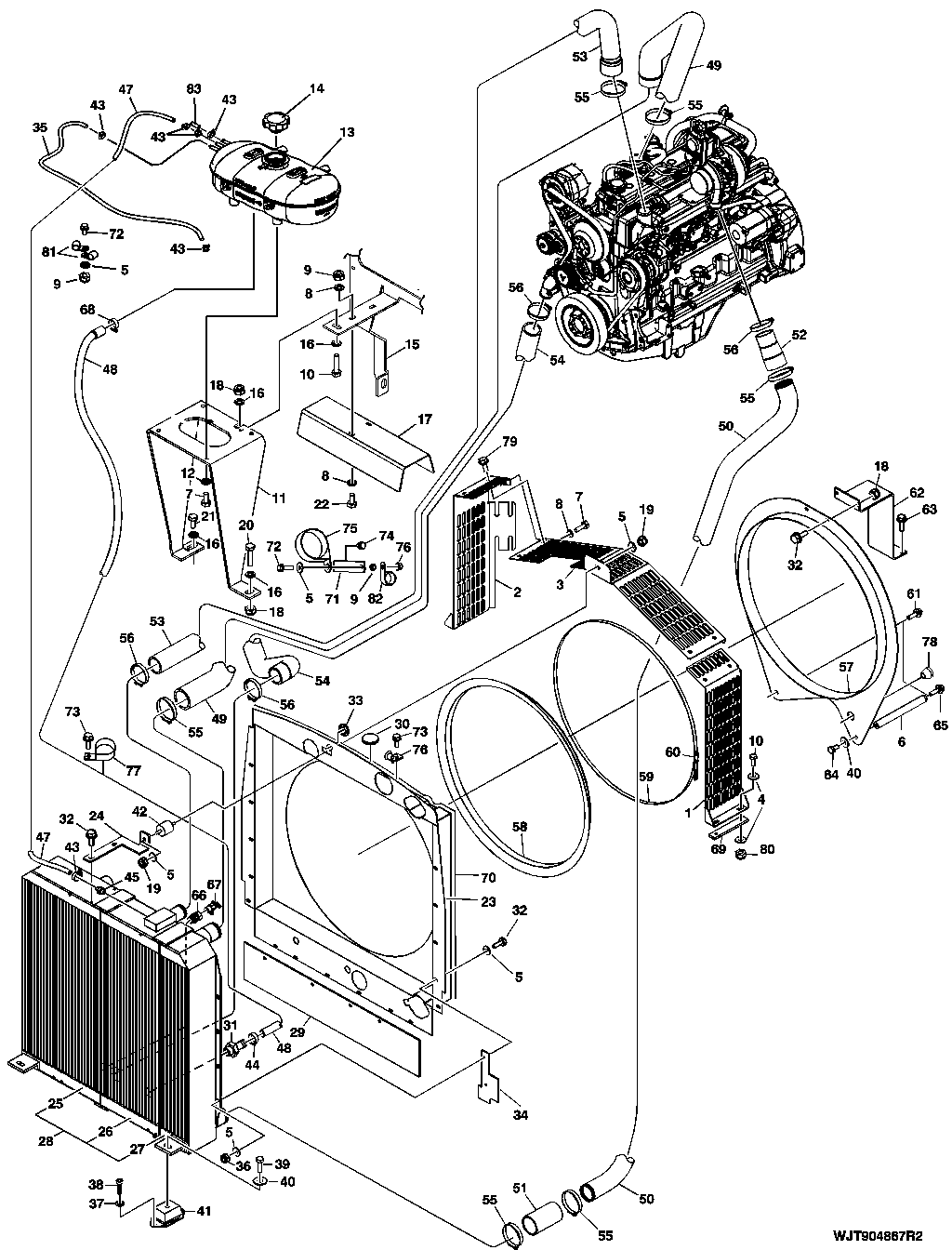

Cooling System Hoses and Fittings (002898 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F640391	1	Seal	LGTH = 1100 mm, Mounting between Cooler Elements
1	F635173	1	Plate	-
2	F635172	1	Plate	-
3	F634483	1	Plate	-
4	24M7489	4	Washer	10.500 X 30 X 2.500 mm
5	24M7508	21	Washer	8.400 X 24 X 2 mm
6	F635036	2	Bar	-
7	19M9681	4	Cap Screw	M8 X 16
8	24M7509	4	Washer	8.400 X 16 X 1.600 mm
9	14M7601	2	Flange Nut	M8
10	19M9698	5	Screw	M10 X 25
11	F638386	1	Bracket	-
12	F008262	1	Lock Washer	-
13	AT322981	1	Tank	3 Return Ports, Coolant Level Sensor is Molded into the Tank
14	AT310335	1	Filler Cap	-
15	-	1	Part 16	COMPONENTS ON SEPARATE PAGE
16	F005551	4	Lock Washer	-
17	F639037	1	Plate	-
18	14M7602	4	Flange Nut	M10
19	F003587	2	LOCK NUT	-
20	19M9642	1	Cap Screw	M10 X 40
21	19M9638	1	Cap Screw	M10 X 20
22	19M9568	2	Screw	M8 X 20
23	F634490	1	Shroud	-
24	F634473	1	Plate	-
25	F070635	1	Oil Cooler	-
26	F070634	1	Radiator	-
27	F070633	1	Air Cooler	-
28	F633517	1	Radiator	INCLUDES F070635, F070634 AND F070633
29	F624792	1	Plate	-
30	F066356	1	Grommet	-
31	F070113	1	Fitting	-
32	19M9568	16	Screw	M8 X 20
33	F017523	1	Grommet	-
34	F645149	2	Plate	-
35	-	1	Part 36	MAKE FROM F715367, CTL 550 mm
36	F003587	14	LOCK NUT	M8
37	24M7488	4	Washer	10.500 X 20 X 2 mm
38	19M9637	4	Cap Screw	M10 X 16
39	19M9649	2	Cap Screw	M12 X 35
40	24M7493	4	Washer	13 X 37 X 3 mm
41	F048323	2	Torsional Damper	-
42	F040593	1	Torsional Damper	-
43	F003668	6	Hose Clamp	-
44	F003672	1	Hose Clamp	-
45	F024668	1	NIPPLE	-
47	-	1	Part 47	CTL 1000 mm, MF F002402
47	F645319	1	Choke	-
48	F639101	1	Hose	-
49	F634533	1	Hose	-
50	F634532	1	Pipe	-
51	F625338	1	Hose	-
52	F619954	1	Hose	-
53	F634489	1	Hose	-
54	F634524	1	Hose	-
55	F062673	6	Hose Clamp	NLA; ORDER AH170895
55	AH170895	6	Clamp	-
56	F062672	4	Hose Clamp	-
57	F635026	1	Ring	-
58	F635037	1	Sealing Ring	-
59	F635244	1	Band	-
60	F069206	1	Buckle	-
61	F051168	1	SCREW	-
62	F634488	1	Support	-
63	F062120	2	Screw	-
64	19M9646	2	Cap Screw	M12 X 20
65	19M10032	1	Screw	M12 X 35
66	F065144	1	Adapter Fitting	-
67	F057660	1	Drain Valve	-
68	F042792	1	HOSE CLAMP	-
69	F639245	2	Plate	-
70	F043143	1	Weatherstrip	LGTH = 2300 mm
71	F623261	1	Plate	-
72	19M9447	2	Screw	M8 X 30
73	19M9566	2	Screw	M6 X 12
74	19M9446	1	Screw	M8 X 12
75	F010968	1	Hose Support	-
76	F010517	1	Hose Support	-
77	F052822	1	Hose Support	-
78	F039340	1	Grommet	-
79	19M9567	6	Screw	M8 X 16
80	F003588	4	LOCK NUT	-
81	F046452	2	Hose Support	-
82	F004422	1	Hose Support	-
83	F646115	1	Grip	-
