Открытый узел

Axle Beam, 8 Wheel Front / Rear, HD, LOK 167

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F064237	1	Planet Pinion Carrier	-
2	F064238	1	Planet Pinion Carrier	-
3	F009375	4	Washer	-
4	F054486	4	Bolt	-
5	F035806	8	Lock Washer	-
6	F064239	8	Gear	Z= 23
7	F075461	2	Planetary Assembly	SUB FOR F064236
8	F075402	8	Bearing	SUB FOR F054702
9	F064240	1	Thrust Washer	-
10	F054491	4	Shear Pin	-
11	F064241	4	Shaft	-
12	F064485	15	Screw	-
13	F025333	16	Washer	-
14	F009489	1	Breather	-
15	F062991	1	HOUSING	-
16	F059545	2	Washer	-
17	F072092	12	Brake Actuating Disk	-
18	F025332	2	Plug	-
19	F018108	2	Washer	-
20	F025324	2	Bolt	-
21	F025329	8	Pin	-
22	F025330	4	Lock Washer	-
23	F067146	2	Shaft	Z= 18
24	F035853	2	Seal	-
25	34M7070	1	Spring Pin	10 X 45 mm
26	F677854	2	Cylinder	NLA; ORDER F701156; SUB FOR F066855 OR F071960; COMPONENTS ON SEPARATE PAGE
26	F701156	2	Brake	COMPONENTS ON SEPARATE PAGE
27	F060152	2	Disk Brake Caliper Assy	-
28	F038340	2	Self-Locking Screw	-
29	F045037	1	Dipstick	LGTH = 55 mm
30	F045036	1	Fitting	-
31	F018108	1	Washer	-
32	F025304	1	Breather	R1/2�? 0.3 bar
33	F040529	1	Fitting	-
34	F062992	1	HOUSING	-
35	F003730	4	GREASE NIPPLE	NLA; ORDER 58M5575
35	58M5575	4	Lubrication Fitting	-
36	F065070	2	Bearing	-
37	F065071	48	Self-Locking Screw	-
38	F025333	16	Washer	-
39	F064485	15	Screw	-
40	F035856	2	O-Ring	-
41	F060868	2	SEAL	-
42	F056912	12	Brake Disk	-
43	F054485	32	Self-Locking Screw	-
44	F047352	8	Plug	-
45	F059546	2	Seal	-
46	F434620	2	Screw	-
47	F064243	2	Fitting	-
48	F075462	1	Stud Kit	SUB FOR F066373

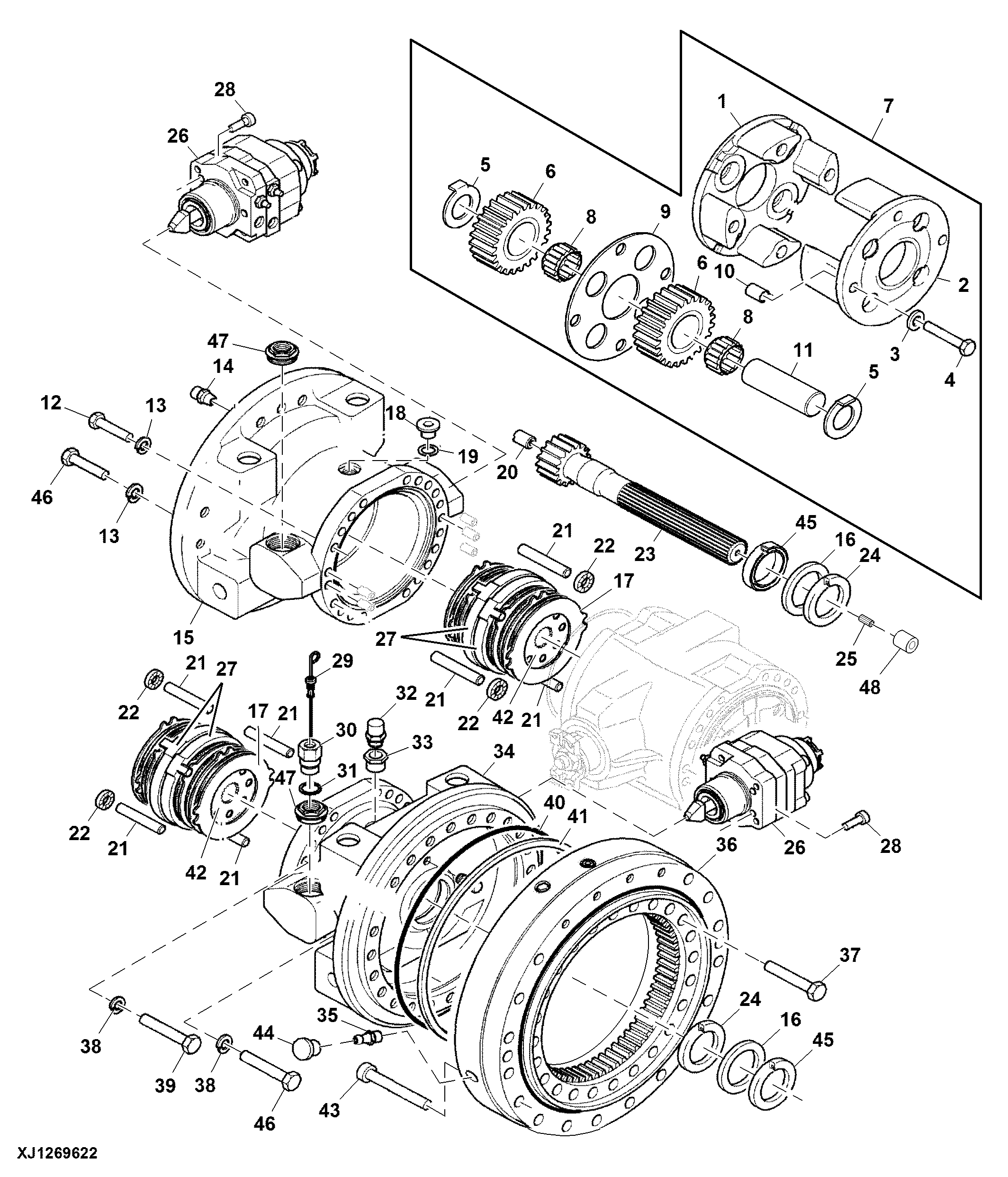

Axle Beam, 8 Wheel Front / Rear, HD, LOK 167

Нет текстового описания
