Transmission Suction Line and Implement Pump Line (411647 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LVU13421	1	Clamp	-
2	LVU13241	1	Compression Spring	-
3	M134346	1	Manifold	Engine Pump Drive
4	LVU13422	1	Clamp	-
5	LVU13424	1	Clamp	-
6	19M7786	1	Screw	M10 X 30, (HS, HEAD MARKED 10.9)
7	51M7045	1	O-Ring	19.300 X 2.200 mm
8	M135613	2	Hose Clamp	-
9	T77857	1	O-Ring	-
10	38H5071	1	Elbow Fitting	Auxillary Pump to PTO Supply
11	51M7043	1	O-Ring	15.300 X 2.200 mm
12	LVA11408	1	Oil Line	Auxillary Pump to PTO Supply
13	T77932	1	O-Ring	-
14	38H5004	1	Adapter Fitting	PTO Valve
15	61M5004	2	Adapter Fitting	-
16	TY22468	6	Clamp	-
17	M132693	1	Hose	Transmission outlet to Suction Pipe
18	LVA14026	1	Tube	Transmission Outlet to Filter
19	LVA11348	1	Sensor	-
20	RE45864	1	Oil Filter	-
21	LVU13601	2	Packing	-
22	-	1	Part 22	-
23	LVA10449	1	Filter Head	-
24	19M7789	2	Screw	M12 X 30, (HS, HEAD MARKED 10.9)
25	LVU16102	1	Bracket	-
26	19M7785	8	Screw	M10 X 25, (HS, HEAD MARKED 10.9)
27	LVU16792	1	Tube	-
28	14M7400	1	Lock Nut	M10
29	LVU14558	2	Hose	-
30	LVU16793	1	Tube	-
31	LVU13540	2	Disk	Direct Drive
32	24M7028	6	Washer	10.500 X 20 X 2 mm
33	LVU13389	1	Plate	-
34	19M7938	2	Cap Screw	M10 X 20, (HS, HEAD MARKED 10.9)
35	19M7881	4	Screw	M8 X 20, (HS, HEAD MARKED 10.9)
36	LVU13391	1	Splined Coupling	-
37	19M8736	2	Screw	M6 X 20, (HS, HEAD MARKED 10.9)
38	24M7055	2	Washer	8.400 X 16 X 1.600 mm
39	14M7273	2	Nut	M8
40	19M8324	2	Cap Screw	M10 X 16, (HS, HEAD MARKED 10.9)
41	19M7835	4	Screw	M10 X 35, (HS, HEAD MARKED 10.9)
42	19M7550	2	Cap Screw	M10 X 35, (HS, HEAD MARKED 10.9)
43	LVU10485	1	Plate	-
44	14M7296	2	Flange Nut	M10
45	14M7274	2	Nut	M10
46	LVU13538	1	Hub	5/8-11 Spline
47	LVA10240	1	Hydraulic Pump	Main Implement NLA; ORDER LVA15347
47	LVA15347	1	Hydraulic Pump	-
47	LVA12474	1	Seal Kit	-
47	LVA12475	1	Bearing Kit	-
48	19H2642	4	Cap Screw	7/16" X 4-3/4"
49	24H1322	4	Washer	29/64" X 13/16" X 0.065"
50	LVU17349	1	Suction Hose	-
51	T162675	2	Clamp	-
52	LVU16812	1	Angle	-
53	19M7872	1	Cap Screw	M12 X 25, (HS, HEAD MARKED 10.9)

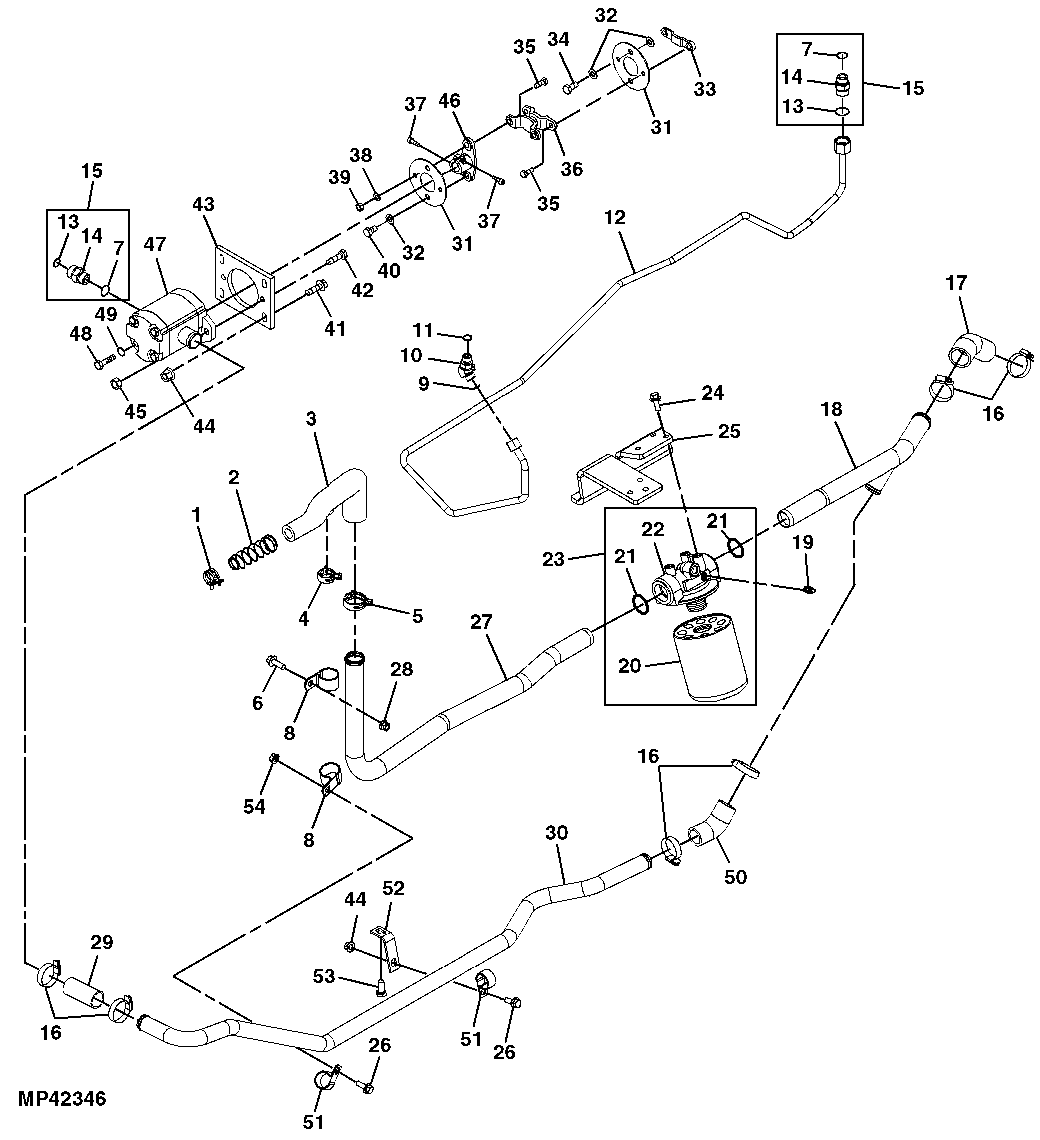

Transmission Suction Line and Implement Pump Line (411647 - )
