SUBFRAME ASSEMBLY AND MISCELLANEOUS PARTS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

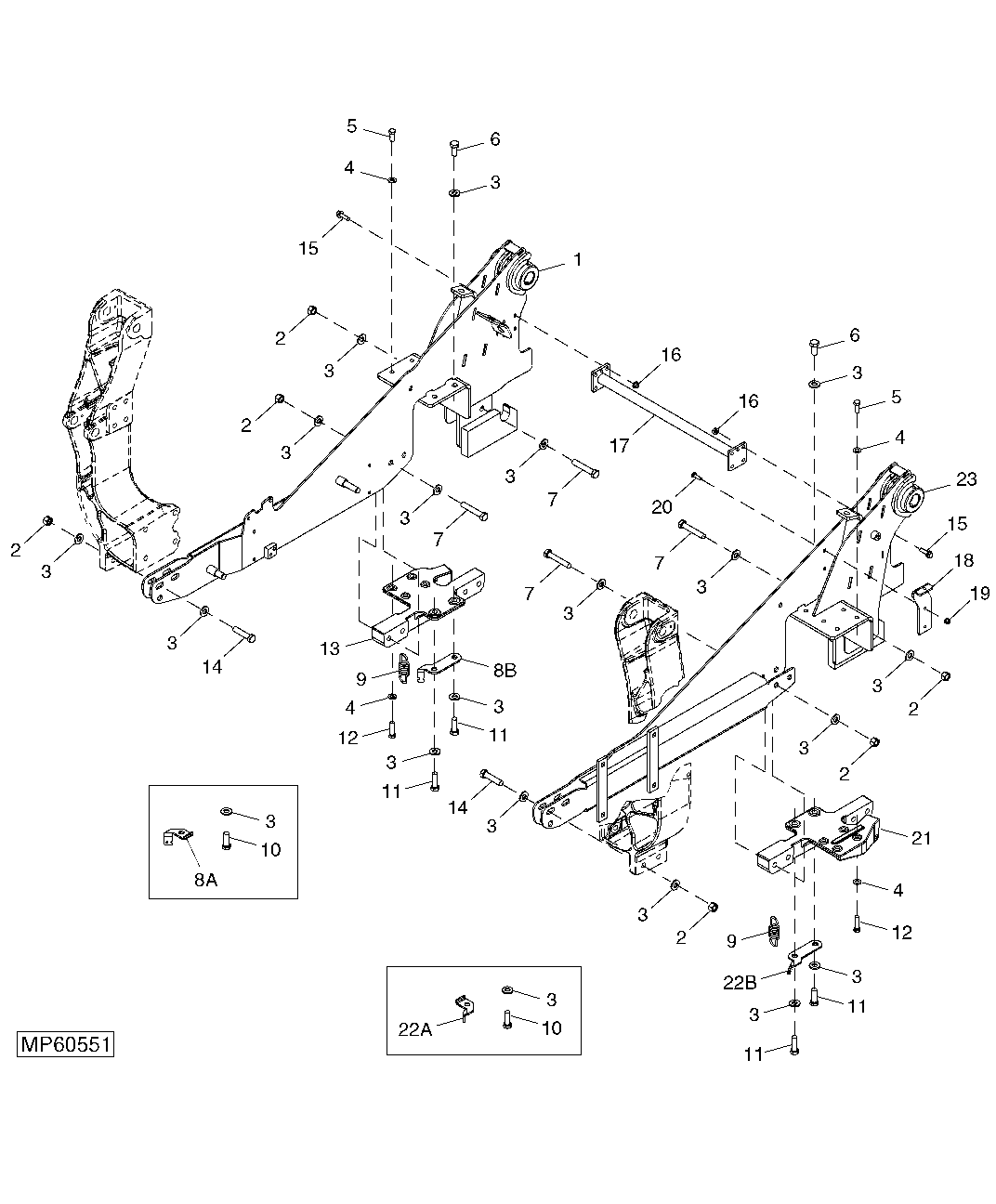

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AW31214	1	Frame	RH
2	14M7276	12	Nut	M16
3	24M7241	36	Washer	17 X 34 X 4 mm, HARDENED, (USE WITH LVU12701 AND LVU12702)
3	24M7241	38	Washer	17 X 34 X 4 mm, HARDENED, (USE WITH LVU16367 AND LVU16368)
4	24M7429	20	Washer	13 X 24 X 2.500 mm, HARDENED
5	19M8011	12	Cap Screw	M12 X 30, (HS, HEAD MARKED 10.9)
6	19M8035	4	Cap Screw	M16 X 35, (HS, HEAD MARKED 10.9)
7	19M8485	8	Cap Screw	M16 X 90, (HS, HEAD MARKED 10.9)
9	LVU10076	2	Spring	-
10	19M7489	2	Cap Screw	M16 X 45, (HS, HEAD MARKED 10.9)
11	19M7409	4	Cap Screw	M16 X 50, (HS, HEAD MARKED 10.9), (USE WITH LVU16367 AND LVU16368)
11	19M7409	2	Cap Screw	M16 X 50, (HS, HEAD MARKED 10.9), (USE WITH LVU12701 AND LVU12702)
12	19M7496	8	Cap Screw	M12 X 45, (HS, HEAD MARKED 10.9)
13	W48786	1	Brace	RH
14	19M7719	4	Cap Screw	M16 X 70, (HS, HEAD MARKED 10.9)
15	19M7835	8	Screw	M10 X 35, (HS, HEAD MARKED 10.9)
16	14M7296	8	Flange Nut	M10
17	AW30856	1	Frame	-
18	LVU13051	1	Bracket	-
19	14M7396	2	Lock Nut	M8
20	03M7186	2	Bolt	M8 X 30
21	W48785	1	Brace	LH
23	AW31213	1	Frame	LH
..	R76477	2	Tie Band	(SUB FOR R44302, THIS APPLICATION)
8A	LVU12702	1	Bracket	LH, BRAKE SPRING (SUB LVU16368, (2) 19M7409 AND (2) 24M7241)
8B	LVU16368	1	Bracket	LH, BRAKE SPRING
22A	LVU12701	1	Bracket	RH, BRAKE SPRING, (SUB LVU16367, (2) 19M7409 AND (2) 24M7241)
22B	LVU16367	1	Bracket	RH, BRAKE SPRING
