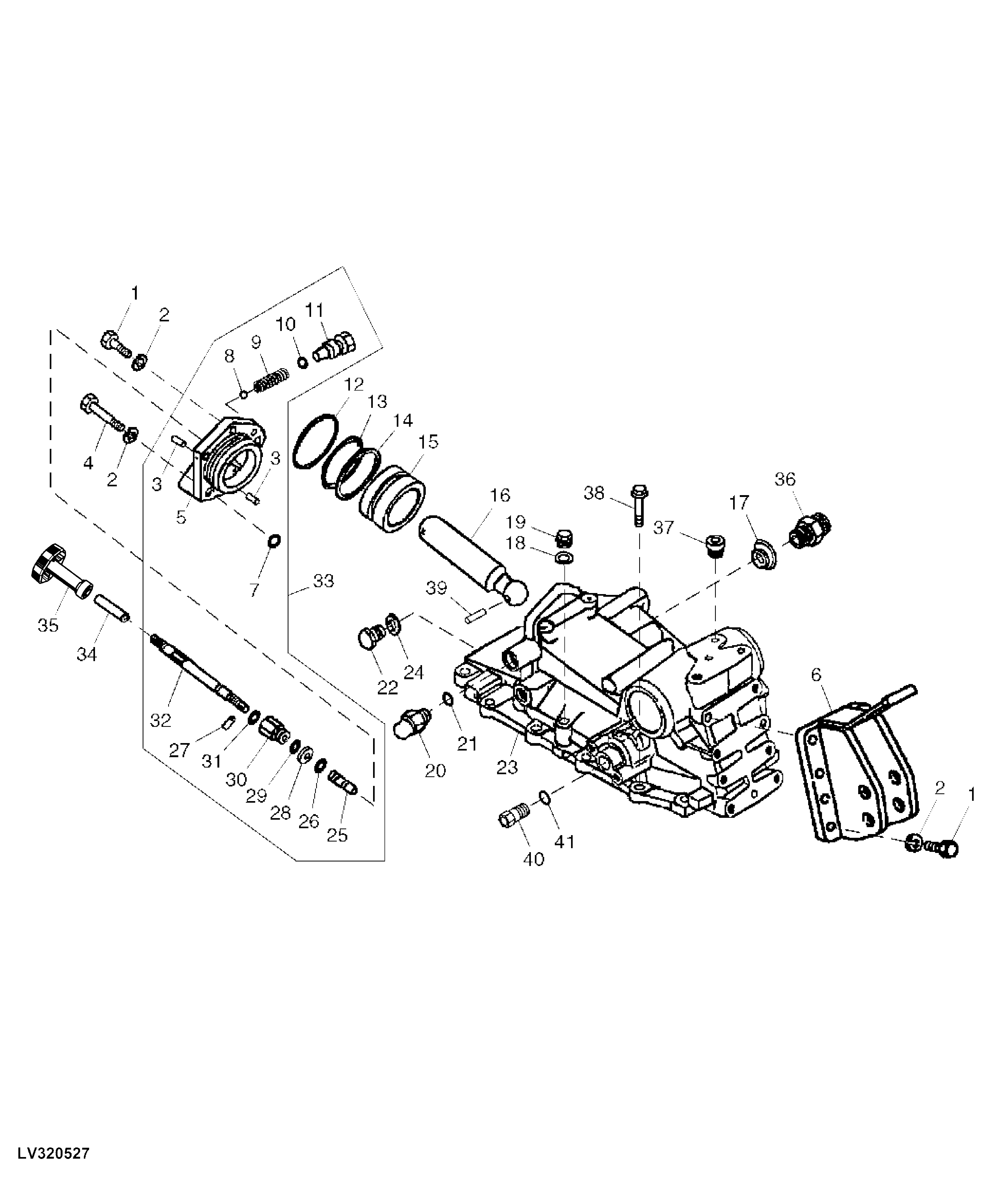

Rockshaft Cylinder Head and Piston ( - 311232)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7403	10	Cap Screw	M12 X 35, (HS, HEAD MARKED 10.9)
2	12M7067	13	Lock Washer	12 mm
3	M136558	3	Plug	-
4	19M7363	3	Cap Screw	M12 X 60, (HS, HEAD MARKED 10.9)
5	M137387	1	Cylinder Head	-
6	M136606	1	Hinge	FIXED CENTER LINK
7	L62893	1	O-Ring	-
8	L38729	1	Ball	(SUB FOR R42849)
9	M136640	1	Spring	-
10	R73599	1	O-Ring	-
11	M136638	1	Plug	-
11	M136637	1	Plug	CAP
12	M4236T	1	O-Ring	78.969 X 3.531 mm (3-7/64" X 0.139")
13	LVA13678	1	Sealing Trim	SLIP, (SUB FOR M136556)
14	LVA13678	1	Sealing Trim	(SUB FOR M136555)
15	M136554	1	Piston	-
16	M136553	1	Rod	-
17	RE221609	1	Drain Plug	(SUB FOR RE58661)
18	M136566	1	Washer	-
19	M136565	1	Plug	-
20	AM127137	1	Pressure Relief Valve	CYLINDER PRESSURE LIMIT
21	T36492	1	O-Ring	-
22	RE46684	1	Fitting Plug	INCLUDES 51M7041
23	LVA10978	1	Housing	-
24	51M7041	1	O-Ring	11.300 X 2.200 mm
25	M136564	1	Valve	DROP RATE
26	M136563	1	O-Ring	-
27	34M7095	1	Spring Pin	4 X 14 mm
28	PT10336	1	Washer	-
29	T143169	1	O-Ring	-
30	M136562	1	Holder	STOP VALVE
31	T77613	1	O-Ring	-
32	M136561	1	Stop	STOP
33	AM127406	1	Cylinder Head	-
34	M134757	1	Rod	-
35	LVA22761	1	Knob	SUB FOR AM123143
36	AM123226	1	Fitting	(W/SCREEN)
37	LVA10979	1	Breather	-
38	19M7790	12	Screw	M12 X 35, (HS, HEAD MARKED 10.9)
39	34H386	1	Spring Pin	1/4" X 2"
40	15M7003	1	Drain Plug	-
41	51M7043	1	O-Ring	15.300 X 2.200 mm

Rockshaft Cylinder Head and Piston ( - 311232)
