Rockshaft Control Valve Linkage ( - 311232)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM127122	1	Plate	-
2	-	1	Part 2	DRAFT, LH (NOT USED THIS APPLICATION)
3	M136574	1	Washer	-
4	M136568	2	Plate	-
5	M136573	1	Plate	-
6	14M7274	9	Nut	M10
7	24M7404	1	Washer	12 X 20 X 3 mm
8	12M6191	4	Disk Spring	12.200 X 25 X 1.500 mm
9	M136576	1	Bushing	-
10	M136578	1	Pin Fastener	SNAP
11	M136577	1	Plate	FRICTION
12	M139684	1	Lever	POSITION, RH
13	M136580	1	Washer	FRICTION
14	M136581	1	Plate	-
15	19M8081	2	Cap Screw	M10 X 80, (HS, HEAD MARKED 10.9)
16	14M7274	2	Nut	M10
17	AM127121	1	Pin Fastener	INPUT TUBE
18	M136567	2	O-Ring	-
19	26M4221	3	Shaft Key	3 X 13 mm
20	AM127120	1	Pin Fastener	INPUT SHAFT
21	L100940	2	O-Ring	-
22	AM127117	1	Pin Fastener	FEEDBACK SHAFT
23	AM127125	1	Plate	-
24	-	1	Part 24	(NOT USED THIS APPLICATION)
25	M136588	1	Rod	CONTROL
26	AM127127	1	Plate	-
27	19M7300	2	Cap Screw	M6 X 10
28	19M7799	2	Screw	M8 X 45, (HS, HEAD MARKED 10.9)
29	24H1849	4	Washer	17/32" X 1" X 0.036"
30	R114360	2	Washer	13.45 X 25.4 X 0.3 MM, , CONICAL
31	M136569	1	Arm	FEEDBACK
32	M136587	2	Tube	-
33	M136586	1	Plate	ADJUSTMENT
34	AM127124	1	Cam	-
35	M136585	1	Guide	-
36	LVA15586	1	Hydr./Pilot Control Valve	ROCKSHAFT, (SUB FOR LVA12134)
37	19M8446	3	Screw	M8 X 20, (HS, HEAD MARKED 12.9)
38	M136584	1	Plate	-
39	34M7126	1	Spring Pin	5 X 12 mm
40	M136583	1	Spring	-
41	M136582	1	Guide	CONTROL
42	34M7027	1	Spring Pin	4 X 20 mm
43	24M7043	1	Washer	12 X 25 X 3 mm, 12 X 24 X 2.5 MM
44	AM127118	1	Pin Fastener	FEEDBACK TUBE
45	40M7189	1	Snap Ring	-
46	M136570	1	Adjuster	-
47	12M7066	2	Lock Washer	10 mm
48	19M8324	2	Cap Screw	M10 X 16, (HS, HEAD MARKED 10.9)
49	34M7031	1	Spring Pin	5 X 24 mm, 5 X 20 MM
50	24M7098	1	Washer	19 X 30 X 3 mm
51	AM127119	1	Bushing	FEEDBACK ARM
52	M136572	1	Rod	POSITION FEEDBACK
53	11M7059	2	Cotter Pin	3.200 X 20 mm
54	0266736	5	Washer	10 X 18 X 2 MM, (SUB FOR TH105196)
55	M48534	1	Knob	-
56	M139080	1	Lever	-
57	19M7861	2	Screw	M6 X 10, (HS, HEAD MARKED 10.9)
58	T26209	1	Ring	-
59	R28776	2	O-Ring	-
60	99M7107	2	Plug	(SHIPPING)

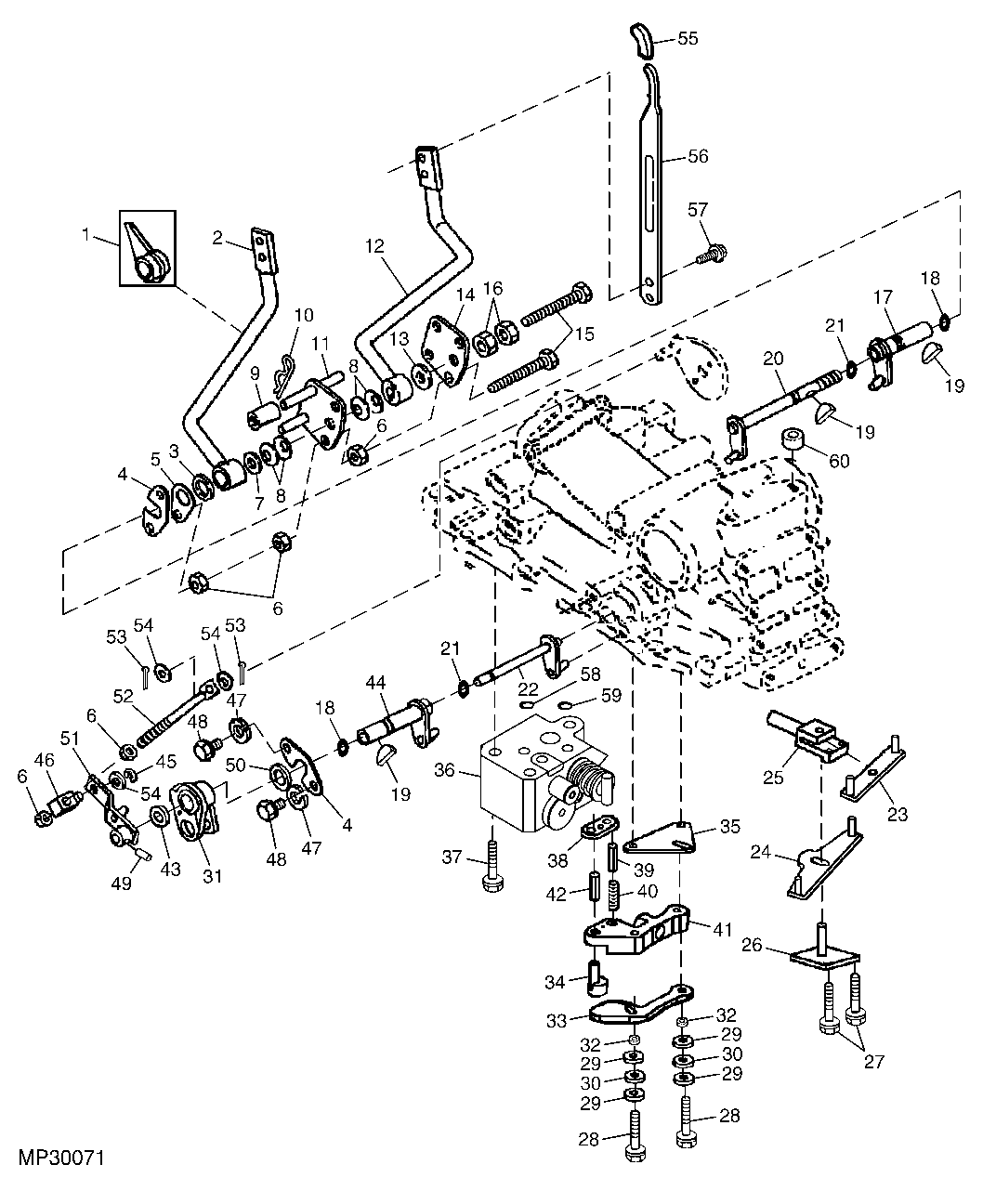

Rockshaft Control Valve Linkage ( - 311232)
