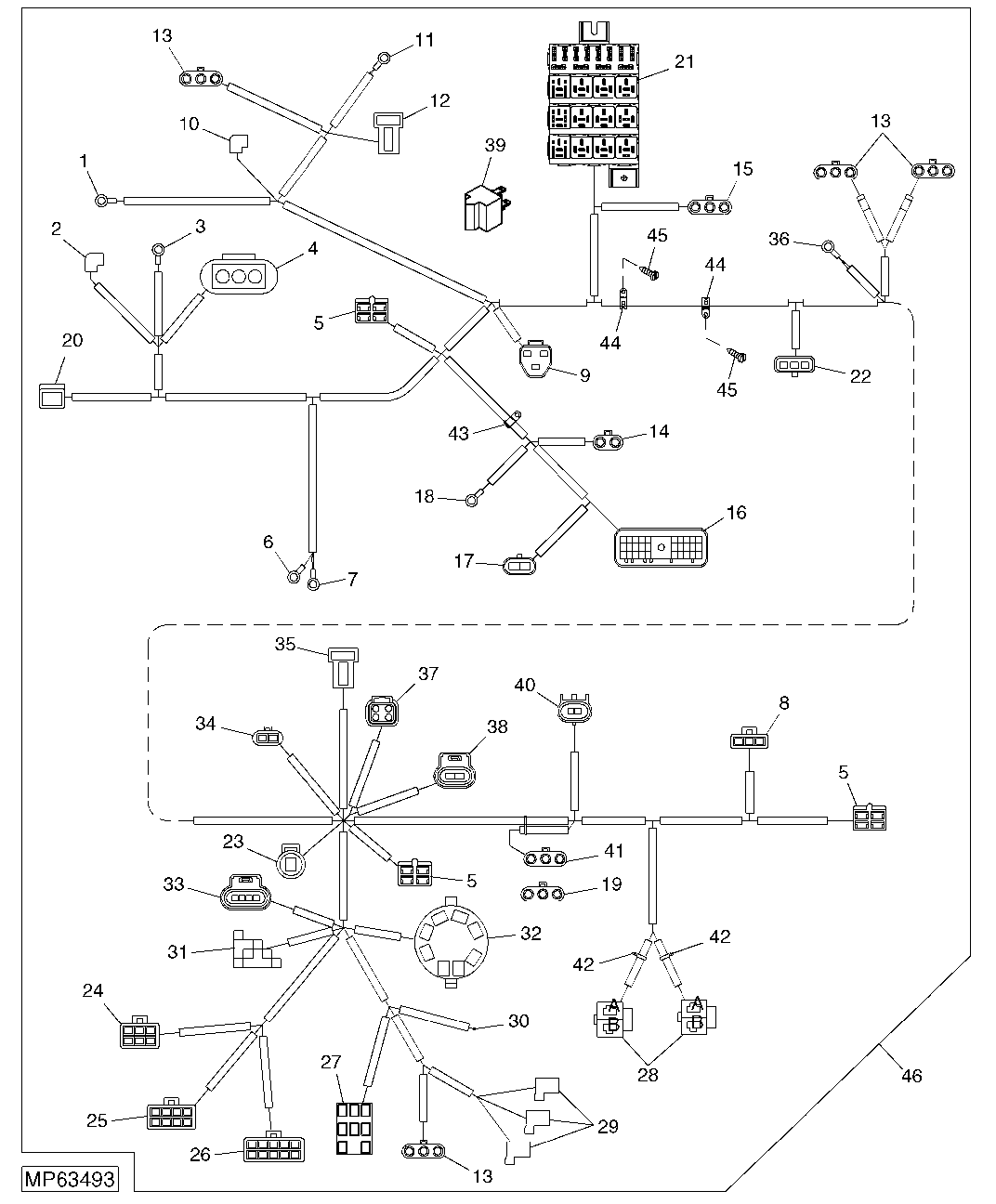

Main Harness (510277 - 711000)

Main Harness (510277 - 711000)

Main Harness (510277 - 711000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Main Harness (510277 - 711000)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R74993	1	Boot	MANIFOLD HEATER
2	-	1	Part 2	WATER TEMPERATURE
3	R74993	1	Boot	ALTERNATOR
4	57M8928	1	Elec. Connector Housing	ALTERNATOR
5	T24167	1	Electrical Connector Assy	BRAKE SWITCH
6	-	1	Part 6	STARTER
7	-	1	Part 7	STARTER
8	57M7290	1	Elec. Connector Accessory	MFWD GEAR SENSOR
9	-	1	Part 9	FUEL SOLENOID
10	-	1	Part 10	OIL PRESSURE SWITCH
11	-	1	Part 11	FRONT GROUND
12	-	1	Part 12	FUEL PUMP
13	RE12364	5	Electrical Connector Assy	-
14	RE12363	1	Electrical Connector Assy	HORN HARNESS
15	RE12364	1	Electrical Connector Assy	HST DIAGNOSTIC CONNECTOR
15	R78054	1	Electrical Connector Assy	-
15	R78064	1	Elec. Connector Cavity Plug	-
16	57M7275	1	Elec. Connector Housing	HST CONTROLLER
16	57M7741	9	Elec. Connector Terminal	-
17	R78053	1	Electrical Connector Assy	AIR RESTRICTION INDICATOR
18	-	1	Part 21	OIL TEMPERATURE SENSOR
19	R78058	1	Elec. Connector Terminal	-
19	R78059	1	Elec. Connector Seal	-
19	R78064	1	Elec. Connector Cavity Plug	-
20	57M8820	1	Elec. Connector Housing	STARTER
21	LVA13729	1	Relay	LOAD CENTER
21	E92565	1	Support	-
22	57M7290	1	Elec. Connector Accessory	VALVE HARNESS
23	57M7295	1	Elec.Connect Locking Device	FOPS HARNESS
23	R74993	1	Boot	-
24	57M7260	1	Elec. Connector Housing	INSTRUMENT CLUSTER
24	57M7291	1	Electrical Connector Assy	-
25	57M7296	1	Elec. Connector Accessory	-
25	57M7261	1	Elec. Connector Housing	INSTRUMENT CLUSTER
26	57M7262	1	Elec. Connector Housing	INSTRUMENT CLUSTER
26	57M8709	1	Elec. Connector Accessory	-
27	M117518	1	Elec. Connector Terminal	PTO SWITCH
28	57M7974	1	Electrical Connector Assy	SEAT SWITCH
29	-	1	Part 39	INCHING DIRECTION SWITCH
30	E92565	1	Support	LIGHT SWITCH
31	E64911	1	Connector	TURN SIGNAL
32	57M8757	1	Elec.Connect Locking Device	KEY SWITCH
33	57M7260	1	Elec. Connector Housing	OPTIONAL HYDRAULIC KIT POWER
33	57M8216	1	Electrical Connector Assy	-
34	57M7261	1	Elec. Connector Housing	ROCKSHAFT DISABLE SOLENOID
34	57M7289	1	Elec.Connect Locking Device	-
35	-	1	Part 47	PTO SOLENOID
36	-	1	Part 48	REAR GROUND
37	57M7619	1	Elec.Connect Locking Device	FOPS HARNESS
38	-	1	Part 50	FOPS HARNESS
39	LVA11884	1	Module	-
40	57M8215	1	Electrical Connector Assy	BACK-UP ALARM
41	RE12364	1	Electrical Connector Assy	BEACON LIGHT
42	57M8903	2	Clip	-
43	57M8833	1	Elec. Connector Accessory	-
44	57M8832	2	Elec. Connector Accessory	-
45	19M7783	1	Screw	M10 X 16, (HS, HEAD MARKED 10.9)
45	19M7865	1	Screw	M8 X 16, (HS, HEAD MARKED 10.9)
46	LVA14309	1	Wiring Harness	(SUB LVA14904 AND LVA15124)
46	57M7120	1	Fuse	20 AMP
46	57M7121	1	Fuse	10 AMP
46	57M7146	1	Fuse	30 AMP
46	57M9155	1	Elec. Connector Accessory	-
46	LVU10324	1	Lock	-
46	LVA13729	1	Relay	-
46	RE49726	1	Support	-
46	RE262484	1	Diode	(SUB FOR RE153894)
