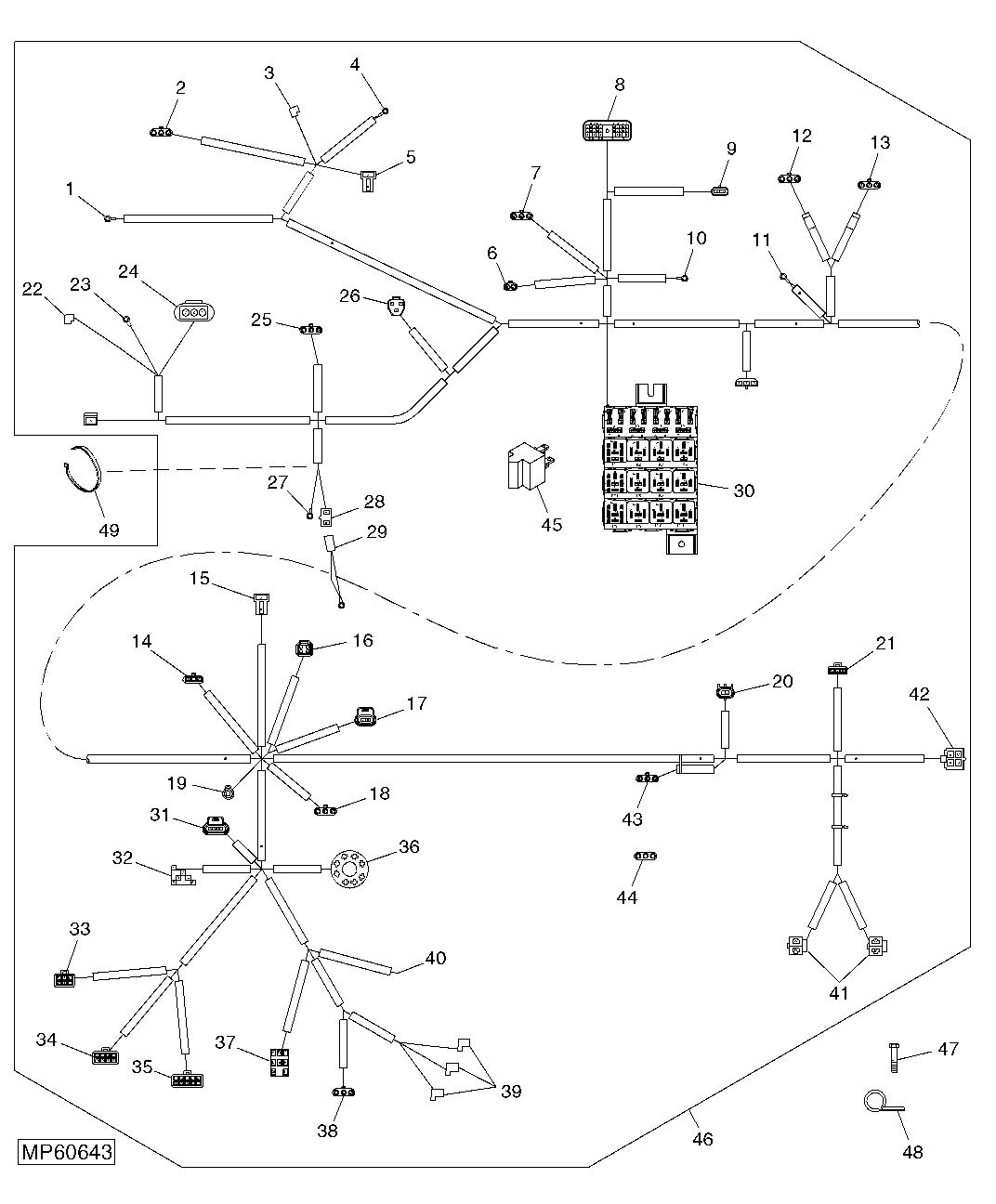

Main Harness (311000 - 410155)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R74993	1	Boot	MANIFOLD HEATER
1	-	1	Part 1	MANIFOLD HEATER
2	RE12364	1	Electrical Connector Assy	THROTTLE SENSOR
3	-	1	Part 4	OIL PRESSURE SWITCH
4	-	1	Part 5	FRONT GROUND
5	-	1	Part 6	FUEL PUMP
6	-	1	Part 7	HORN HARNESS
7	RE12364	1	Electrical Connector Assy	HYDROSTATIC TRANSMISSION DIAGNOSTIC
8	57M7275	1	Elec. Connector Housing	HYDROSTATIC TRANSMISSION CONTROLLER
9	R78053	1	Electrical Connector Assy	AIR RESTRICTION INDICATOR
10	-	1	Part 11	OIL TEMPERATURE SENSOR
11	-	1	Part 12	REAR GROUND
12	RE12364	1	Electrical Connector Assy	FORWARD PEDA
13	RE12364	1	Electrical Connector Assy	REVERSE PEDAL
14	57M7289	1	Elec.Connect Locking Device	ROCKSHAFT DISABLE SOLENOID
15	-	1	Part 16	PTO SOLENOID
16	57M7628	1	Electrical Connector Assy	FOPS HARNESS
17	-	1	Part 18	FOPS HARNESS
18	RE12364	1	Electrical Connector Assy	BACKHOE SWITCH
19	57M7293	1	Elec. Connector Housing	-
20	57M8215	1	Electrical Connector Assy	BACK-UP ALARM
21	57M7290	1	Elec. Connector Accessory	MFWD GEAR SENSOR
22	-	1	Part 23	WATER TEMPERATURE
23	-	1	Part 24	ALTERNATOR
23	R74993	1	Boot	ALTERNATOR
24	-	1	Part 26	ALTERNATOR
25	RE12364	1	Electrical Connector Assy	BRAKE SWITCH
26	-	1	Part 28	FUEL SOLENOID
27	-	1	Part 29	STARTER
28	57M7738	1	Elec. Connector Terminal	FUSE LINK
29	AM124901	1	Wiring Harness	FUSE LINK
30	-	1	Part 32	LOAD CENTER
30	LVA13729	10	Relay	-
31	57M8214	1	Elec. Connector Housing	OPTIONAL HYDRAULIC KIT POWER
32	-	1	Part 35	TURN SIGNAL
33	57M7291	1	Electrical Connector Assy	INSTRUMENT CLUSTER
34	57M7296	1	Elec. Connector Accessory	INSTRUMENT CLUSTER
35	-	1	Part 38	INSTRUMENT CLUSTER
36	RE46736	1	Electrical Connector Assy	KEY SWITCH
36	57M7842	1	Electrical Connector Assy	KEY SWITCH
37	M117518	1	Elec. Connector Terminal	PTO SWITCH
38	RE12364	1	Electrical Connector Assy	INCHING POTENTIOMETER
39	-	3	Part 43	INCHING DIRECTION SWITCH
40	RE46734	1	Electrical Connector Assy	LIGHT SWITCH
41	57M7974	2	Electrical Connector Assy	SEAT SWITCH
42	T24167	1	Electrical Connector Assy	PARK BRAKE
43	RE12364	1	Electrical Connector Assy	BEACON LIGHT
44	R78054	1	Electrical Connector Assy	-
44	R78064	1	Elec. Connector Cavity Plug	-
45	LVA11884	1	Module	-
46	LVA14904	1	Wiring Harness	MAIN, (ALSO ORDER LVA15124 ) (SUB FOR LVA13494)
46	57M7146	2	Fuse	30 AMP
46	57M7120	4	Fuse	20 AMP
46	57M7121	5	Fuse	10 AMP
46	RE262484	1	Diode	(SUB FOR RE153894)
46	LVU10324	1	Lock	-
47	19M7783	1	Screw	M10 X 16, (HS, HEAD MARKED 10.9)
48	T27550	1	Clip	-
49	R44302	1	Tie Band	-
