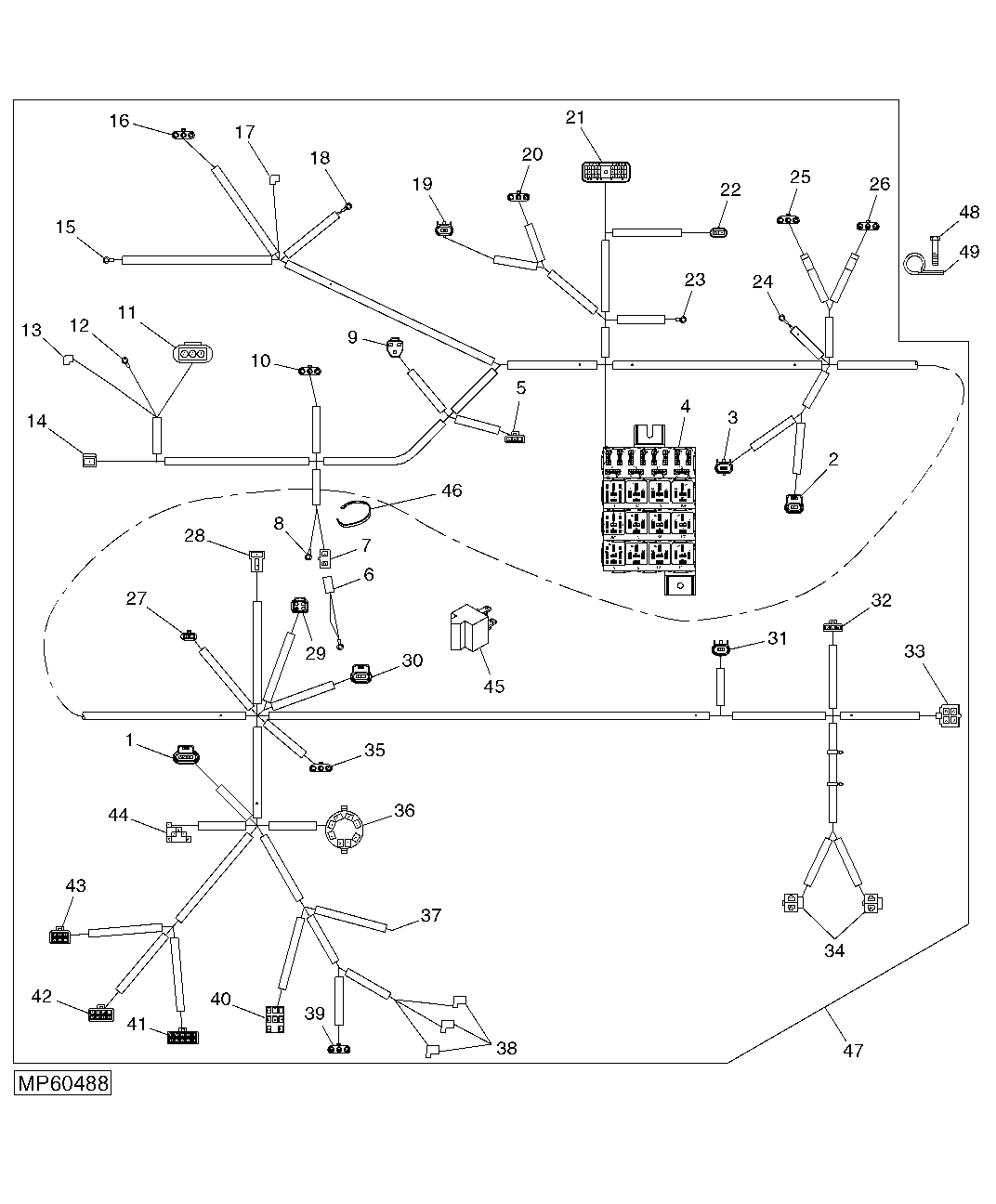

Main Harness ( - 310999)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8214	1	Elec. Connector Housing	OPTIONAL HYDRAULIC KIT POWER
2	57M8213	1	Elec. Connector Housing	REVERSE PROPORTIONAL VALVE
3	57M8215	1	Electrical Connector Assy	FORWARD PROPORTIONAL VALVE
4	-	1	Part 4	LOAD CENTER
4	E92565	1	Support	-
4	LVA13729	10	Relay	-
5	57M7255	1	Elec. Connector Housing	FLYWHEEL SENSOR
6	AM124901	1	Wiring Harness	FUSE LINK
7	57M7738	1	Elec. Connector Terminal	FUSE LINK
8	-	1	Part 10	STARTER
8	14M7298	1	Flange Nut	M8
9	-	1	Part 12	FUEL SOLENOID
10	RE12364	1	Electrical Connector Assy	BRAKE SWITCH
11	-	1	Part 14	ALTERNATOR
11	14M7303	1	Flange Nut	M6
12	R74993	1	Boot	ALTERNATOR
13	-	1	Part 17	WATER TEMPERATURE
14	-	1	Part 18	STARTER
15	R74993	1	Boot	MANIFOLD HEATER
16	RE12364	1	Electrical Connector Assy	THROTTLE SENSOR
17	-	1	Part 21	OIL PRESSURE SWITCH
18	-	1	Part 22	FRONT GROUND
19	57M8215	1	Electrical Connector Assy	HST INDICATOR LAMP
20	RE12364	1	Electrical Connector Assy	HYDROSTATIC TRANSMISSION DIAGNOSTIC
21	57M7275	1	Elec. Connector Housing	HYDROSTATIC TRANSMISSION CONTROLLER
22	RE12364	1	Electrical Connector Assy	AIR RESTRICTION INDICATOR
23	-	1	Part 27	OIL TEMPERATURE SENSOR
24	-	1	Part 28	REAR GROUND
25	RE12364	1	Electrical Connector Assy	FORWARD PEDAL
26	RE12364	1	Electrical Connector Assy	REVERSE PEDA
27	57M7254	1	Elec. Connector Housing	ROCKSHAFT DISABLE SOLENOID
28	-	1	Part 32	PTO SOLENOID
29	57M7628	1	Electrical Connector Assy	FOPS HARNESS
30	-	1	Part 34	FOPS HARNESS
31	57M8215	1	Electrical Connector Assy	BACK-UP ALARM
32	57M7255	1	Elec. Connector Housing	MFWD GEAR SENSOR
33	T24167	1	Electrical Connector Assy	PARK BRAKE
34	57M7974	2	Electrical Connector Assy	SEAT SWITCH
35	RE12364	1	Electrical Connector Assy	BACKHOE SWITCH
36	RE46736	1	Electrical Connector Assy	KEY SWITCH
37	RE46734	1	Electrical Connector Assy	LIGHT SWITCH
38	-	3	Part 42	INCHING DIRECTION SWITCH
39	RE12364	1	Electrical Connector Assy	INCHING POTENTIOMETER
40	M117518	1	Elec. Connector Terminal	PTO SWITCH
41	57M7262	1	Elec. Connector Housing	INSTRUMENT CLUSTER
42	57M7261	1	Elec. Connector Housing	INSTRUMENT CLUSTER
43	57M7260	1	Elec. Connector Housing	INSTRUMENT CLUSTER
44	-	1	Part 48	TURN SIGNAL
45	LVA11884	1	Module	ELECTRONIC FUEL SOLENOID TIMER CONTROL
46	R44302	15	Tie Band	-
47	LVA13010	1	Wiring Harness	MAIN, (SUB FOR LVA10960 OR LVA12530)
47	57M7120	4	Fuse	20 AMP
47	57M7121	3	Fuse	10 AMP
47	57M7146	2	Fuse	30 AMP
47	RE262484	1	Diode	-
48	19M7783	1	Screw	M10 X 16, (HS, HEAD MARKED 10.9)
49	T27550	1	Clip	-
