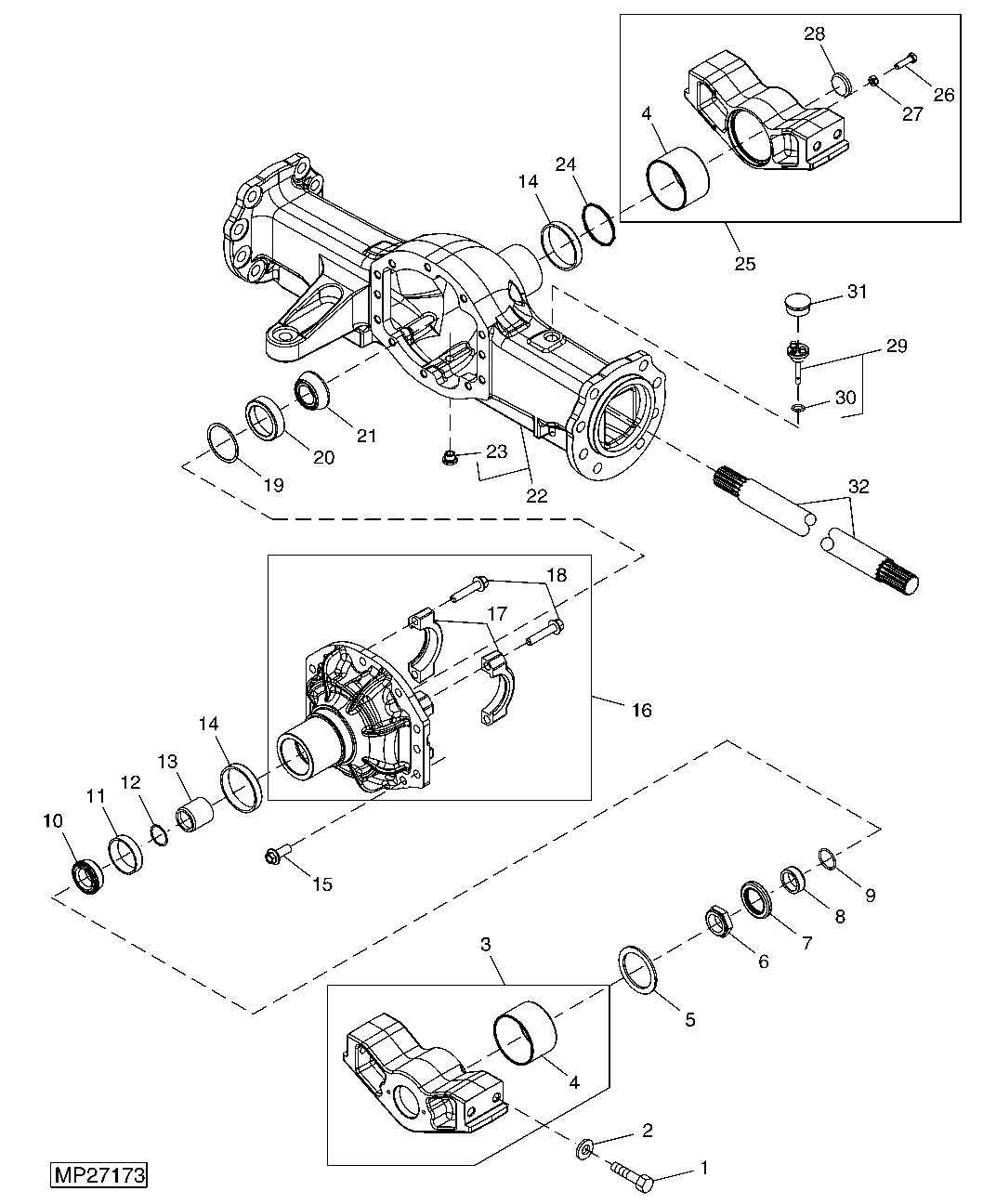

FRONT AXLE HOUSING (MFWD) (AXLES MARKED S30BZ100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9169	8	Cap Screw	M14 X 50, (HS, HEAD MARKED 10.9)
2	24M7436	8	Washer	15.300 X 32 X 4 mm
3	LVA12289	1	Trunnion	-
4	LVU14343	1	Bushing	-
5	M136892	1	Thrust Washer	-
6	M136771	1	Nut	(A) (B)
7	AT33402	1	Seal	(A) (B)
8	M136768	1	Spacer	(A) (B)
9	R104728	1	O-Ring	(A) (B)
10	JD8117	1	Bearing Cone	(B)
11	JD7432	1	Bearing Cup	(B)
12	AM128186	1	Shim Kit	PINION, (SELECT 1 FROM KIT AS REQUIRED)
13	M138285	1	Spacer	PINION
14	M136891	2	V-Ring Seal	-
15	19M7789	12	Screw	M12 X 30, (HS, HEAD MARKED 10.9)
16	LVA12284	1	Housing	(C)
17	-	1	Part 17	(C) (ORDER LVA12284)
18	LVU11273	4	Screw	(C)
19	AM127957	1	Shim Kit	INNER PINION, (SELECT 1 FROM KIT AS REQUIRED)
20	JD8267	1	Bearing Cup	(B)
21	JD8979	1	Bearing Cone	(B)
22	LVA12283	1	Housing	-
23	LVU13848	3	Drain Plug	-
24	LVU12412	1	Disk	-
25	LVA12288	1	Trunnion	-
26	19M7017	2	Cap Screw	M8 X 30, (HS, HEAD MARKED 10.9)
27	14M7347	2	Nut	M8
28	-	1	Part 28	(ORDER LVA12288)
29	AM127176	1	Dipstick	-
30	M136886	1	O-Ring	-
31	-	1	Part 31	(SHIPPING)
32	LVU13845	1	Shaft	RH (SHOWN)
32	LVU13846	1	Shaft	LH
..	AM127151	1	Seal Kit	(B) (INCLUDES PARTS MARKED (A))
..	AM127152	1	Bearing Kit	(D) (INCLUDES PARTS MARKED (B))
..	LVA12278	1	Differential	(INCLUDES PARTS MARKED (C))
..	LVA12281	1	Trunnion	WITH SEALS
..	LVA10540	1	Front Axle	COMPLETE
..	LVA12282	1	Ring Gear And Pinion	RING AND PINION (INCLUDES PARTS MARKED (D))

FRONT AXLE HOUSING (MFWD) (AXLES MARKED S30BZ100)
