Открытый узел

LONG ARM 2.81 M (9 FT 3 IN)

LONG ARM 2.81 M (9 FT 3 IN)

LONG ARM 2.81 M (9 FT 3 IN)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

LONG ARM 2.81 M (9 FT 3 IN)

Нет текстового описания

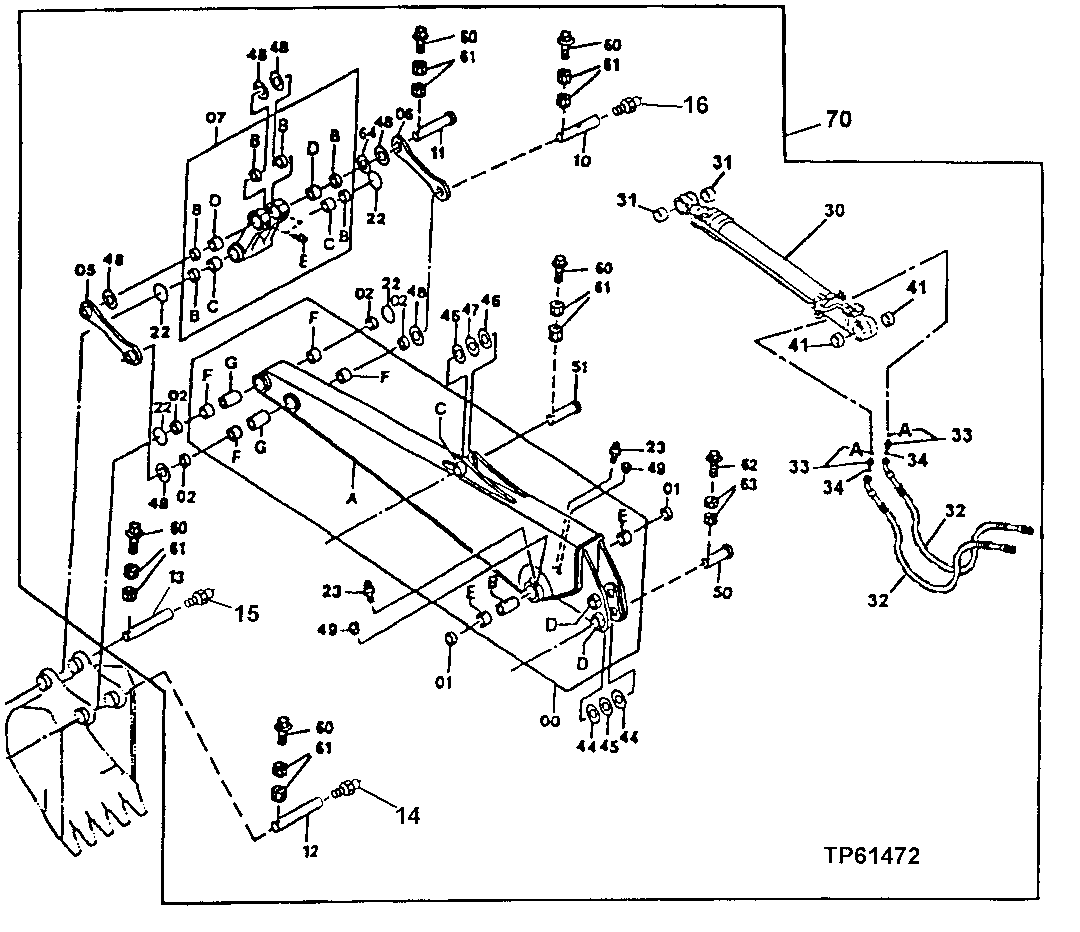

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AP34389	1	Arm	Convenience Assembly
1	TH100374	2	Seal	-
2	TH100374	4	Seal	-
5	9735190	1	Link	(SUB FOR AT154243)
6	4257933	1	Link	(SUB FOR AT154248)
7	AP33539	1	Link	-
10	TH108940	1	Pin	(SUB FOR AP33639 ) (ALSO ORDER TH100074)
11	P66990	1	Shear Pin	(SUB FOR TH108943)
12	AT318059	1	Pin Fastener	(SUB FOR 3084540 ) (ALSO ORDER TH100074 ) (SUB FOR TH108941)
13	3089242	1	Pin Fastener	Not Illustrated Pin Not Drilled For Grease Fitting See DTAC Solution 90615
13	P68886	1	Pin	(NLA) (SUB FOR TH108942) (ORDER 3089242)
14	TH100074	1	Lubrication Fitting	-
15	TH100074	1	Lubrication Fitting	(USE WITH P68886)
16	TH100074	1	Lubrication Fitting	-
22	4276696	4	O-Ring	Standard O-Ring
22	AT349465	4	Seal	Split O-Ring
23	TH100074	2	Lubrication Fitting	-
30	-	1	Part 29	Bucket Cylinder See Separate Page For Detail
31	TH100374	2	Seal	-
32	P63676	2	Hydraulic Hose	-
33	4189602	2	Fitting	(SUB FOR TH108350)
34	T77857	2	O-Ring	-
41	TH100374	2	Seal	-
44	4075358	2	Washer	66 X 120 X 2 mm (2.598" X 4.724" X 0.079"), (SUB FOR TH108955)
45	4284139	1	Washer	61 X 120 X 2 mm (2.402" X 4.724" X 0.079"), (SUB FOR AT154378)
46	4284139	2	Washer	61 X 120 X 2 mm (2.402" X 4.724" X 0.079"), (SUB FOR AT154378)
47	4179807	1	Washer	61 X 120 X 1 mm (2.402" X 4.724" X 0.039"), (SUB FOR TH108045)
48	4075358	6	Washer	66 X 120 X 2 mm (2.598" X 4.724" X 0.079"), (SUB FOR TH108955)
49	94-2010	2	Fitting Plug	(SUB FOR TH100689)
50	P60861	1	Pin	-
51	P60925	1	Pin Fastener	-
60	19M8351	5	Cap Screw	M16 X 125, (SUB FOR 19M7941)
61	14M7276	10	Nut	M16
62	19M8351	1	Cap Screw	M16 X 125, (SUB FOR 19M7907, APPL) (SUB FOR 19M7941)
63	14M7276	2	Nut	M16, (SUB FOR 14M7277, APPL)
64	4075357	1	Washer	66 X 120 X 1 mm (2.598" X 4.724" X 0.039"), (SUB FOR TH108944)
70	AP35213	1	Arm	Includes Long Arm, Bucket Cylinder, Hoses and Linkage, (WHOLE GOODS)
0A	-	1	Part 2	-
0B	P63530	1	Bushing	-
0C	P60783	1	Bushing	-
0D	P60783	2	Bushing	-
0E	4188796	2	Bushing	(SUB FOR TH108930)
0F	AT122209	4	Bushing	65 X 80 X 50 mm (2.559" X 3.150" X 1-31/32")
0G	4124575	2	Spacer	(SUB FOR TH100369)
7B	TH100374	6	Seal	-
7C	AT122209	2	Bushing	65 X 80 X 50 mm (2.559" X 3.150" X 1-31/32")
7D	4188796	2	Bushing	(SUB FOR TH108930)
7E	TH100074	2	Lubrication Fitting	-
33A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
