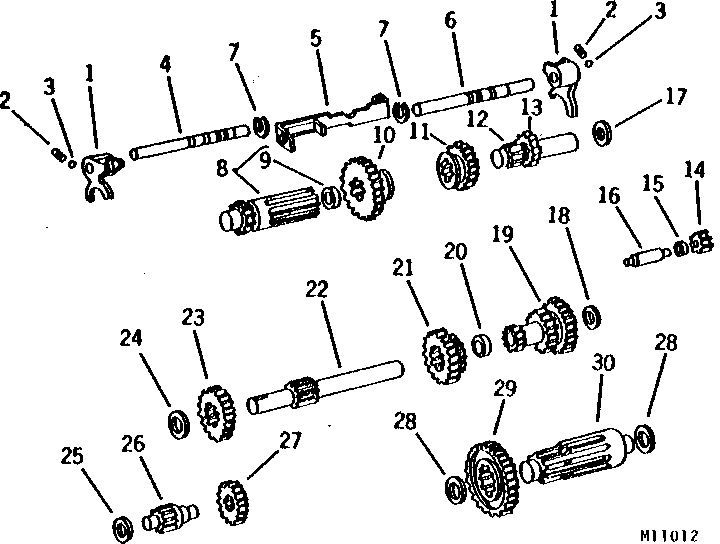

TRANSAXLE GEARS, SHIFTER RODS, AND FORKS [C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M11021	2	FORK	-
2	M40350	2	COMPRESSION SPRING	-
3	M40351	2	BALL	-
4	M41038	1	SHIFTER ROD	(1ST, 2ND AND REVERSE SPEEDS) (FOUR SHIFTER GROOVES)
5	AM30640	1	STOP	-
6	M41037	1	SHIFTER ROD	(3RD AND 4TH SPEEDS) (THREE SHIFTER GROOVES)
7	R32507	2	Snap Ring	-
8	AM38091	1	SHAFT	(SUB FOR AM30536 AND AM37610)
9	JD8833	1	NEEDLE BEARING	-
10	M40358	1	GEAR	26 T (1ST, 2ND AND REVERSE SPEEDS)
11	M81712	1	GEAR	20 T (3RD AND 4TH SPEEDS) (SUB FOR M40359)
12	M81828	1	SHAFT	(SUB FOR M41034)
13	M81713	1	GEAR	16 T, (SUB FOR M40361)
14	M40373	1	IDLER	REVERSE
15	M41047	1	BUSHING	-
16	M41043	1	PIN FASTENER	-
17	JD9825	1	Thrust Bearing	-
18	JD9824	10	Thrust Bearing	-
19	AM37264	1	GEAR	(SUB FOR AM30534)
20	M41039	1	SPACER	-
21	AM30535	1	GEAR	-
22	M41035	1	SHAFT	-
23	M41042	1	SPUR GEAR	30 T
24	JD9812	1	Thrust Bearing Race	-
25	M40378	1	Washer	-
26	M41040	1	PINION SHAFT	-
27	M41041	1	GEAR	22 T
28	M41033	2	WASHER	-
29	M41044	1	SPUR GEAR	36 T
30	M41036	1	PINION	-

TRANSAXLE GEARS, SHIFTER RODS, AND FORKS [C19]
