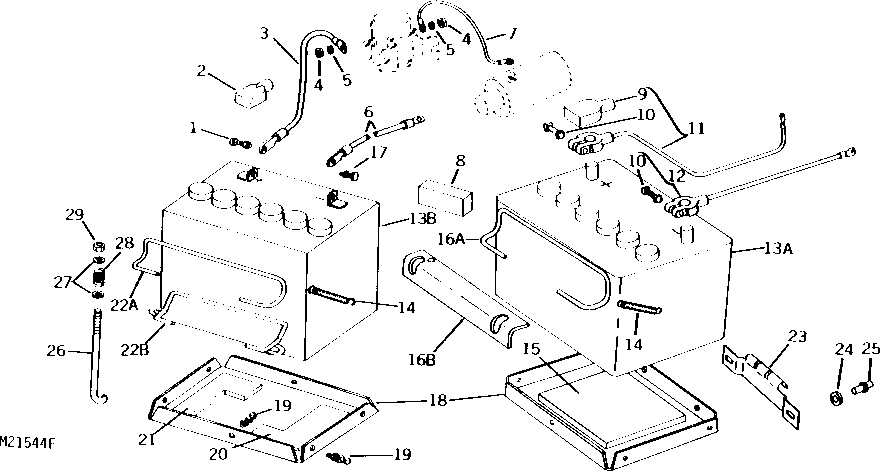

BATTERY, BASE, AND STARTER CABLES [A18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H786	1	Nut	1/4", (8 HP)
1	03H1893	1	Bolt	1/4" X 1/2", (8 HP)
2	M41125	1	BOOT	(8 HP) (SUB AM38252)
3	AM31551	1	BATTERY CABLE	(279.4 MM) 11" LONG (POSITIVE) (8 HP)
4	14H611	2	Nut	5/16"
5	12H303	2	Lock Washer	5/16"
6	AM30748	1	BATTERY CABLE	(431.8 MM) 17" LONG(NEG) (8 HP) (SUB FOR AM30051)
7	AM30768	1	BATTERY CABLE	(444.5 MM) 7-1/2" LONG
8	M46965	2	PAD	(ON FUEL TANK)
9	M83639	1	BOOT	(POSITIVE) (10 HP)
10	08H4316	2	Bolt	5/16" X 1-1/4", (10 HP)
10	14H785	2	Nut	5/16", (10 HP)
11	AM31404	1	BATTERY CABLE	(381.0 MM) 15" LONG (POSITIVE) (10 HP)
12	AM31405	1	CABLE	(419.1 MM) 16-1/2" LONG (NEG) (10 HP)
14	S337M	2	Extension Spring	-
15	M44311	1	PAD	(10 HP)
17	19H2020	1	Cap Screw	5/16" X 1/2", (8 HP)
17	14H785	1	Nut	5/16", (8 HP)
18	M46241	1	BASE	(SUB FOR M43094)
19	19H1227	5	Cap Screw	1/4" X 1/2"
19	14H786	4	Nut	1/4"
19	12H302	5	Lock Washer	1/4"
19	24H1287	5	Washer	9/32" X 5/8" X 0.065", (BASE TO PANEL STRUT)
20	M43103	1	PAD	(8 HP) L.H.
21	M43102	1	PAD	(8 HP) R.H.
23	M46242	1	BRACKET	(A) (10 HP ELECTRIC LIFT)
24	24H1283	2	Washer	(A) 7/32" X 1/2" X 0.049"
25	M46710	2	RIVET	(A) (NO LONGER AVAILABLE)
26	M83518	2	BOLT	(SUB FOR M40004)
27	24H1287	4	Washer	9/32" X 5/8" X 0.065"
28	R359FN	2	SPRING	-
29	M63707	1	Lock Nut	-
..	M82800	2	Cap	(USE WITH AM100798) (SUB FOR AM38003)
13A	AM100798	1	WET CHARGED BATTERY	(W/TAPERED POST) (10 HP) (SUB FOR AM31186)
13B	AM30094	1	DRY CHARGED BATTERY	(WITH "L" SHAPED POST) (8 HP)
16A	M44312	1	RETAINER	(10 HP)
16B	AM101500	1	Battery Kit	(10 HP) (SUB FOR M42373)
22A	M46012	1	RETAINER	(8 HP ONLY) (SUB AM38187)
22B	M47659	1	RETAINER	(8 HP ONLY) (SUB AM38187)

BATTERY, BASE, AND STARTER CABLES [A18]

Нет текстового описания
