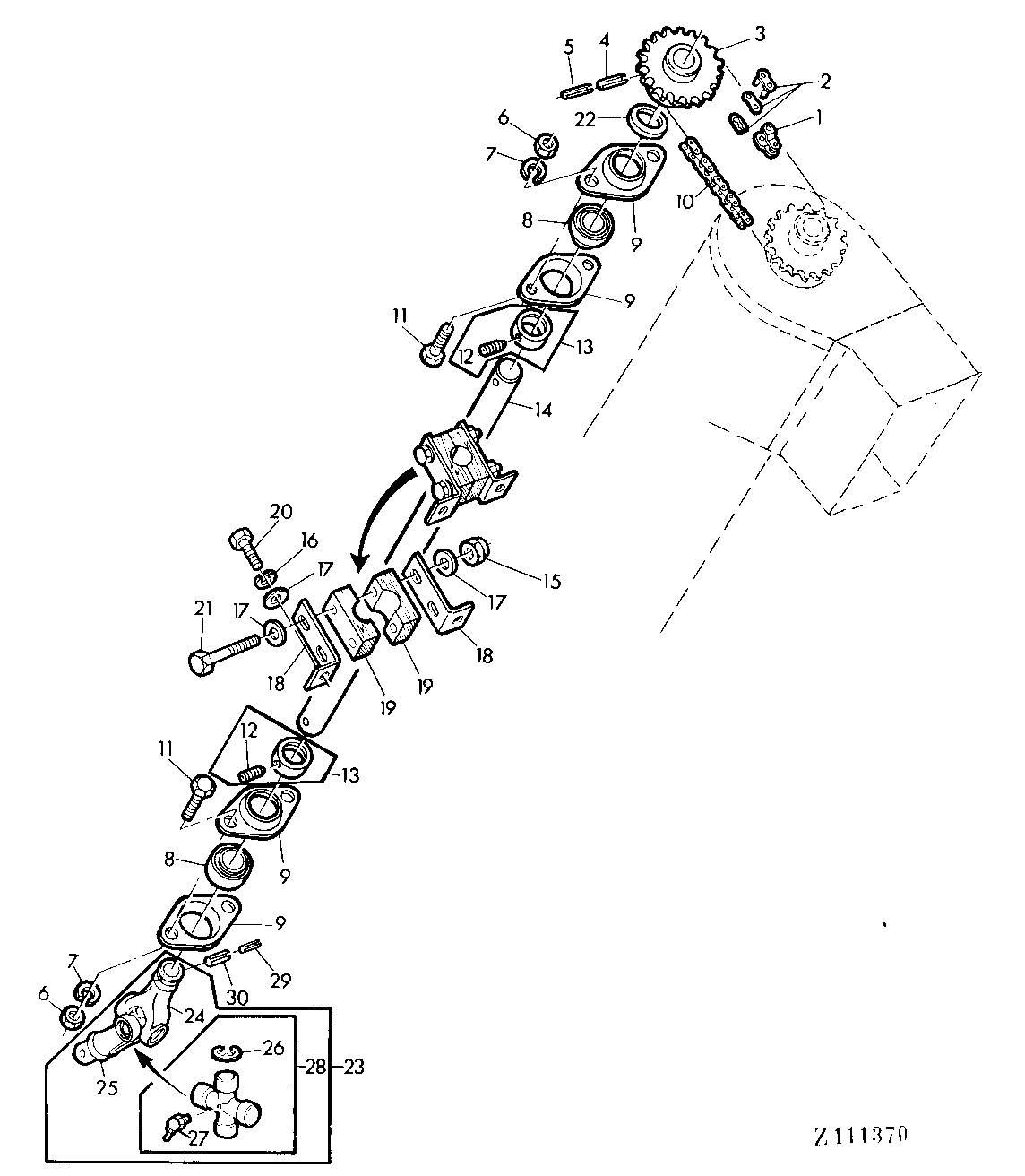

HYDRAULIC UNLOADING AUGER (LONG),DRIVE [05C22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ36221	1	CHAIN LINK	(FOR AZ36600)
1	AL14908	1	CHAIN LINK	(FOR AZ32303)
2	AZ36220	1	CHAIN LINK	(FOR AZ36600)
2	AL14211	1	CHAIN LINK	(FOR AZ32303)
3	Z11152	1	CHAIN SPROCKET	Z = 18
4	34M7070	1	Spring Pin	10X45MM
5	34M7043	1	Spring Pin	6X45MM
6	14M7140	1	Nut	M10
7	12M7013	1	LOCK WASHER	10MM
8	JD39103	2	BALL BEARING	-
9	Z30026	4	PRESSED FLANGED HOUSING	-
10	AZ26761	1	LINK CHAIN	INCL KEYS 1,2, L = 37
10	AZ36600	1	ROLLER CHAIN	INCL KEYS 1,2, L = 35 (SUB FOR AZ32303)
11	19M7166	1	Cap Screw	M10X20
12	AZ19844	2	SET SCREW	KIT
13	AZ10045	2	Eccentric Locking Collar	-
14	Z37222	1	SHAFT	(ORD AZ38318, Z11683, Z48033, 34M7048, 34M7050)
15	14M7166	1	Lock Nut	M8
16	12M7008	1	LOCK WASHER	8MM
17	24M7036	1	Washer	9MM
18	Z33525	4	HOLDER	-
19	Z33527	4	BEARING	-
20	19M7297	1	Cap Screw	M8X12
21	19M7270	1	Cap Screw	M8X65
22	Z26248	1	WASHER	-
23	AZ28867	1	UNIVERSAL JOINT	(ORD AZ32225)
23	AZ32225	1	UNIVERSAL JOINT	(SUB FOR AZ28867)
24	Z11268	1	UNIVERSAL JOINT YOKE	(FOR AZ32225)
24	Z11457	1	UNIVERSAL JOINT YOKE	(FOR AZ28867)
25	Z11269	1	UNIVERSAL JOINT YOKE	(FOR AZ32225)
25	Z11456	1	UNIVERSAL JOINT YOKE	(FOR AZ28867)
26	Z32725	4	SNAP RING	(FOR AZ28866)
26	Z43195	4	SNAP RING	(FOR AZ32226)
27	58M5577	1	Lubrication Fitting	M8X1 (FOR AZ28866)
27	58M7010	1	Lubrication Fitting	(FOR AZ32226)
28	AZ28866	1	SPIDER	(FOR AZ28867)
28	AZ32226	1	SPIDER	(FOR AZ32225)
29	34M7044	1	Spring Pin	6X50MM
30	34M7054	1	Spring Pin	10X50MM
