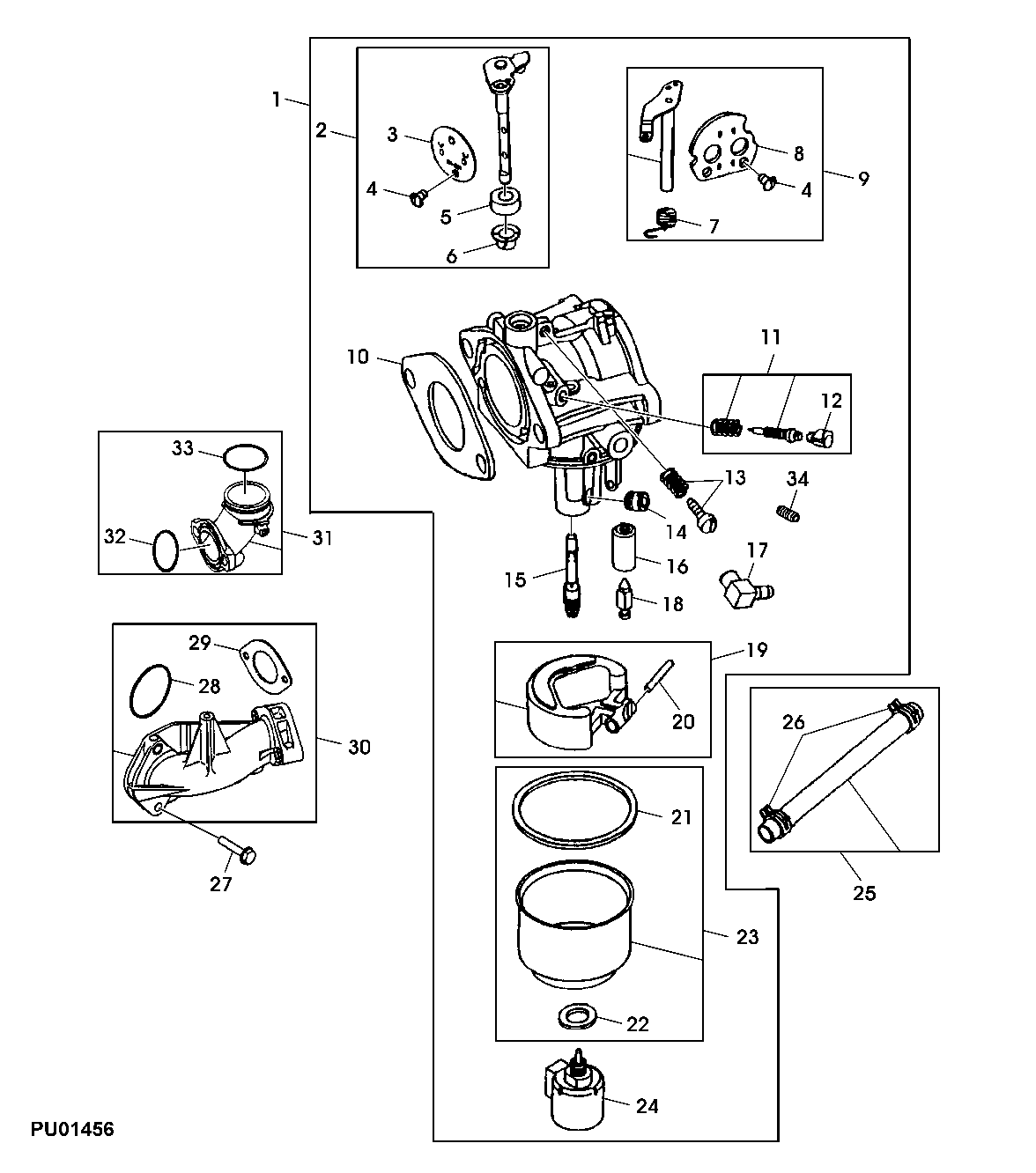

CARBURETOR (MARKED 791888, 697141, 698445)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM133687	1	Carburetor	(MARKED 698445) (SUB MIA11081)
1	AM132368	1	Carburetor	(MARKED 697141) (SUB MIA11081)
1	MIA10618	1	Carburetor	(MARKED 791888) (SUB MIA11081)
2	MIA10620	1	Shaft	THROTTLE, (SUB FOR LG494379)
3	LG691750	1	Valve	-
4	LG691636	2	Screw	-
5	LG691326	1	Seal	-
6	LG690602	1	Bushing	-
7	LG690801	1	Kit	SEAL AND SPRING (MANUAL CHOKE)
7	LG690802	1	Kit	SEAL AND SPRING (CHOKE-A-MATIC)
8	LG690464	1	Valve	(MANUAL CHOKE)
8	LG692344	1	Valve	(CHOKE-A-MATIC)
9	MIA10840	1	Shaft	CHOKE (MANUAL) (SUB FOR LG495097)
9	MIA10619	1	Shaft	CHOKE (CHOKE-A-MATIC) (SHOWN) (SUB FOR LG495931)
10	M144311	1	Gasket	-
11	MIU11498	1	Valve Kit	IDLE ADJUST, (SUB FOR LG498030)
12	LG691333	1	Cap	-
13	LG495800	1	Screw	-
14	M147555	1	Jet	MAIN (STANDARD)
14	M147558	1	Jet	MAIN (HIGH ALTITUDE)
15	M147554	1	Nozzle	-
16	LG691780	1	Valve Seat	-
17	LG692317	1	Elbow Fitting	(CARBURETOR MARKED 697141)
18	LG231855S	1	Valve	-
19	LG494381	1	Float	-
20	LG690525	1	Pin	-
21	LG281165S	1	Gasket	-
22	LG692255	1	Washer	-
23	LG495933	1	Bowl	-
23	LG691657	1	Screw	NLA; Fuel Bowl (NOT SHOWN)
24	-	1	Part 31	-
25	MIA10629	1	Fuel Line	(SUB FOR LG691050)
26	MIU11187	4	Hose Clamp	(USE WITH MIA11629)
26	T13254	2	Clamp	-
27	LG95160	2	Screw	-
28	LG692138	1	O-Ring	-
29	M144311	1	Gasket	INTAKE
30	MIA11490	1	Intake Manifold	NLA; ORDER MIA12498; SUB FOR LG690193
30	MIA12498	1	Intake Manifold	NLA; ORDER MIA12415
30	MIA12415	1	Manifold Kit	-
31	AM132369	1	Elbow Fitting	INTAKE
32	LG691917	1	Gasket	-
33	M147557	1	Seal	-
34	M150742	1	Fitting	(CARBURETOR MARKED 698445, 791888)

CARBURETOR (MARKED 791888, 697141, 698445)
