Wiring Harness, Front ( - 805000)

Wiring Harness, Front ( - 805000)

Wiring Harness, Front ( - 805000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Wiring Harness, Front ( - 805000)

Нет текстового описания

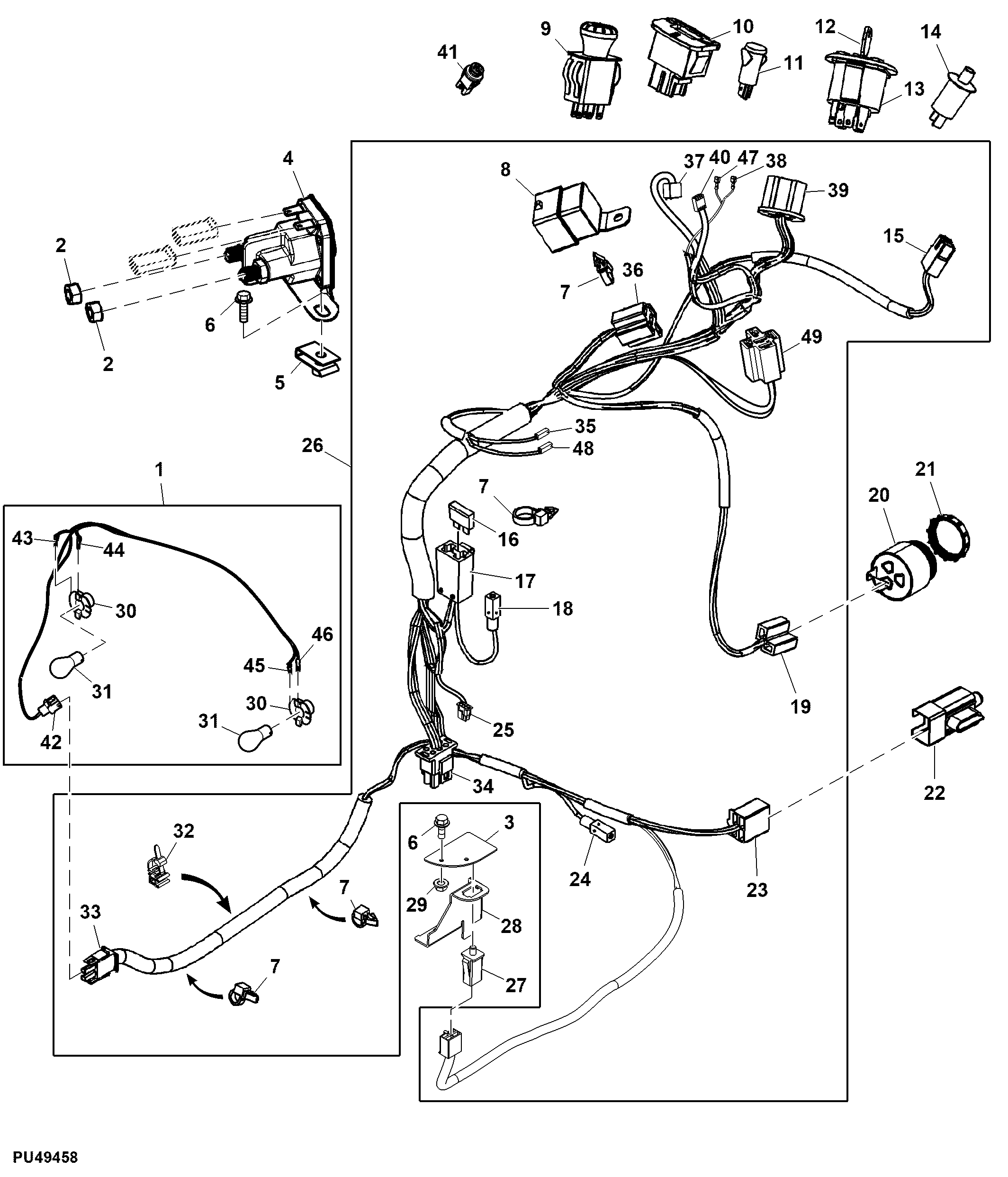

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	GY21294	1	Wiring Harness	Headlight
2	14H786	2	Nut	1/4"
3	GX23903	1	Bracket	Actuator
4	AUC15346	1	Solenoid	SUB FOR GY22476 OR AM138068
5	GX23794	1	Nut	-
6	19M7775	4	Screw	M6 X 16
7	57M11713	4	Elec. Connector Accessory	-
8	GY20437	1	Relay	12 V
9	AUC10632	1	Push Switch	SUB FOR AM131966 OR GY20939
10	GY21573	1	Hour Meter	ORDER GY21720
10	GY21720	1	Hour Meter	-
11	GY21242	1	Warning Light Kit	Incandescent W/ Silicone
12	M127331	1	Key	ORDER GY20680; Ignition
12	GY20680	1	Key	-
12	GX24332	1	Key	-
13	GY20074	1	Rotary Switch	Ignition
14	AM124734	1	Switch	Rio Latch
15	57M11587	1	Elec. Connector Housing	C02, Rio Switch
15	57M11588	2	Elec. Connector Terminal	Cavity 1, 2
16	57M7120	1	Fuse	20 A
17	57M8829	1	Elec. Connector Accessory	C08, Fuse
17	T126788	1	Elec. Connector Terminal	Cavity A
17	57M11037	1	Elec. Connector Terminal	Cavity B
18	57M11033	1	Elec. Connector Housing	C09, B+ Input
18	57M9484	1	Elec. Connector Terminal	Cavity 1
19	57M8812	1	Elec. Connector Housing	C16, Hopper Alarm
20	AM131182	1	Audible Warning Alarm	SUB FOR GY21243
21	GX23470	1	Nut	Rear Discharge/ Rear Collector, Alarm
22	GY20094	1	Switch	Brake
23	T24167	1	Electrical Connector Assy	C04, Brake Switch
24	57M11033	1	Elec. Connector Housing	C03, Ground
24	57M9484	1	Elec. Connector Terminal	Cavity 1
25	57M9364	1	Elec. Connector Housing	C07, Engine Connector
25	57M9484	4	Elec. Connector Terminal	Cavity 1 - 4
26	GY21480	1	Wiring Harness	Rear Discharge/ Rear Collector, Front Wiring
26	GY22224	1	Wiring Harness	-
26	GY21880	1	Wiring Harness	-
26	GY21706	1	Wiring Harness	-
27	TCA15398	1	Switch	Park Brake
28	GX24240	1	Bracket	SUB FOR GX24240BLE; Engine Stop Switch
29	14M7303	2	Flange Nut	M6
30	AM121594	2	Socket	-
31	AD2062R	2	Bulb	27 W
32	57M9229	1	Clip	-
33	57M11032	1	Elec. Connector Housing	C05, Head Lights
33	57M9484	2	Elec. Connector Terminal	Cavity A, B
34	-	1	Part 47	C11, Rear Harness Interconnect
34	57M11042	10	Elec. Connector Terminal	Cavity 1-10
35	57M11691	1	Elec. Connector Housing	C06, Start Solenoid
36	57M11596	1	Elec. Connector Housing	C13, Relay
36	57M11717	2	Elec. Connector Terminal	Cavity 1.3
37	57M10771	1	Elec. Connector Housing	C14, PTO Switch
38	-	1	Part 53	C17, Hopper Full Light
39	-	1	Part 54	C10, Ignition Switch
40	57M11582	1	Elec. Connector Housing	C01, Hour Meter
41	AUC10697	1	Push Switch	-
42	-	1	Part 57	C01
43	-	1	Part 58	CO3
44	-	1	Part 59	CO2
45	-	1	Part 60	CO5
46	-	1	Part 61	CO4
47	-	1	Part 62	C18, Hopper Full Light
48	57M11691	1	Elec. Connector Housing	C12, Start Solenoid
49	57M11596	1	Elec. Connector Housing	C23, Relay
49	57M11717	2	Elec. Connector Terminal	Cavity 1,3
