Открытый узел

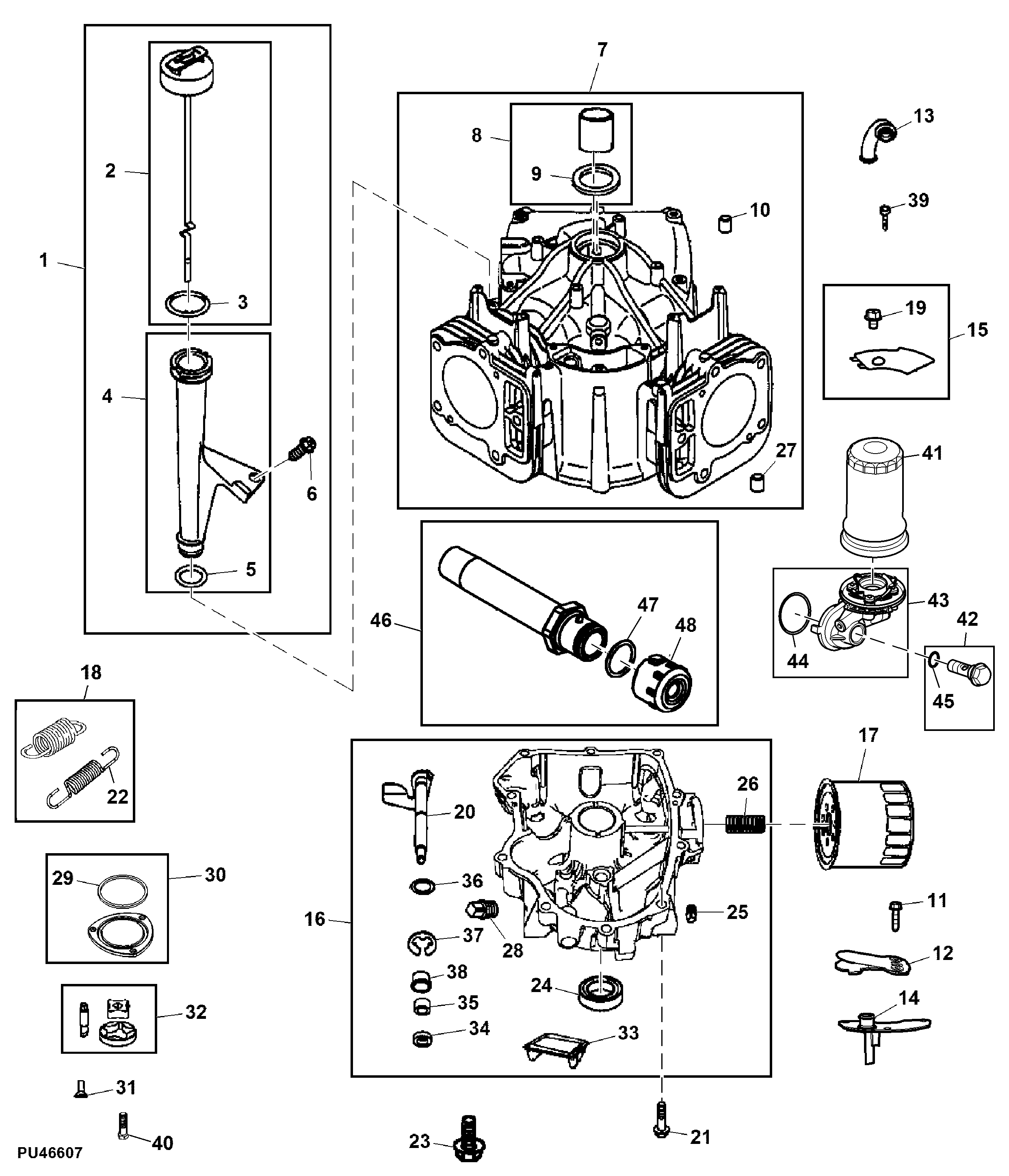

Cylinder Block, Crankcase and Oil Filter (700001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AUC14663	1	Dipstick Tube	SUB FOR UC11104 OR LG499602
2	LG691036	1	Dipstick	-
3	LG691031	1	O-Ring	Dipstick
4	UC19917	1	Dipstick Tube	Dipstick SUB FOR LG691037
5	LG691032	1	Seal	Dipstick Tube
6	M153266	1	Screw	USE WITH MIA13104 OR AUC10155 OR AUC10177 OR AUC13951
6	MIU14619	1	Screw	USE WITH AUC14310
7	MIA13208	1	Cylinder	-
8	MIA11778	1	Seal Kit	-
9	LG391086S	1	Seal	Oil, Magneto Side
10	LG690959	6	Dowel Pin	-
11	MIU14448	1	Screw	-
12	MIU14445	1	Valve	Breather
13	MIU14443	1	Tube	-
14	MIU14444	1	Cover	Breather
15	MIA13077	1	Plate	-
16	MIA13209	1	Reservoir	Crankcase USE WITH MIA13104 OR AUC10177 OR AUC13951
16	AUC14331	1	Engine Kit	Crankcase USE WITH AUC14310
17	AM125424	1	Oil Filter	USE WITH MIA13104 OR AUC10155 OR AUC10177 OR AUC13951
18	MIA13210	1	Spring Kit	USE WITH MIA13104 OR AUC10155
18	AUC13757	1	Spring Kit	USE WITH AUC10177 OR AUC13951
19	MIU14464	1	Screw	-
20	LG691045	1	Crank	Governor
21	M142896	20	Screw	-
22	UC12134	1	Spring	USE WITH MIA13104 OR AUC10155 OR AUC14310 ; Governor Idle, Black
23	GX24210	4	Screw	-
24	MIU11958	1	Seal	Oil, PTO Side
25	15H638	1	Pipe Plug	1/8"
26	LG690954	1	Threaded Nipple	Oil Filter
27	UC12131	1	Pin	-
28	15H623	1	Pipe Plug	3/8"
29	MIU12153	1	Seal	Oil Pump Cover
30	MIA11464	1	Cover	Oil Pump
31	MIU12142	3	Screw	-
32	MIU12143	1	Oil Pump	-
33	MIU12140	1	Screen	Oil Pump
34	MIU11284	1	Seal	Governor Shaft
35	MIU12503	1	Bushing	Governor Crank
36	M142280	1	Washer	-
37	M142286	2	Retainer	-
38	M142282	2	Bushing	-
39	LG691108	7	Screw	-
40	LG692125	1	Cap Screw	-
41	AUC14214	1	Oil Filter	For Europe USE WITH AUC14310
41	AUC13184	1	Oil Filter	For South America USE WITH AUC14310
42	AUC11008	1	Adapter Fitting	USE WITH AUC14310
43	AUC16482	1	Filter Head	Oil Filter USE WITH AUC14310 OR AUC15564; SUB FOR AUC14908
44	UC21229	1	Sealing Ring	-
45	L77584	1	O-Ring	-
46	AM131611	1	Tube	Oil Drain
47	T77932	1	O-Ring	-
48	M144897	1	Cap	Oil Drain

Cylinder Block, Crankcase and Oil Filter (700001 - )

Нет текстового описания
