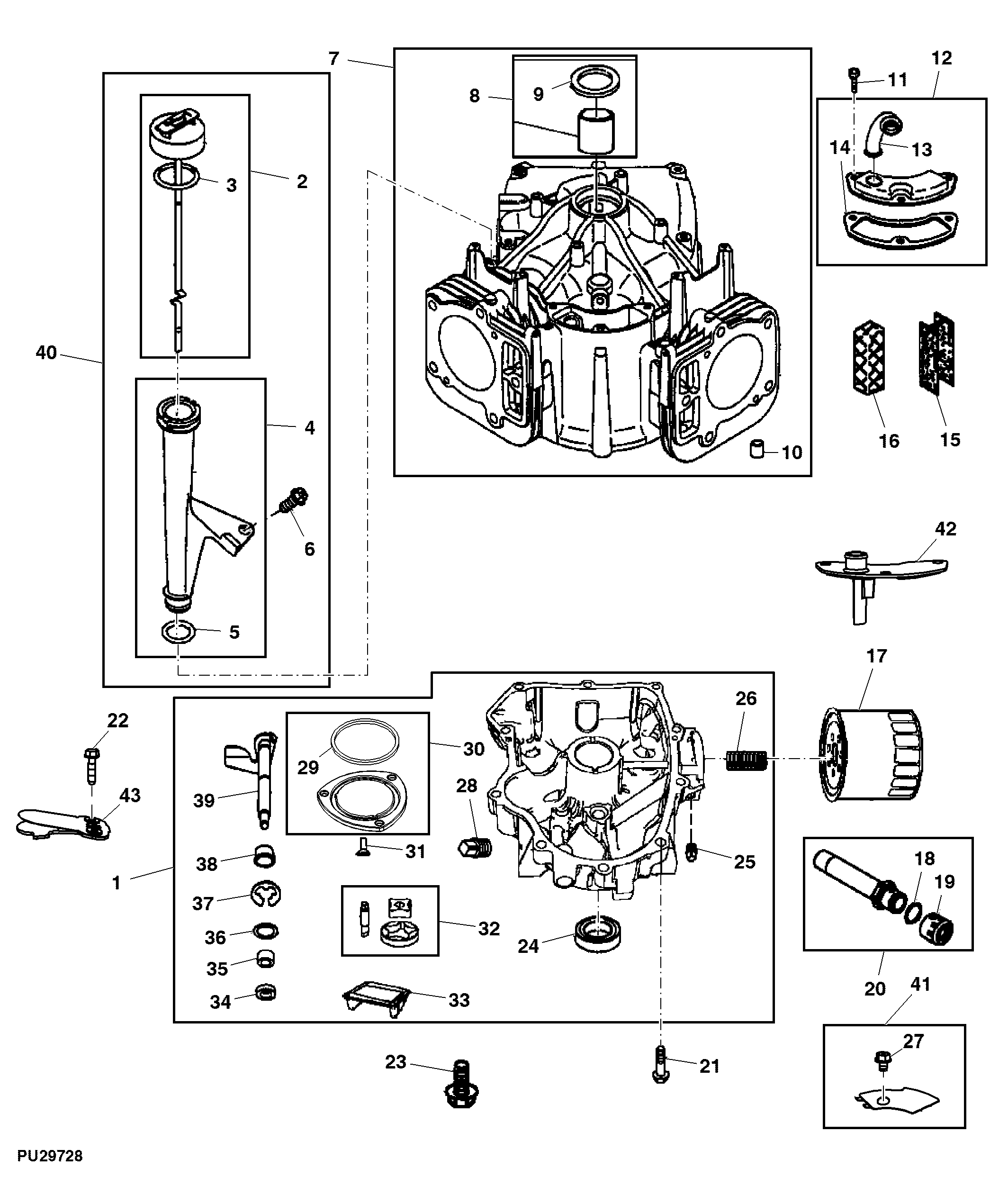

Cylinder Block, Crankcase and Oil Filter ( - 700000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	MIA11584	1	Reservoir	Sump, Engine
2	LG691036	1	Dipstick	-
3	LG691031	1	O-Ring	-
4	UC19917	1	Dipstick Tube	SUB FOR LG691037
5	LG691032	1	Seal	-
6	M153266	1	Screw	-
7	MIA11345	1	Cylinder	ORDER MIA12493
7	MIA12493	1	Cylinder	ORDER MIA13087
7	MIA13087	1	Cylinder Block	ALSO ORDER MIA13077, MIU14443, MIU14444, MIU14445, MIU14464 AND MIU14448
8	MIA11778	1	Seal Kit	-
9	LG391086S	1	Seal	-
10	LG690959	6	Dowel Pin	-
11	LG691108	3	Screw	-
12	MIA10872	1	Breather	-
13	MIU14443	1	Tube	SUB FOR MIU11280
14	LG690937	1	Gasket	Breather
15	LG690957	1	Retainer	-
16	MIU11502	1	Breather	-
17	AM125424	1	Oil Filter	-
18	T77932	1	O-Ring	-
19	M144897	1	Cap	-
20	AM131611	1	Tube	Oil Drain
21	M142896	10	Screw	-
22	MIU14448	1	Screw	-
23	GX24210	4	Screw	-
23	GC00331	4	Screw	ORDER GX24210; Engine Mounting
24	MIU11958	1	Seal	Oil
25	15H638	1	Pipe Plug	1/8"
26	LG690954	1	Threaded Nipple	Oil Filter
27	MIU14464	1	Screw	-
28	15H623	1	Pipe Plug	3/8"
29	MIU12153	1	Seal	-
30	MIA11464	1	Cover	Oil Pump
31	MIU12142	3	Screw	-
32	MIU12143	1	Oil Pump	-
33	MIU12140	1	Screen	Oil Pump
34	MIU11284	1	Seal	Governor Shaft
35	MIU12503	1	Bushing	Governor Crank
36	M142280	1	Washer	-
37	M142286	2	Retainer	-
38	M142282	2	Bushing	Governor Crank
39	LG691045	1	Crank	Governor
40	AUC14663	1	Dipstick Tube	SUB FOR UC11104 OR LG499602
41	MIA13077	1	Plate	-
42	MIU14444	1	Cover	Breather
43	MIU14445	1	Valve	Breather

Cylinder Block, Crankcase and Oil Filter ( - 700000)
