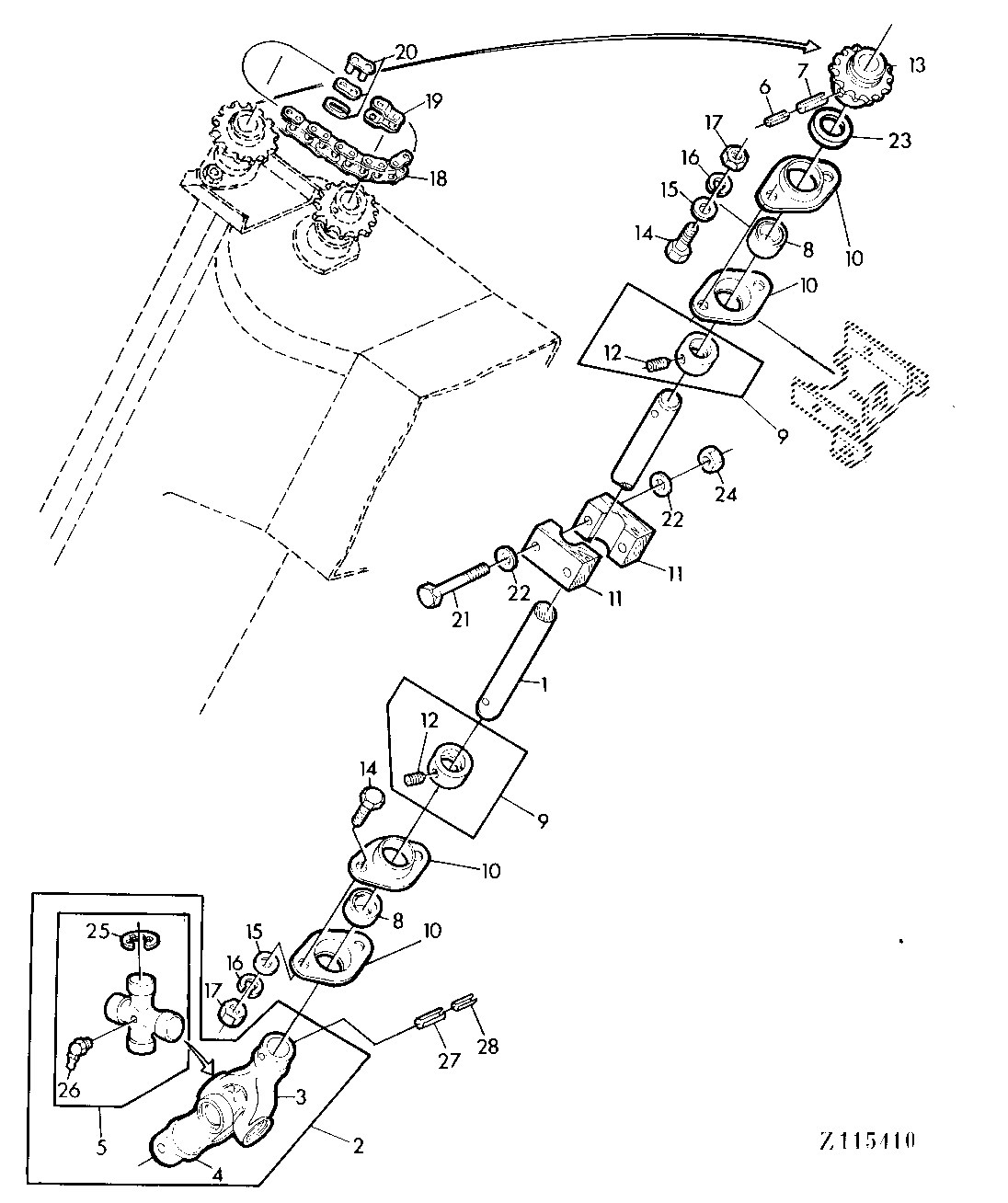

HYDRAULIC UNLOADING AUGER DRIVE [05C14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	Z33528	1	SHAFT	(ORD AZ38318, Z11683, Z48034, 34M7048, 34M7050)
2	AZ28867	1	UNIVERSAL JOINT	(ORD AZ32225)
2	AZ32225	1	UNIVERSAL JOINT	(SUB FOR AZ28867)
3	Z11268	1	UNIVERSAL JOINT YOKE	(FOR AZ28867)
3	Z11457	1	UNIVERSAL JOINT YOKE	(FOR AZ32225)
4	Z11269	1	UNIVERSAL JOINT YOKE	(FOR AZ28867)
4	Z11456	1	UNIVERSAL JOINT YOKE	(FOR AZ32225)
5	AZ28866	1	SPIDER	(FOR AZ28867)
5	AZ32226	1	SPIDER	(FOR AZ32225)
6	34M7043	1	Spring Pin	6X45MM
7	34M7070	1	Spring Pin	10X45MM
8	JD39103	2	BALL BEARING	-
9	AZ10045	2	Eccentric Locking Collar	-
10	Z30026	4	PRESSED FLANGED HOUSING	-
11	Z33527	2	BEARING	-
12	AZ19844	2	SET SCREW	KIT
13	Z11152	1	CHAIN SPROCKET	Z = 18 (FOR Z33528)
14	19M7166	1	Cap Screw	M10X20
15	24M7040	1	Washer	11MM
16	12M7013	1	LOCK WASHER	10MM
17	14M7140	1	Nut	M10
18	AZ36600	1	ROLLER CHAIN	INCL KEYS 19,20, L = 35 (SUB FOR AZ32303)
18	AZ26761	1	LINK CHAIN	INCL KEYS 19,20, L = 37
19	AL14908	1	CHAIN LINK	(FOR AZ32303)
19	AZ36221	1	CHAIN LINK	(FOR AZ36600)
20	AL14211	1	CHAIN LINK	(FOR AZ32303)
20	AZ36220	1	CHAIN LINK	(FOR AZ36600)
21	19M7270	2	Cap Screw	M8X65
22	24M7036	1	Washer	9MM
23	Z26248	1	WASHER	-
24	14M7166	1	Lock Nut	M8
25	Z32725	4	SNAP RING	(FOR AZ28866)
25	Z43195	4	SNAP RING	(FOR AZ32226)
26	58M5577	1	Lubrication Fitting	M8X1 (FOR AZ28866)
26	58M7010	1	Lubrication Fitting	M10X1 (FOR AZ32226)
27	34M7054	1	Spring Pin	10X50MM
28	34M7044	1	Spring Pin	6X50MM
