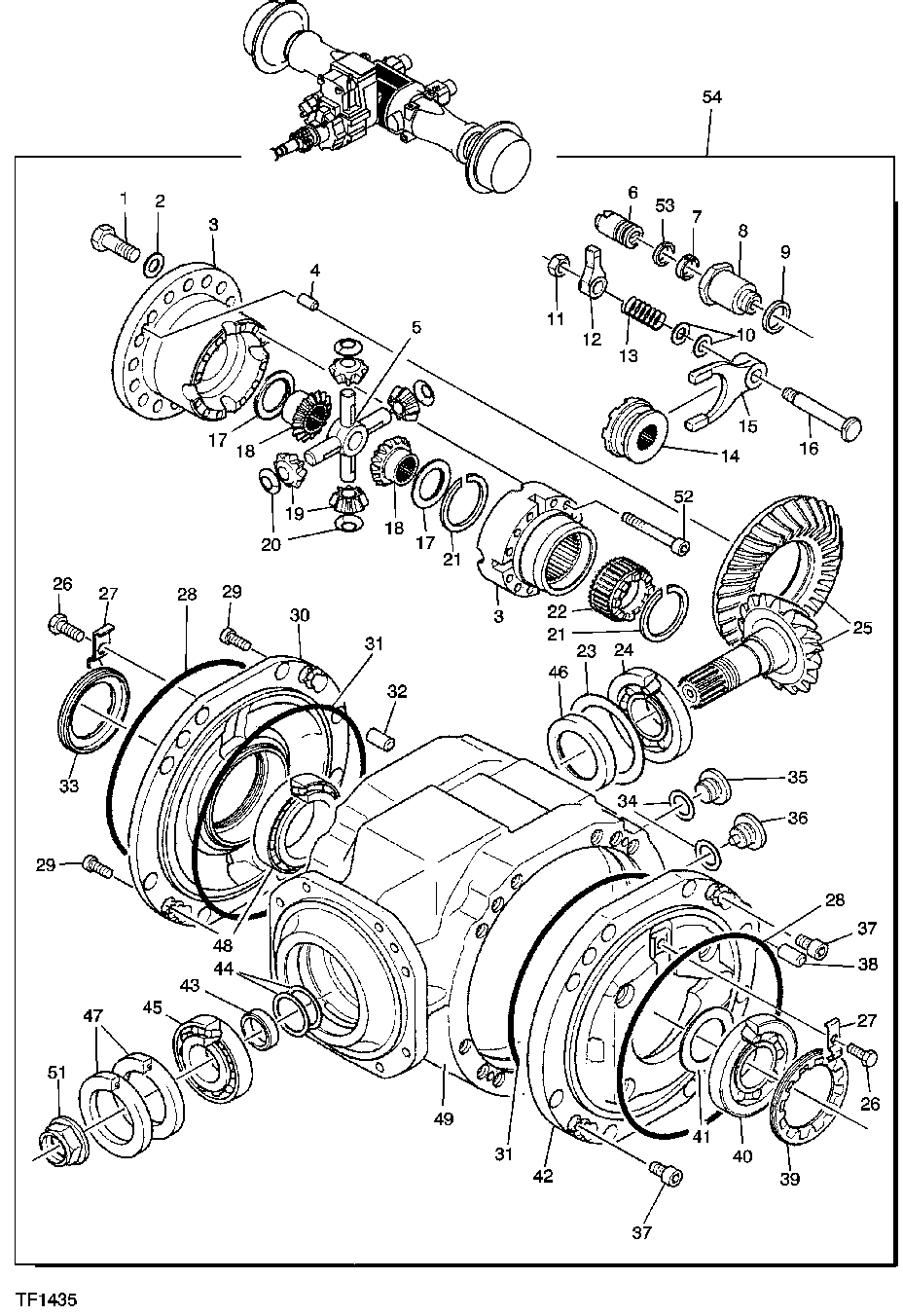

REAR AXLE DIFFERENTIAL LOK 127 [01D07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7488	16	Cap Screw	USE WITH LOCTITE 262
2	F009375	16	Washer	-
3	F064289	1	Housing	-
4	F004738	2	Pin	-
5	F043648	1	Shaft	-
6	F050812	1	Piston	-
7	F009469	1	Seal	-
8	F058934	1	Cylinder	-
9	F009465	1	Sealing Ring	-
10	F045259	1	Shim Kit	S=1,5/2,0/2,5/3,0
11	F023666	1	Nut	-
12	-	1	Part 12	-
13	F009394	1	Spring	-
14	F004977	1	Snap Ring	-
15	F009430	1	Fork	-
16	F065282	1	Gearshift Lever	INCLUDES ITEM 12
17	F045260	1	Shim Kit	S=1,5/1,7/2,0/2,2
18	F049364	2	Gear	-
19	F049365	4	Gear	-
20	F044145	4	Runner	-
21	F004757	2	Snap Ring	-
22	F049366	1	Sleeve	-
23	F045261	1	SHIM KIT	S=3,0/2,75/2,5
24	F009444	1	BEARING	-
25	F064290	1	Ring Gear And Pinion	LOK 127/3. Z=27/6, TO NAF SERIAL NO. -0841 (NLA, ORDER F072194 AND F072195 INSTEAD)
25	F072194	1	Ring Gear And Pinion	LOK 127/4. Z=27/6, FROM NAF SERIAL NO. 0842-
26	F004638	2	Screw	-
27	F004891	2	Lock Washer	-
28	F025234	2	O-Ring	-
29	F004654	2	SCREW	-
30	F056899	1	FLANGE	-
31	F003308	2	O-Ring	-
32	F004740	1	PIN	-
33	F034624	1	Nut	-
34	F018108	2	Washer	-
35	F025332	1	Plug	-
36	F025228	1	Plug	-
37	19M9703	2	Screw	M10 X 20
38	F035794	1	Dowel Pin	-
39	F004814	1	Nut	-
40	F004688	1	Tapered Roller Bearing	-
41	F004751	1	Snap Ring	-
42	F056898	1	FLANGE	-
43	F023659	1	SPACER RING	-
44	F045262	1	Shim Kit	S=0,96 - 1,44
45	F009443	1	BEARING	-
47	F011427	2	Seal	-
48	F035796	1	Tapered Roller Bearing	-
49	F064291	1	Housing	-
51	F025289	1	NUT	LOK 127/3. TO NAF SERIAL NO. -0841 (NLA, ORDER F072194 AND F072195 INSTEAD)
51	F072195	1	Nut	LOK 127/4. FROM NAF SERIAL NO. 0842-
52	F004659	12	Cap Screw	-
53	F050813	1	Seal	-
54	F069667	1	Differential	INCL ITEMS 1-53
54	F071095	1	DIFFERENTIAL	INCL. ITEMS 3, 5, 17-22, 52

REAR AXLE DIFFERENTIAL LOK 127 [01D07]
