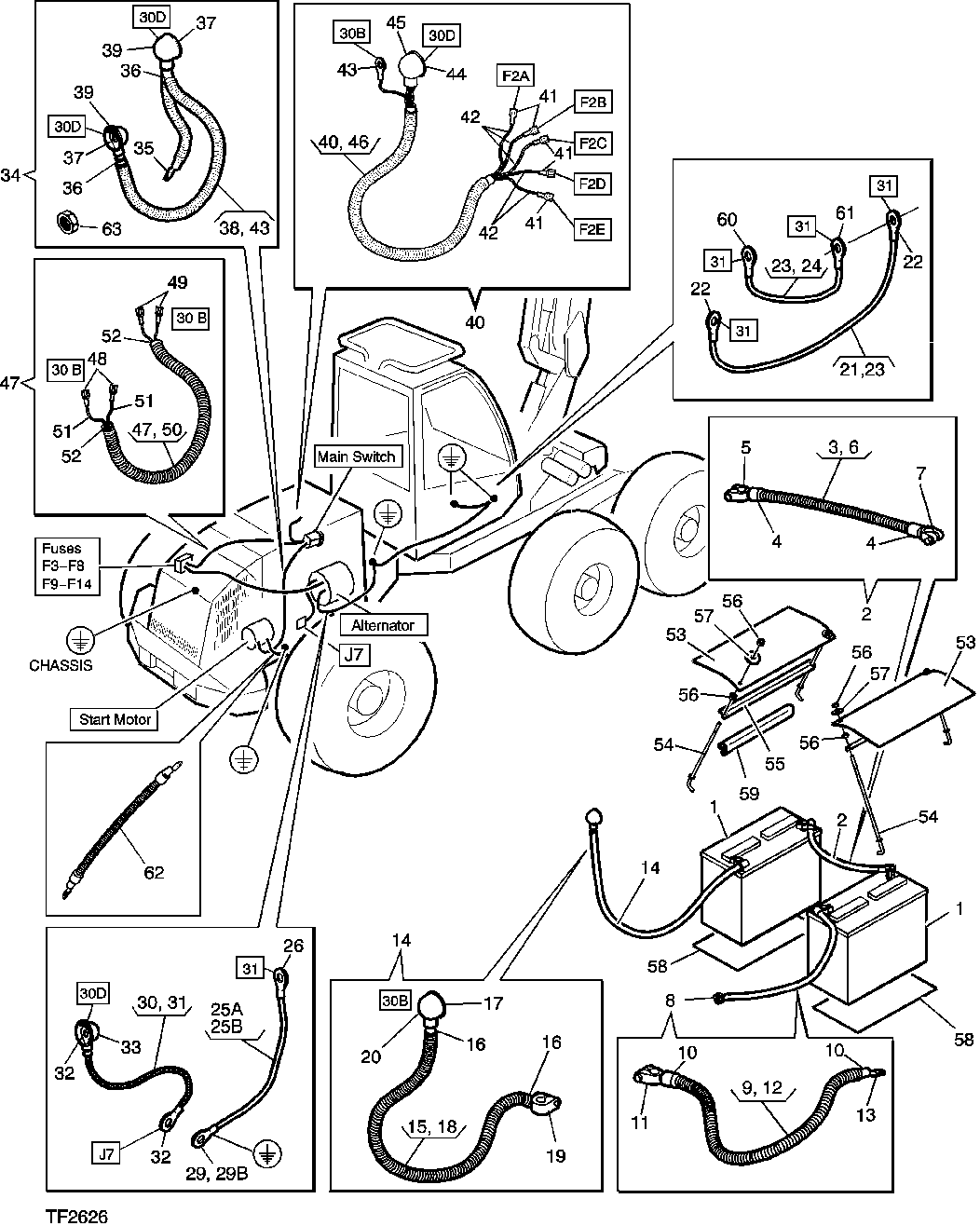

ELECTRICAL MOUNTING, MAIN CURRENT AND BATTERIES [02H16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F058325	2	BATTERY	-
2	F604051	1	CABLE	INCLUDES ITEMS 3-7
3	-	1	Part 3	-
4	-	2	Part 4	-
5	F058022	1	Clamp	-
6	-	1	Part 6	F020295 2,2 M, BULK MATERIAL
7	F058023	1	Clamp	-
8	F604035	1	CABLE	INCLUDES ITEMS 9-13
9	-	1	Part 9	-
10	-	2	Part 10	-
11	F058022	1	Clamp	-
12	-	1	Part 12	F020295 2,2 M, BULK MATERIAL
13	F043276	1	Elec. Connector Terminal	-
14	F604031	1	CABLE	INCLUDES ITEMS 15-20
15	-	1	Part 15	-
16	-	2	Part 16	-
17	F043276	1	Elec. Connector Terminal	-
18	-	1	Part 18	F020295 2,2 M, BULK MATERIAL
19	F058023	1	Clamp	-
20	F013919	1	Boot	-
21	F046217	1	WIRING HARNESS	INCLUDES ITEMS 22, 23
22	F043275	2	Elec. Connector Terminal	-
23	-	1	Part 23	-
24	F625133	1	Wiring Harness	INCLUDES ITEMS 22, 23
26	F043275	1	Elec. Connector Terminal	-
29	F040311	1	CABLE LUG	-
30	F626532	1	Wiring Harness	INCL ITEMS 31-33, J7 - ALTERNATOR 30D
31	-	1	Part 31	-
32	F040311	2	CABLE LUG	-
33	F033387	1	Guard	-
34	F626531	1	Wiring Harness	INCL ITEMS 35-39, MAIN SWITCH - START MOTOR
35	F040311	1	CABLE LUG	-
36	-	2	Part 36	-
37	F043276	2	Elec. Connector Terminal	-
38	-	1	Part 38	F020295 2,2 M, BULK MATERIAL
39	F013919	2	Boot	-
40	F604053	1	CABLE	INCLUDES ITEMS 41-46
40	-	1	Part 41	SEE PAGE 1671-3A
41	F040310	5	SLEEVE	-
42	-	5	Part 43	-
43	F040621	1	Elec. Connector Terminal	-
44	F043275	1	Elec. Connector Terminal	-
45	F013919	1	Boot	-
46	-	1	Part 47	-
47	F604055	1	CABLE	INCLUDES ITEMS 48-52
47	-	1	Part 49	SEE PAGE 1671-3A
48	F008089	2	CABLE LUG	-
49	F040310	2	SLEEVE	-
50	-	1	Part 52	F061719 L=10 M, BULK MATERIAL
51	-	2	Part 53	-
52	-	2	Part 54	-
53	F611187	2	RUBBER PLATE	-
54	F601899	4	SCREW BAR	-
55	F601897	2	FASTENING	-
56	14M7624	8	Nut	M8
57	24M7482	4	Washer	9 X 28 X 3 MM (0.354" X 1.102" X 0.118")
58	F611186	2	RUBBER PLATE	-
59	F060205	2	SHRINKING TUBE	-
60	F013820	1	Elec. Connector Terminal	-
61	F040608	1	Elec. Connector Terminal	-
62	F624873	1	Wiring Harness	(REPLACES F625303)
63	14M7031	1	Nut	M12
25A	F625137	1	Wiring Harness	-
25B	F619290	1	Wiring Harness	-
29B	F040608	1	Elec. Connector Terminal	-

ELECTRICAL MOUNTING, MAIN CURRENT AND BATTERIES [02H16]
