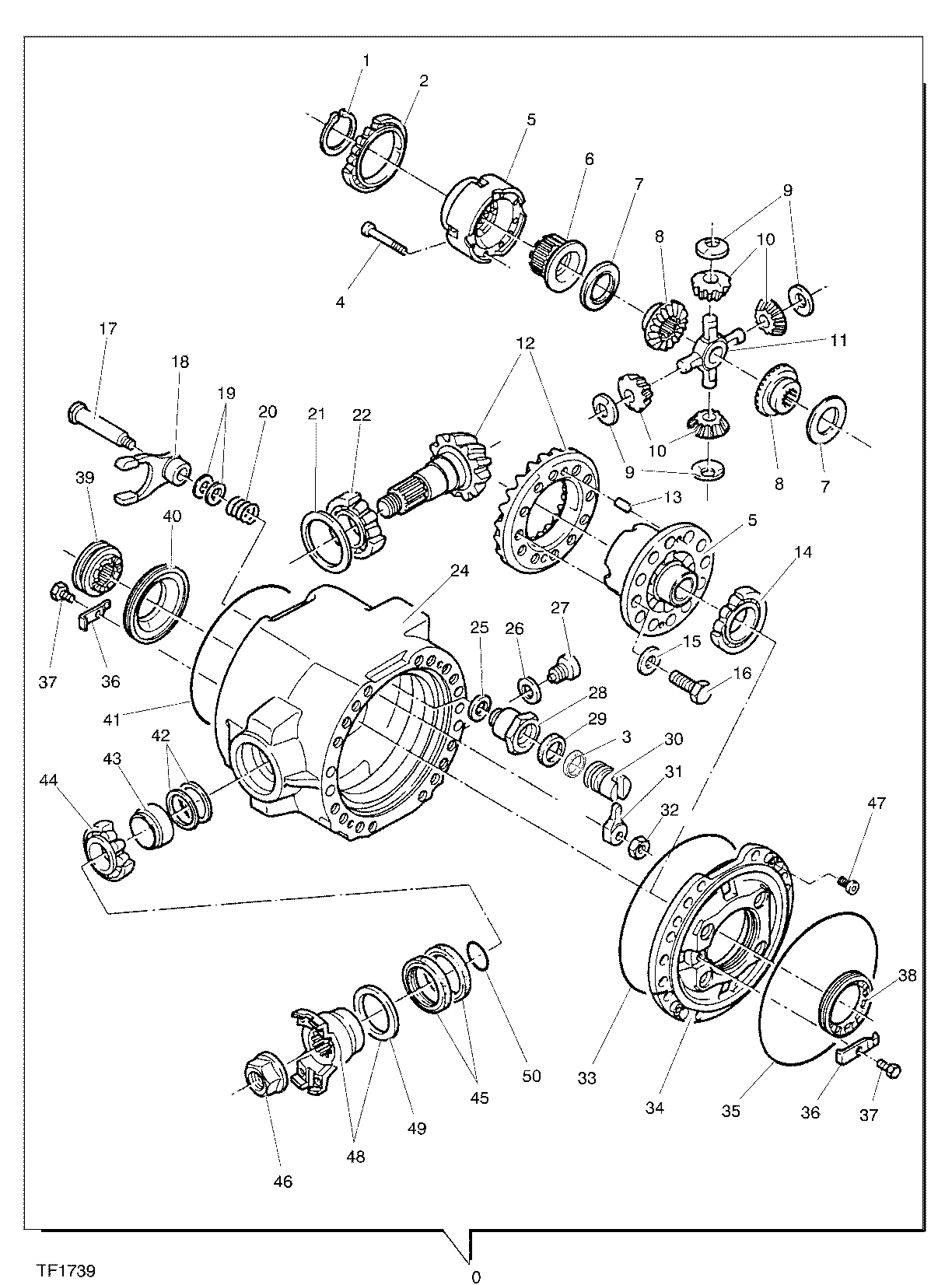

POWER TRAIN FRONT AXLE, DIFFERENTIAL F058837 4510 4 TF1739 [TF1739]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F034674	1	DIFFERENTIAL	-
1	F003362	1	CIRCLIP	-
2	F038832	1	Bearing	-
3	F050813	1	Seal	-
4	F045326	12	Cap Screw	-
5	F053684	1	Differential	-
6	F025291	1	SLEEVE	-
7	F057878	1	Shim Kit	-
7	F025196	1	BEARING PLATE	-
7	F025197	1	BEARING PLATE	-
7	F025198	1	BEARING PLATE	-
7	F025219	1	Shim	-
8	F025292	2	GEAR	-
9	F042826	4	Thrust Washer	-
10	F025222	4	Gear	-
11	F025223	1	Shaft	-
12	F025380	1	Ring Gear And Pinion	-
13	F004738	2	Pin	-
14	F004682	1	BEARING	-
15	F025225	12	WASHER	-
16	F047313	12	SCREW	-
17	F034612	1	SHAFT	-
18	F009430	1	Fork	-
19	F045259	1	Shim Kit	-
19	F009378	1	Shim	-
19	F009380	1	Shim	-
19	F009383	1	Shim	-
20	F009394	1	Spring	-
21	F025201	1	SPACER	-
21	F025208	1	SPACER	-
21	F025205	1	SPACER	-
21	F025203	1	SPACER	-
22	F009443	1	BEARING	-
24	F038852	1	DIFFERENTIAL HOUSING	-
25	F009465	1	Sealing Ring	-
26	F018108	1	Washer	-
27	F025228	1	Plug	-
28	F058934	1	Cylinder	-
29	F009469	1	Seal	-
30	F050812	1	Piston	-
31	F009403	1	LOCKING PLATE	-
32	F023666	1	Nut	-
33	F003308	1	O-Ring	-
34	F025230	1	FLANGE	-
35	F025234	1	O-Ring	-
36	F004891	2	Lock Washer	-
37	F004638	2	Screw	-
38	F034624	1	Nut	-
39	F034611	1	SLIDE RING	-
40	F059012	1	Nut	-
41	F025234	1	O-Ring	-
42	F025218	1	Shim	-
42	F025220	1	Shim	-
42	F025211	1	Shim	-
42	F025221	1	Shim	-
42	F025206	1	Shim	-
42	F025212	1	Shim	-
42	F025202	1	Shim	-
42	F025207	1	Shim	-
42	F025210	1	Shim	-
42	F025209	1	Shim	-
42	F025204	1	Shim	-
42	F025195	1	Shim	-
42	F025200	1	Shim	-
42	F058336	1	Shim Kit	-
43	F025235	1	SLEEVE	-
44	F025287	1	Bearing	-
45	F010199	2	Seal	-
46	F021149	1	Nut	-
47	F004654	2	SCREW	-
48	F025318	1	Flange	-
49	F025319	1	SPACER RING	-
50	F025320	1	O-RING	-

POWER TRAIN FRONT AXLE, DIFFERENTIAL F058837 4510 4 TF1739 [TF1739]
