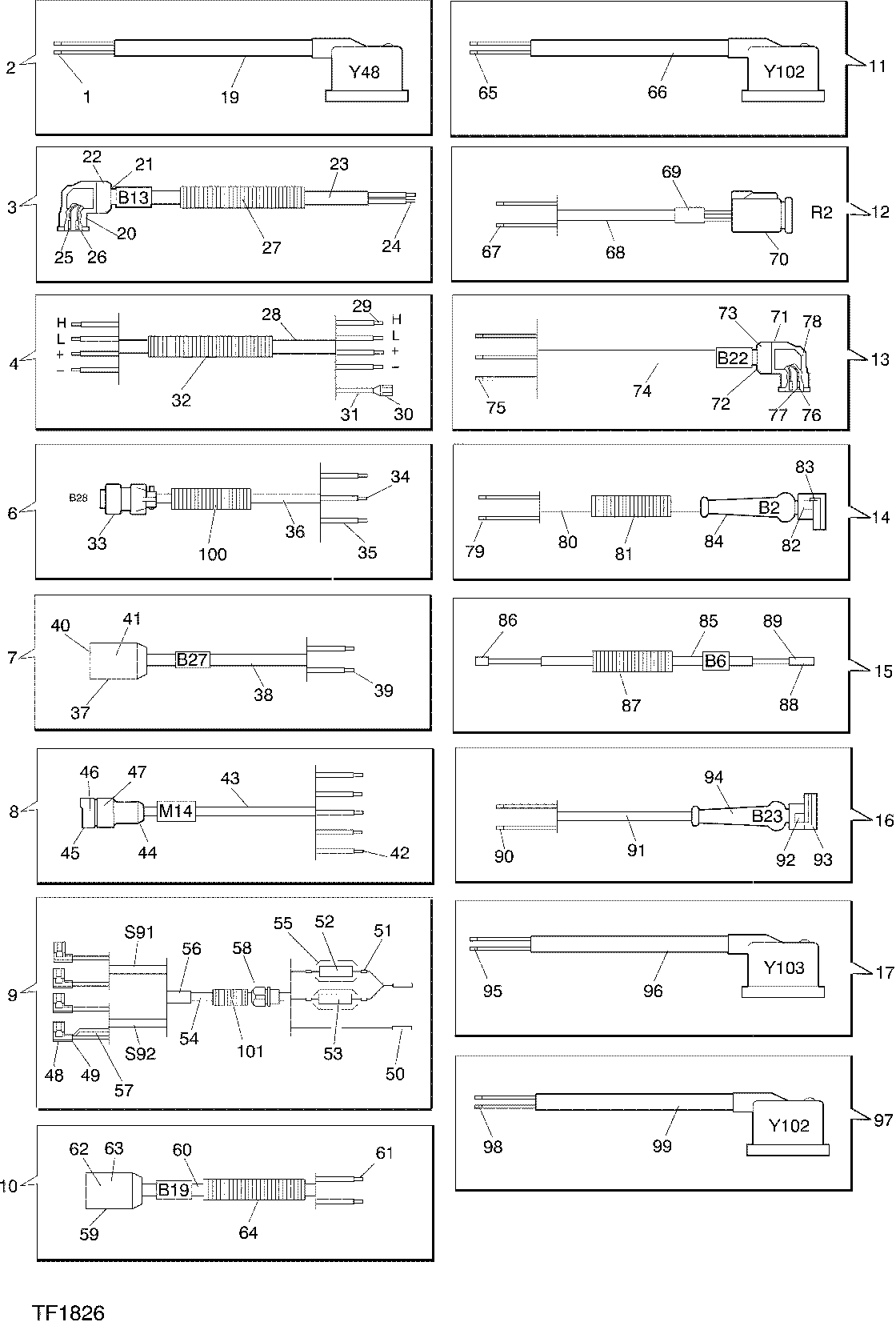

ELECTRICAL SYSTEM TMC - CABLES, DRIVE F058837 3210 4 TF1826 [TF1826]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F005250	2	CONNECTOR	-
2	F604069	1	CABLE	-
3	F604071	1	CABLE	-
4	F604084	1	CABLE	-
6	F604060	1	CABLE	-
7	F604072	1	CABLE	-
8	F604073	1	CABLE	-
9	F604074	1	CABLE	-
10	F604075	1	CABLE	-
11	F604077	1	CABLE	-
12	F604076	1	CABLE	-
13	F604079	1	CABLE	-
14	F604080	1	CABLE	-
15	F604082	1	CABLE	-
16	F604083	1	CABLE	-
17	F604358	1	CABLE	-
19	F027500	1	CABLE	-
20	F027028	1	ELBOW	-
21	F038303	1	Seal	-
22	F041007	1	NUT	-
23	-------	1	O-RING	-
24	F005250	2	CONNECTOR	-
25	F035198	2	CABLE LUG	-
26	F035197	2	SLEEVE	-
27	F061702	1	TUBE	-
28	-------	1	O-RING	-
29	F005250	8	CONNECTOR	-
30	F005260	2	Elec. Connector Terminal	-
31	-------	1	O-RING	-
32	F061702	1	TUBE	-
33	F057309	1	CONNECTOR HOUSING	-
34	F053303	3	Elec. Connector Terminal	-
35	-------	3	O-RING	-
36	-------	1	O-RING	-
37	F039978	1	PROTECTION	-
38	-------	1	O-RING	-
39	F005250	1	CONNECTOR	-
40	F005260	2	Elec. Connector Terminal	-
41	F035196	2	Sleeve	-
42	F005250	5	CONNECTOR	-
43	-------	1	O-RING	-
44	F033838	1	CABLE CLAMP	-
45	F015161	1	CONNECTOR	-
46	F017847	4	SLEEVE	-
47	F017846	1	CONNECTOR PIN	-
48	F044952	4	CABLE LUG	-
49	F044951	4	SLEEVE	-
50	F005250	2	CONNECTOR	-
51	F040510	4	CONNECTOR	-
52	F044421	1	RESISTOR	-
53	F044420	1	RESISTOR	-
54	-------	1	O-RING	-
55	-------	1	O-RING	-
56	-------	1	O-RING	-
57	-------	1	O-RING	-
58	F025216	1	CONDUIT ENTRY	-
59	F039978	1	PROTECTION	-
60	-------	1	O-RING	-
61	F005250	1	CONNECTOR	-
62	F005260	2	Elec. Connector Terminal	-
63	F035196	2	Sleeve	-
64	F061702	1	TUBE	-
65	F005250	2	CONNECTOR	-
66	F024868	1	CABLE	-
67	F005250	2	CONNECTOR	-
68	-------	1	O-RING	-
69	-------	1	O-RING	-
70	F052686	1	Electrical Connector Assy	-
71	F038305	1	Elbow Fitting	-
72	F038303	1	Seal	-
73	F041007	1	NUT	-
74	-------	1	O-RING	-
75	F005250	3	CONNECTOR	-
76	F038302	3	CABLE LUG	-
77	F038306	1	INSULATOR	-
78	F027021	1	GREASE	-
79	F005250	2	CONNECTOR	-
80	-------	1	O-RING	-
81	F061702	1	TUBE	-
82	F023007	2	SLEEVE	-
83	F024301	1	CONNECTOR	-
84	F040655	1	GASKET	-
85	-------	1	O-RING	-
86	F005250	2	CONNECTOR	-
87	F061702	1	TUBE	-
88	F005260	1	Elec. Connector Terminal	-
89	F035196	1	Sleeve	-
90	F005250	2	CONNECTOR	-
91	-------	1	O-RING	-
92	F023007	2	SLEEVE	-
93	F024301	1	CONNECTOR	-
94	F040655	1	GASKET	-
95	F005250	2	CONNECTOR	-
96	F024868	1	CABLE	-
97	F612574	1	CABLE	-
98	F005250	2	CONNECTOR	-
99	F024868	1	CABLE	-
100	F061702	1	TUBE	-
101	F061702	1	TUBE	-
