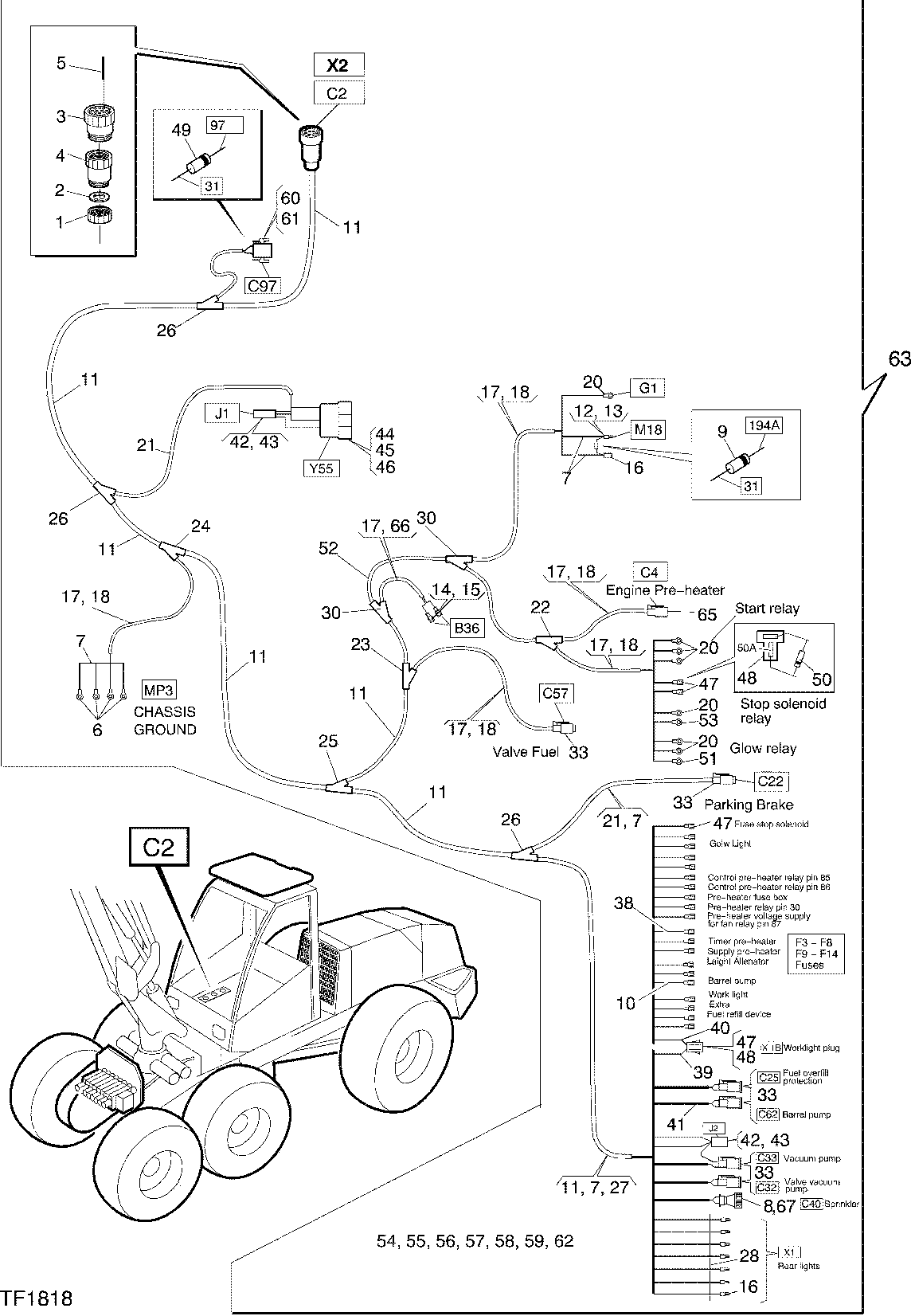

ELECTRICAL SYSTEM CABLE HARNESS F058837 3220 8 TF1818 [TF1818]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F038227	1	NUT	-
2	F038228	1	SEAL	-
3	F013788	1	CONNECTOR	-
4	F013784	1	EXTENDER	-
5	F055175	20	CONNECTOR	-
6	F055038	4	Elec. Connector Terminal	-
7	-------	1	O-RING	-
8	F023470	1	CONNECTOR	-
9	F008090	1	DIODE	-
10	-------	5	O-RING	-
11	-------	6	O-RING	-
12	F030083	1	SLEEVE	-
13	F037166	1	CONNECTOR HOUSING	-
14	F005260	2	Elec. Connector Terminal	-
15	F035196	2	Sleeve	-
16	F005250	8	CONNECTOR	-
17	-------	6	O-RING	-
18	-------	5	O-RING	-
20	F005258	7	Elec. Connector Terminal	-
21	-------	2	O-RING	-
22	F015155	1	Y-CONNECTION	-
23	F029610	1	Y-CONNECTION	-
24	F033456	1	Y-CONNECTION	-
25	F055870	1	Y-CONNECTION	-
26	F017478	3	Y-CONNECTION	-
27	-------	1	O-RING	-
28	F005320	1	Socket	-
29	F043922	1	CONNECTOR	-
30	F015156	2	Y-CONNECTION	-
33	F052686	6	Electrical Connector Assy	-
33	F056844	6	Electrical Connector Assy	-
37	-------	9	O-RING	-
38	-------	22	O-RING	-
39	-------	12	O-RING	-
40	-------	4	O-RING	-
41	-------	4	O-RING	-
42	F053271	2	Electrical Connector Assy	-
43	-------	2	O-RING	-
44	F034683	1	Seal	-
45	F052900	1	CONNECTOR	-
46	F040569	3	CONTACT	-
47	F008088	52	CABLE LUG	-
48	F017866	2	Electrical Connector Assy	-
49	F004575	1	DIODE	-
50	F015962	1	DIODE	-
51	F038504	1	CABLE LUG	-
52	-------	1	O-RING	-
53	F038440	1	Elec. Connector Terminal	-
54	F602694	1	CABLE	-
55	F602677	1	CABLE	-
56	F603704	1	CABLE	-
57	F603073	1	CABLE	-
58	F602676	1	CABLE	-
59	F604088	1	CABLE	-
60	F005263	1	Electrical Connector Assy	-
61	F005268	2	CABLE LUG	-
62	F604540	1	CABLE	-
63	F603755	1	CABLE HARNESS	-
64	F015010	1	BRACKET	-
65	F052603	1	MAT	-
66	-------	1	O-RING	-
67	F013785	3	Elec. Connector Terminal	-

ELECTRICAL SYSTEM CABLE HARNESS F058837 3220 8 TF1818 [TF1818]

Нет текстового описания
