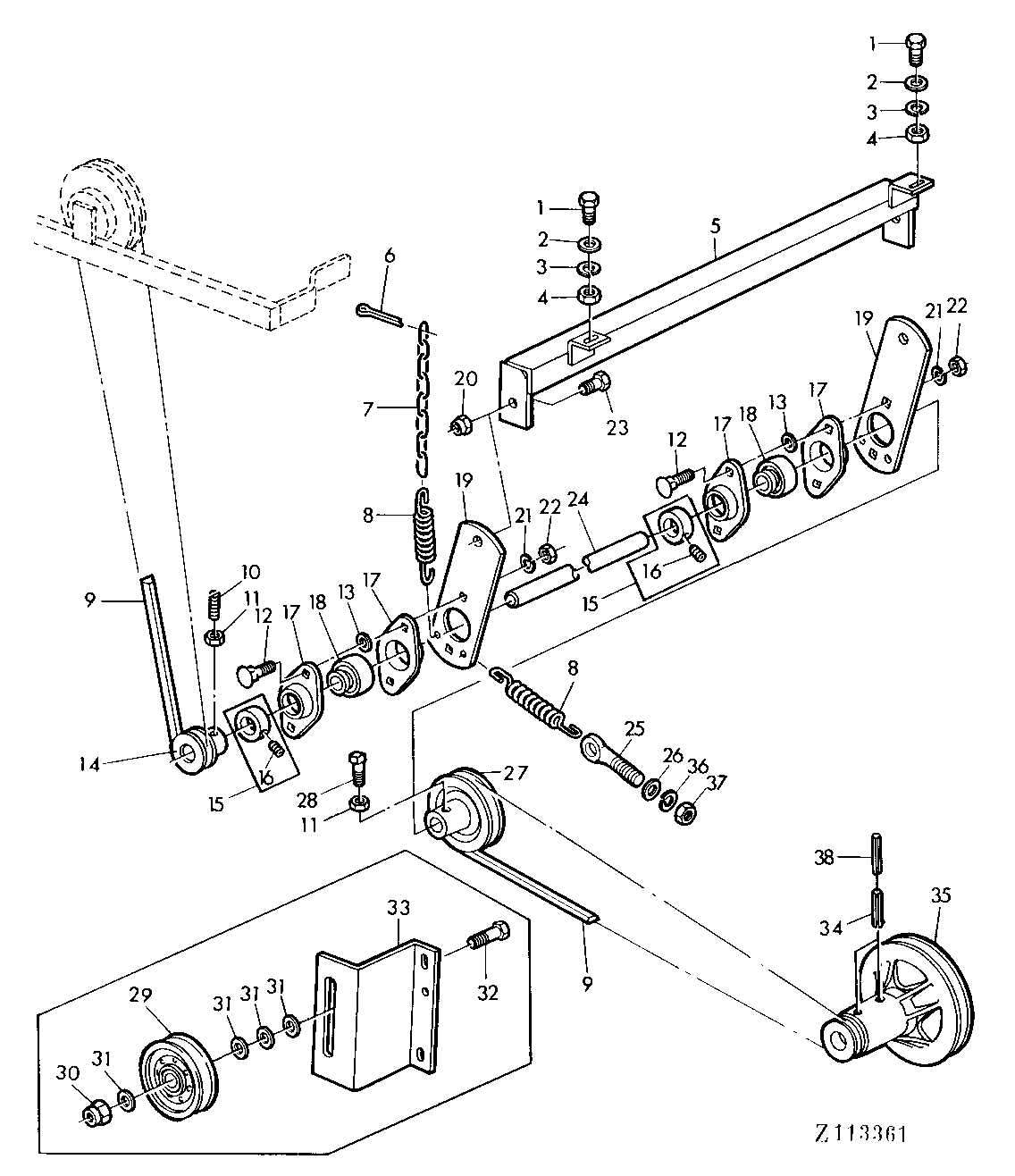

SUCTION FAN DRIVE-AIR CONDITIONING SYSTEM [05F11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7284	1	Cap Screw	M8X18
2	24M7036	1	Washer	9MM
3	12M7008	1	LOCK WASHER	8MM
4	14M7029	1	Nut	M8
5	AZ33960	1	HOLDER	-
6	11M7037	1	COTTER PIN	6,3X36MM
7	CA22540	1	LINK CHAIN	-
8	Z21232	2	Extension Spring	-
9	Z43863	2	V-BELT	LGTH = 1250 MM
10	22M7000	1	SET SCREW	M8X16
11	14M7203	1	NUT	M8
12	03M7092	1	Bolt	M6X16
13	24M7054	1	Washer	6,4MM
14	Z44115	1	PULLEY	-
15	AZ20030	2	ECCENTRIC LOCKING COLLAR	-
16	22M7079	2	Set Screw	M6X6
17	Z31372	4	PRESSED FLANGED HOUSING	-
18	AZ19970	2	BALL BEARING	-
19	Z43856	2	RETAINER	-
20	14M7166	1	Lock Nut	M8
21	12M7012	1	LOCK WASHER	6MM
22	14M7027	1	NUT	M6
23	19M7376	1	Cap Screw	M8X25
24	Z43859	1	SHAFT	-
25	Z36576	1	EYEBOLT	-
26	24M7210	1	Washer	5,8MM
27	Z11488	1	PULLEY	-
28	22M7148	1	Set Screw	(SUB FOR Z32432)
29	AZ33958	1	IDLER	(A) APPL
30	14M7169	1	Lock Nut	(A) M14, APPL
31	24M7085	4	Washer	(A) 15MM, APPL
32	19M7335	1	Cap Screw	(A) M14X45, APPL
33	Z43864	1	HOLDER	(A)
34	34M7049	2	Spring Pin	8X50MM
35	Z11831	1	PULLEY	(SUB FOR Z11489)
35	Z11630	1	GEAR CASE	-
36	12M7011	1	LOCK WASHER	5MM
37	14M7297	1	Nut	M5
38	34M7037	2	Spring Pin	5X50MM
