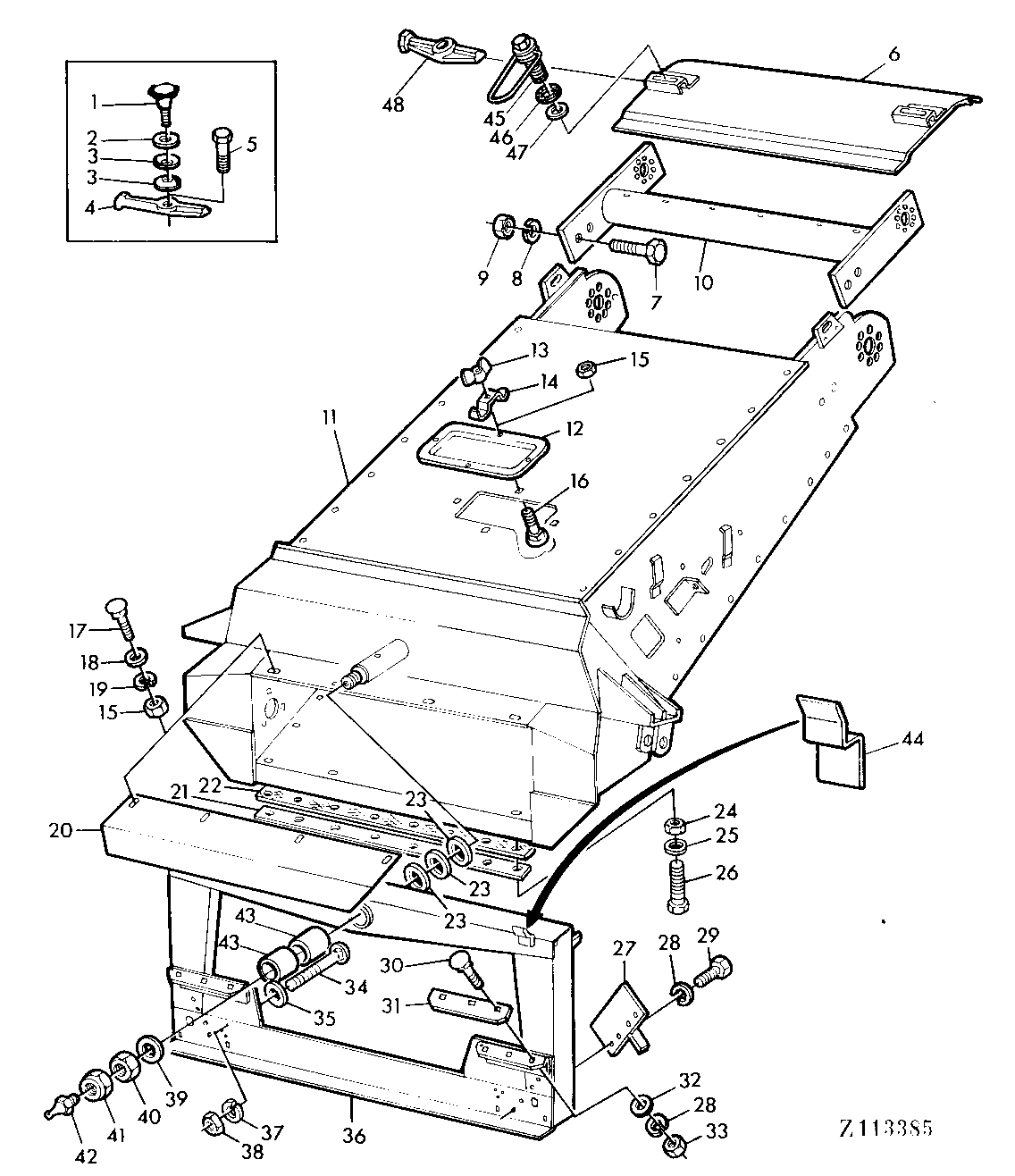

FEEDER CONVEYOR-HOUSING-LEVELING SYSTEM [05G01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ18662	2	HANDLE	(ORD AZ39183, Z11852, Z21157, Z35271)
2	24M7047	2	Washer	14MM
3	12M6191	4	Disk Spring	12,2MM
4	Z10681	2	LATCH	(ORD AZ39183, Z11852, Z21157, Z35271)
5	19M8298	1	CAP SCREW	AR, LH, M12X1,5X30
6	AZ38197	1	FLAP	(SUB FOR AZ23363)
7	19M7395	4	Cap Screw	M16X40
8	12M7017	5	LOCK WASHER	16MM
9	14M7142	4	Nut	M16
10	AZ34079	1	STABILIZER	-
11	AZ40291	2	CONVEYOR	(SUB FOR AZ34338) (ORD W/ (2) AZ38076 (2) Z24801, (4) 14M7170)
12	Z20713	1	Cover	-
13	14M7020	1	Wing Nut	M8
14	Z20367	4	Clamp	-
15	14M7029	1	Nut	M8
16	03M7054	1	Bolt	M8X20
17	03M7128	1	Bolt	M8X20
18	24M7036	1	Washer	9MM
19	12M7008	1	LOCK WASHER	8MM
20	Z35476	1	SHEET	-
21	Z37815	1	REINFORCEMENT	-
22	Z37812	1	GASKET	-
23	24M6827	1	Washer	40X50X1MM
24	14M7165	1	Lock Nut	M6
25	24M7088	1	Washer	6,6MM
26	19M7160	1	Cap Screw	M6X30
27	AZ25465	2	GUIDE	-
28	12M7013	1	LOCK WASHER	10MM
29	19M2552	8	SCREW	3/8"X1-1/8"
30	03M7084	1	BOLT	M10X25
31	Z36766	2	STRIPPER	-
32	24M7040	1	Washer	11MM
33	14M7140	1	Nut	M10
34	03M7127	4	Bolt	M12X40
35	24M7102	4	Washer	14MM
36	AZ24399	1	FRAME	-
37	12M7014	2	Lock Washer	12MM
38	14M7031	2	Nut	M12
39	24M7202	1	Washer	31MM
40	14M7261	1	Nut	M30
41	14M7176	1	Lock Nut	M30
42	58M7009	1	Lubrication Fitting	M10X1
43	U13486	2	BUSHING	-
44	Z35149	1	HOLDER	-
45	AZ39183	2	Screw	(SUB FOR AZ18662)
46	Z35271	2	Bushing	-
47	Z21157	2	Washer	-
48	Z11852	2	Retainer	(SUB FOR Z10681)
