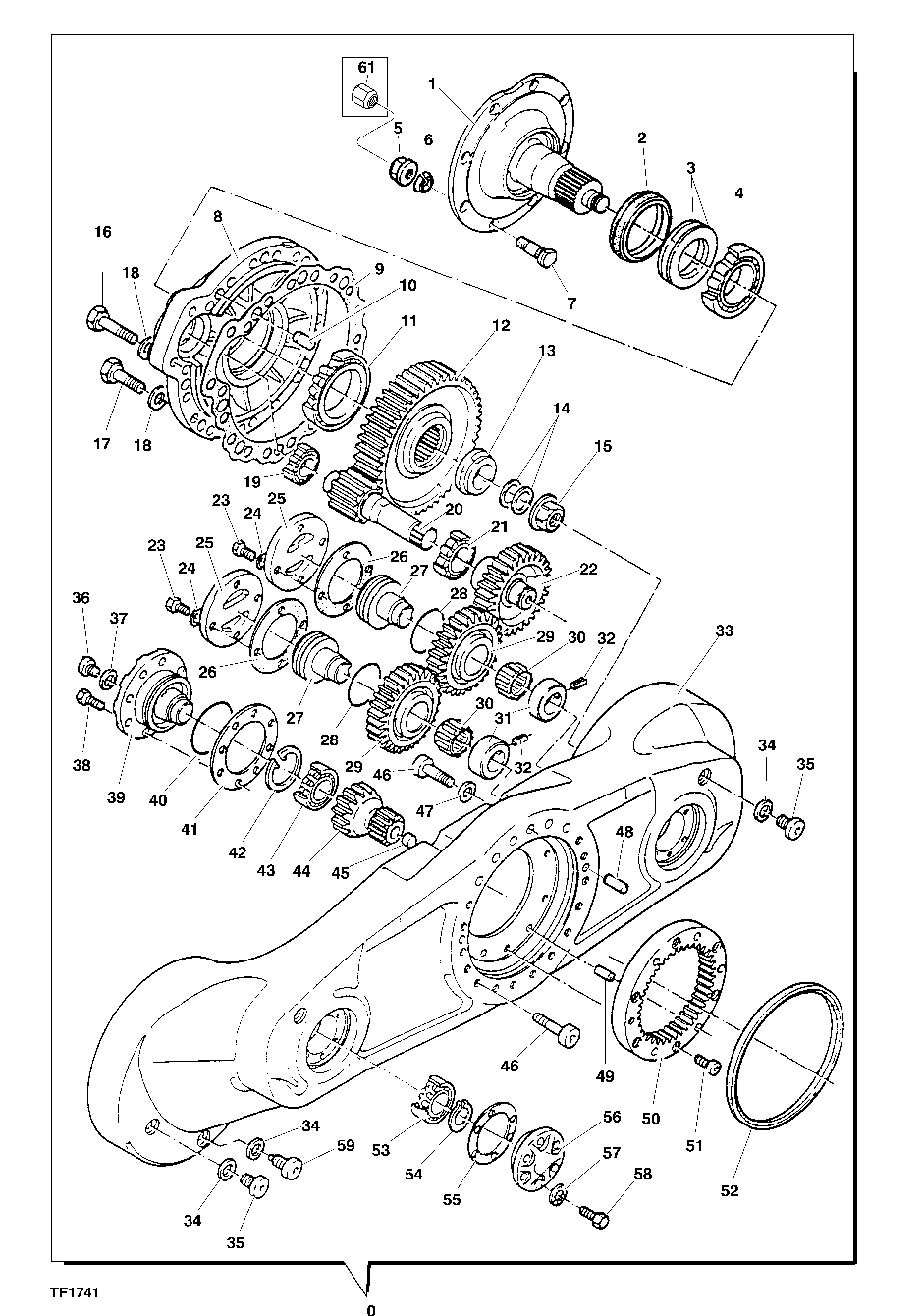

FRONT AXLE, BOGGIE SHAFT ASSY [01A14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F034623	2	BOGIE HOUSING ASSY	ITEMS 1-61
1	F034629	4	FLANGE SHAFT	-
2	F004721	4	Seal	-
3	F009363	4	Ring	-
4	F009445	4	Bearing	-
5	F004678	32	WHEEL NUT	INCLUDES ITEM 6
6	F004736	32	Lock Washer	-
7	F025179	32	Wheel Bolt	-
8	F034630	4	Housing	-
9	F025181	4	GASKET	-
10	F025340	28	Pin	-
11	F003810	4	Tapered Roller Bearing	-
12	F025341	4	GEAR	-
13	F025342	4	Spacer	-
14	F058337	1	SHIM KIT	S= 1.25-2.5
15	F021149	4	Nut	-
16	F025356	16	Self-Locking Screw	-
17	F025357	60	Self-Locking Screw	-
18	F009376	76	WASHER	-
19	F025361	4	Cylindrical Roller Bearing	-
20	F050814	4	SHAFT	-
20	F045344	4	Bushing	-
21	F025361	4	Cylindrical Roller Bearing	-
22	F025362	4	GEAR	-
23	F011421	32	SCREW	-
24	F025363	32	Washer	-
25	F025364	8	CAP	-
26	F025365	8	GASKET	-
27	F025366	8	Shaft	-
28	F025152	8	O-RING	-
29	F025153	8	Gear	-
30	F025155	8	BEARING	-
31	F025156	8	Spacer	-
32	F025157	8	SPRING PIN	-
33	F025158	2	BOGIE HOUSING	-
34	F009465	12	Sealing Ring	-
35	F009438	8	Plug	-
36	F009439	2	Plug	-
37	F009463	2	Seal	-
38	F025159	16	Self-Locking Screw	-
39	F025160	2	CAP	-
40	F025162	2	O-RING	-
41	F062283	1	SHIM	-
42	F025164	2	CIRCLIP	-
43	F025165	2	BEARING	-
44	F025166	2	GEAR	-
45	F025324	2	Bolt	-
46	F025167	40	SCREW	-
47	F025168	12	Washer	-
48	F004740	4	PIN	-
49	F025340	8	Pin	-
50	F025169	2	Gear	-
51	F025170	12	Self-Locking Screw	-
52	F045343	2	Seal	-
53	F025175	4	BEARING	-
54	F025176	4	Snap Ring	-
55	F025177	4	Gasket	-
56	F025178	4	Cap	-
57	F004734	24	Retainer	-
58	F003532	24	SCREW	-
59	F010163	4	Plug	-
61	F003735	32	NUT	ALTERNATIVE ITEMS 5 AND 6

FRONT AXLE, BOGGIE SHAFT ASSY [01A14]
