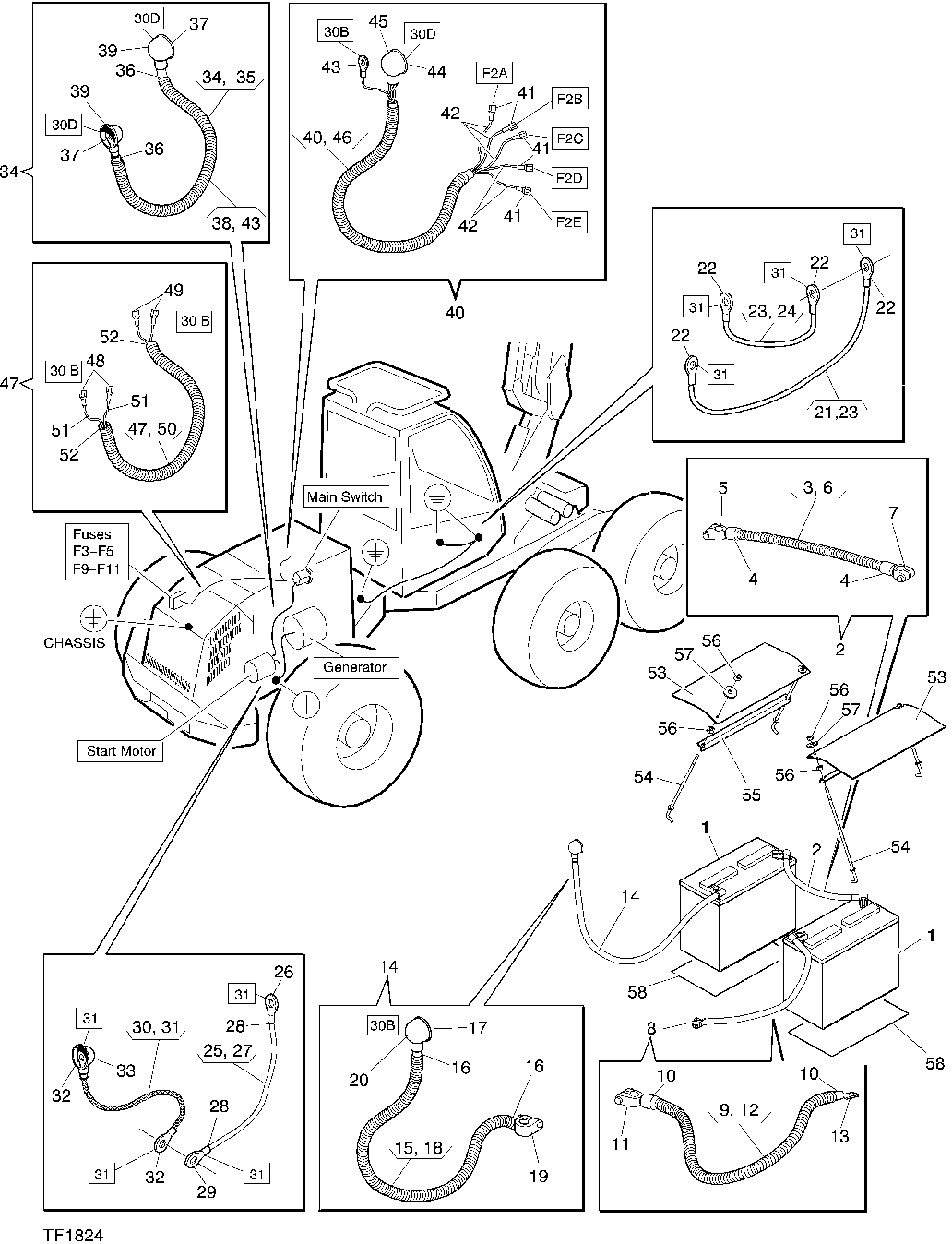

ELECTRICAL MOUNTING, MAIN CURRENT AND BATTERIES [01F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F058325	2	BATTERY	-
2	F604051	1	CABLE	INCLUDES ITEMS 3-7
3	-	1	Part 3	-
4	-	2	Part 4	-
5	F058022	1	Clamp	-
6	-	1	Part 6	F020295 2,2 M, BULK MATERIAL
7	F058023	1	Clamp	-
8	F604035	1	CABLE	INCLUDES ITEMS 9-13
9	-	1	Part 9	-
10	-	2	Part 10	-
11	F058022	1	Clamp	-
12	-	1	Part 12	F020295 2,2 M, BULK MATERIAL
13	F043276	1	Elec. Connector Terminal	-
14	F604031	1	CABLE	INCLUDES ITEMS 15-20
15	-	1	Part 15	-
16	-	2	Part 16	-
17	F043276	1	Elec. Connector Terminal	-
18	-	1	Part 18	F020295 2,2 M, BULK MATERIAL
19	F058023	1	Clamp	-
20	F013919	1	Boot	-
21	F604062	1	CABLE	INCLUDES ITEMS 22, 23
22	F040608	4	Elec. Connector Terminal	-
23	-	1	Part 23	-
24	F604054	1	CABLE	INCLUDES ITEMS 22, 23
25	F615642	1	CABLE	INCLUDES ITEMS 26-29
26	F043275	1	Elec. Connector Terminal	-
27	-	1	Part 27	-
28	-	2	Part 28	-
29	F040311	1	CABLE LUG	-
30	F604050	1	CABLE	INCLUDES ITEMS 31-33
31	-	1	Part 31	-
32	F043276	2	Elec. Connector Terminal	-
33	F013919	1	Boot	-
34	F612993	1	CABLE	INCLUDES ITEMS 35-39
35	-	1	Part 35	-
36	-	2	Part 36	-
37	F043276	2	Elec. Connector Terminal	-
38	-	1	Part 38	F020295 2,2 M, BULK MATERIAL
39	F013919	2	Boot	-
40	F604053	1	CABLE	INCLUDES ITEMS 41-46
41	F040310	5	SLEEVE	-
42	-	5	Part 42	-
43	F040621	1	Elec. Connector Terminal	-
44	F043275	1	Elec. Connector Terminal	-
45	F013919	1	Boot	-
46	-	1	Part 46	-
47	F604055	1	CABLE	INCLUDES ITEMS 48-52
48	F008089	2	CABLE LUG	-
49	F040310	2	SLEEVE	-
50	-	1	Part 50	F061719 L=10 M, BULK MATERIAL
51	-	2	Part 51	-
52	-	2	Part 52	-
53	F611187	2	RUBBER PLATE	-
54	F601899	4	SCREW BAR	-
55	F601897	2	FASTENING	-
56	F003563	8	NUT	-
57	F003353	4	WASHER	-
58	F611186	2	RUBBER PLATE	-

ELECTRICAL MOUNTING, MAIN CURRENT AND BATTERIES [01F05]
