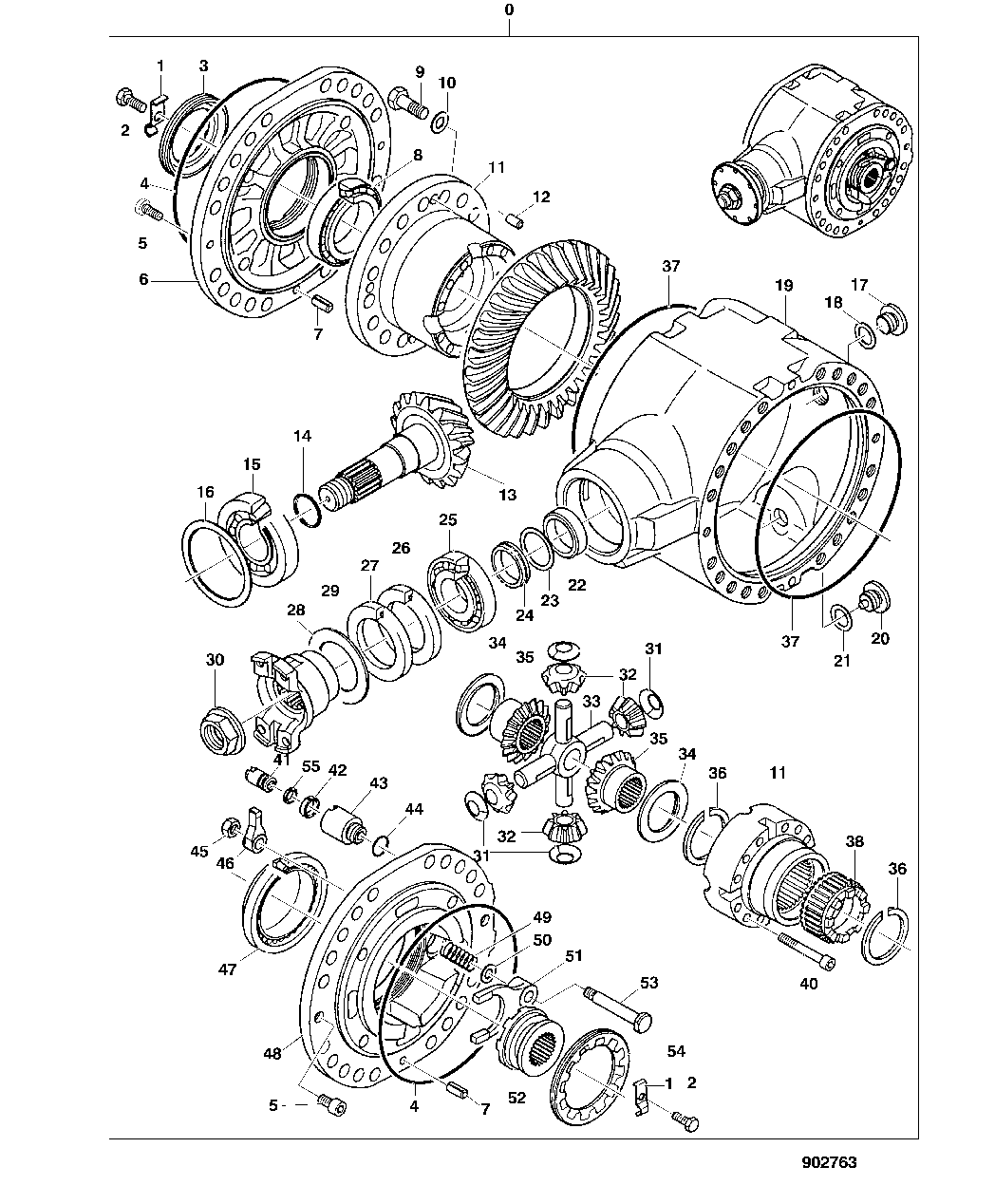

DIFFERENTIAL GEARS, HOUSING, AND COMPONENTS (4-WHEEL, LOK 65) [01B15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F054182	1	DIFFERENTIAL	-
1	F004891	2	Lock Washer	-
2	F004638	2	Screw	-
3	F046778	1	Nut	-
4	F003308	2	O-Ring	-
5	F003415	4	SCREW	-
6	F046756	1	Flange	-
7	F046766	2	SPRING PIN	-
8	F025161	1	Bearing	-
9	F054176	16	Screw	-
10	F009375	16	Washer	-
11	F054177	1	Housing	-
12	F025340	4	Pin	-
13	F054180	1	GEAR	-
14	F011429	1	O-Ring	-
15	F026691	1	Bearing	-
16	F045261	1	SHIM KIT	S= 2.5/2.75/3.0
17	F009438	1	Plug	-
18	F009465	1	Sealing Ring	-
19	F046779	1	Housing	-
20	F009498	1	Plug	-
21	F009463	1	Seal	-
22	F046772	1	Spacer	-
23	F045262	1	Shim Kit	S= 0.96 - 1.44
24	F046773	1	Spacer	S= 12.26
24	F035843	1	Spacer	S= 11.30
24	F035844	1	Spacer	S= 11.78
25	F046762	1	Bearing	-
26	F054178	1	Seal	-
27	F054178	1	Seal	-
28	F054181	1	Flange	-
29	F054186	1	WASHER	-
30	F021149	1	Nut	-
31	F046755	4	Thrust Washer	-
32	F046781	4	Gear	-
33	F046754	1	Shaft	-
34	F055349	1	Shim Kit	S= 1.5 - 2.2
35	F046780	2	Gear	-
36	F004757	2	Snap Ring	-
37	F040418	2	O-Ring	-
38	F046759	1	Sleeve	-
40	F046761	12	Cap Screw	-
41	F050812	1	Piston	-
42	F009469	1	Seal	-
43	F046771	1	Cylinder	-
44	F046765	1	O-Ring	-
45	F023666	1	Nut	-
46	F009403	1	LOCKING PLATE	-
47	F004688	1	Tapered Roller Bearing	-
48	F046757	1	Flange	-
49	F009394	1	Spring	-
50	F045259	1	Shim Kit	S= 1.5/2.0/2.5
51	F046758	1	Fork	-
52	F046760	1	Bushing	-
53	F009411	1	PIN	-
54	F004814	1	Nut	-
55	F050813	1	Seal	-

DIFFERENTIAL GEARS, HOUSING, AND COMPONENTS (4-WHEEL, LOK 65) [01B15]

Нет текстового описания
