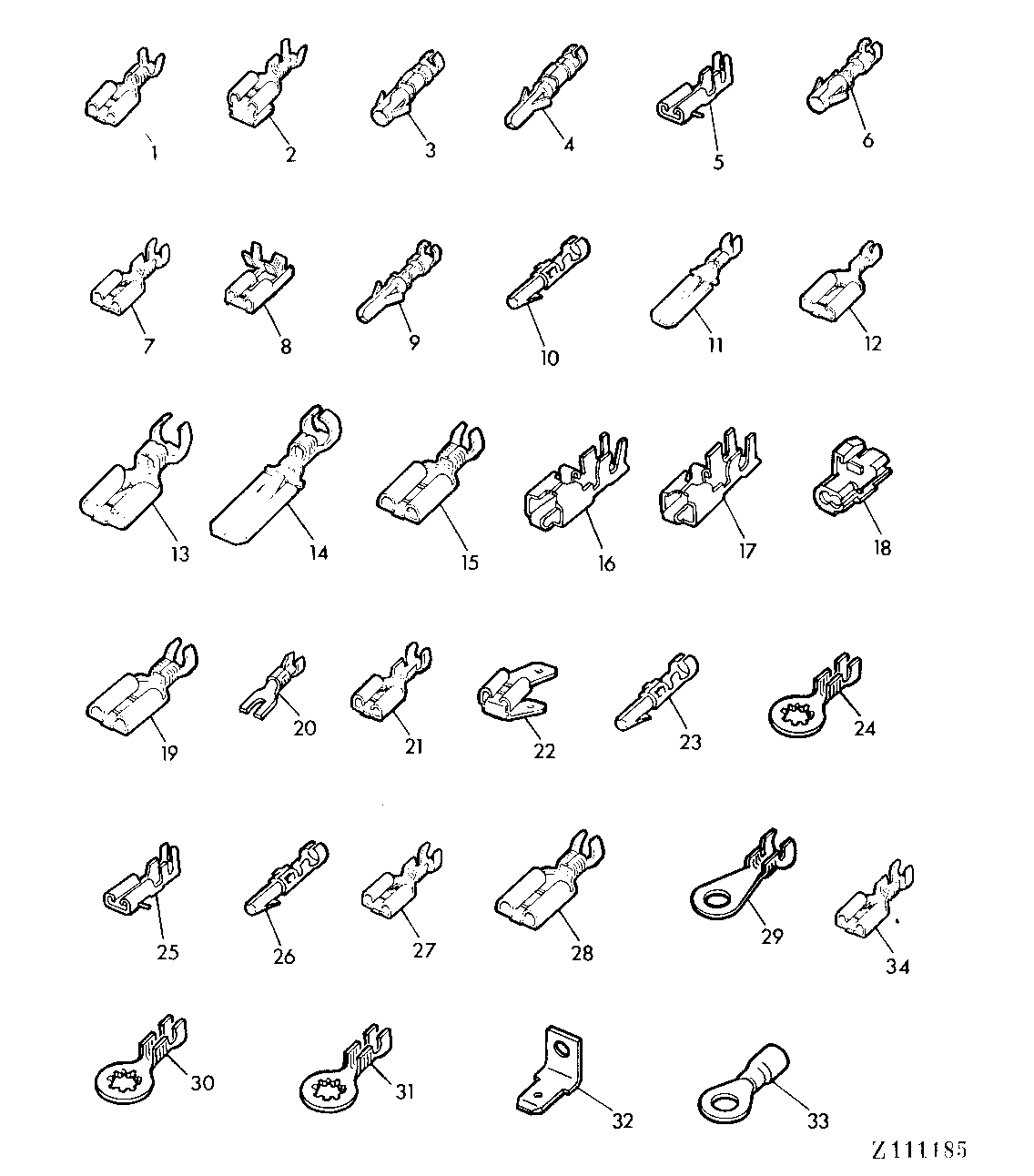

CABLE CLIPS;CONNECTORS AND PLUGS [01I09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7045	1	Elec. Connector Terminal	-
2	57M7070	1	Electrical Connector Assy	-
3	L36681	1	Elec. Connector Terminal	(FOR L37799)
4	L35423	1	Elec. Connector Terminal	(FOR L37798)
5	Z40695	1	SOCKET	-
6	L36685	1	Elec. Connector Terminal	(FOR L37799)
7	57M7041	1	Elec. Connector Terminal	-
8	57M7069	1	Elec. Connector Terminal	-
9	L36670	1	Elec. Connector Terminal	(FOR L37798)
10	Z40755	1	ELEC. CONNECTOR TERMINAL	-
11	57M7039	1	Elec. Connector Terminal	-
12	57M7038	1	Elec. Connector Terminal	-
13	57M7071	1	Elec. Connector Terminal	-
14	57M7040	1	Elec. Connector Terminal	-
15	57M7046	1	Elec. Connector Terminal	-
16	57M7106	1	Elec. Connector Terminal	2,5-4,0MM2
17	57M7089	1	Elec. Connector Terminal	0,7-2,0MM2
18	57M7095	1	Electrical Connector Assy	-
19	57M7044	1	Elec. Connector Terminal	-
20	57M7093	1	Elec. Connector Terminal	-
21	57M7103	1	Elec. Connector Terminal	-
22	57M7082	1	ELECTRICAL CONNECTOR ASSY	-
23	Z43327	1	ELEC. CONNECTOR TERMINAL	(FOR AZ32948)
24	57M7032	1	Elec. Connector Terminal	-
25	L36676	1	Elec. Connector Terminal	-
26	L36669	1	Elec. Connector Terminal	-
27	57M7104	1	Elec. Connector Terminal	-
28	57M7098	1	Elec. Connector Terminal	-
29	57M7053	1	Elec. Connector Terminal	-
30	57M7030	1	Elec. Connector Terminal	-
31	57M7111	1	Elec. Connector Terminal	-
32	Z43648	1	ELEC. CONNECTOR TERMINAL	(SUB FOR Z40839)
33	57M7138	1	Elec. Connector Terminal	-
34	57M7077	1	Elec. Connector Terminal	-

CABLE CLIPS;CONNECTORS AND PLUGS [01I09]

Нет текстового описания
