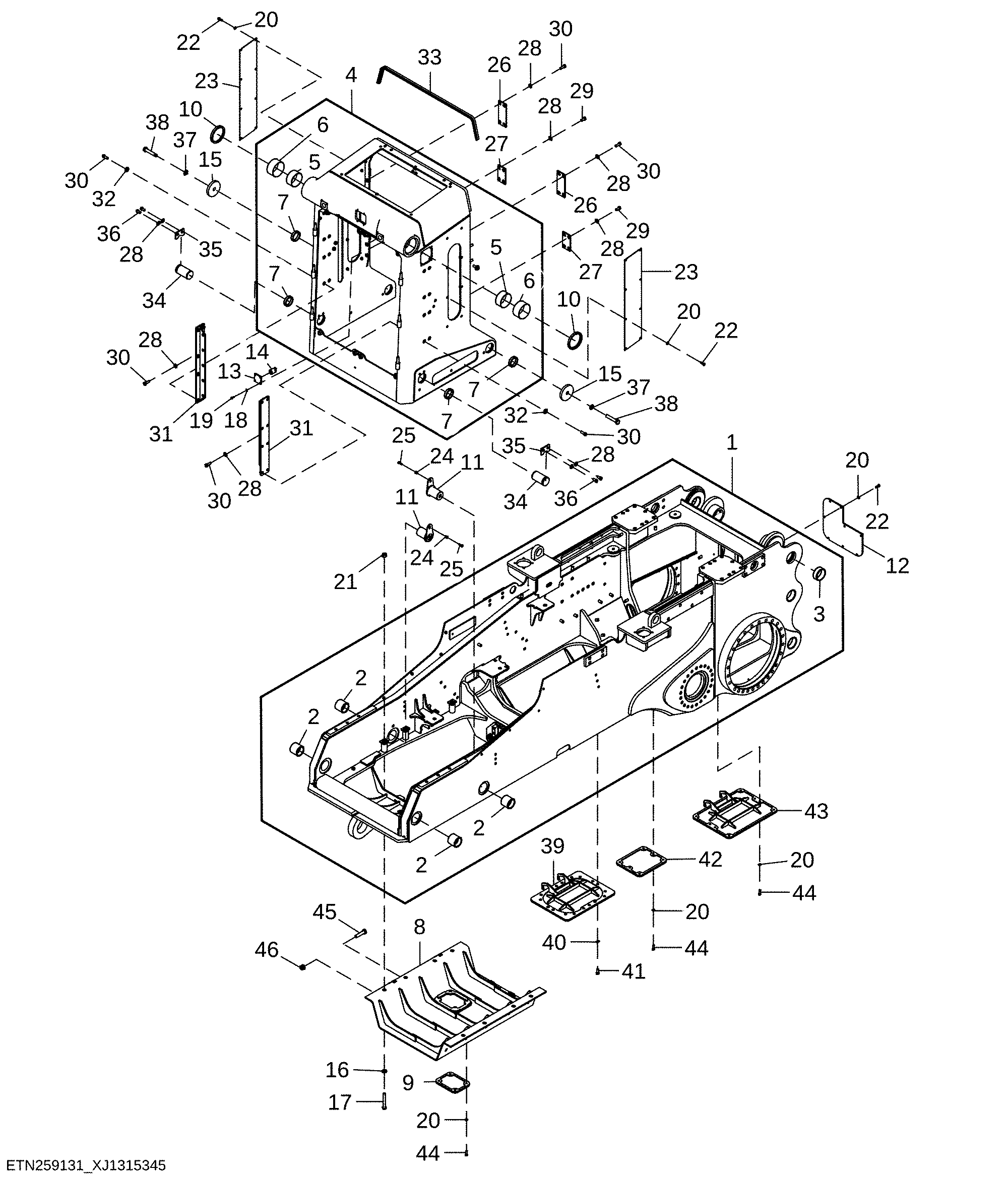

Main Frame and Bottom Guards Waste Handler (409642 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT527475	1	Main Frame	Convenience Assembly
2	T203452	4	Bushing	-
3	T318954	12	Bushing	-
4	AT463887	1	Frame	Convenience Assembly
5	T286745	2	Bushing	-
6	T286746	2	Bushing	-
7	T315302	4	Bushing	-
8	AT499564	1	Cover	RH Bottom
9	AT354834	1	Cover	-
10	AR88199	2	Seal	-
11	AT452874	2	Pin	-
12	T286777	1	Cover	Rear
13	T286744	2	Cover	-
14	T290284	2	Boss	-
15	T361970	2	Plate	-
16	24M7242	10	Washer	21.400 X 42 X 5 mm
17	19M7921	10	Cap Screw	M20 X 150
18	24M7238	8	Washer	8.700 X 17 X 2 mm
19	19M7407	8	Cap Screw	M8 X 25
20	24M7240	41	Washer	13 X 25 X 3 mm
21	14M7300	10	Flange Nut	M20
22	19M7403	23	Cap Screw	M12 X 35
23	T291321	2	Cover	Grill Housing
24	T188075	2	Bushing	-
25	19M7550	2	Cap Screw	M10 X 35
26	T318295	2	Bracket	Grill Housing
27	T346635	2	Bracket	Grill Housing
28	24M7241	30	Washer	17 X 34 X 4 mm
29	19M8035	8	Cap Screw	M16 X 35
30	19M7489	34	Cap Screw	M16 X 45
31	AT419233	2	Bracket	Front
32	24M7653	16	Washer	17 X 40 X 6 mm
33	T323321	1	Isolator	Hood Seal
34	T361200	2	Pin	-
35	T361214	2	Retainer	-
36	19M8029	4	Cap Screw	M16 X 30
37	24M7351	2	Washer	25 X 44 X 4 mm
38	19M7936	2	Cap Screw	M24 X 130
39	AT453872	1	Cover	RH Rear
40	24M7338	18	Washer	17 X 30 X 3 mm
41	19M7488	18	Cap Screw	M16 X 40
42	AT382984	1	Cover	-
43	AT382932	1	Cover	RH Rear
44	19M7493	18	Cap Screw	M12 X 40
45	19M8249	2	Cap Screw	M24 X 100
46	14M7413	2	Lock Nut	M24

Main Frame and Bottom Guards Waste Handler (409642 - )
