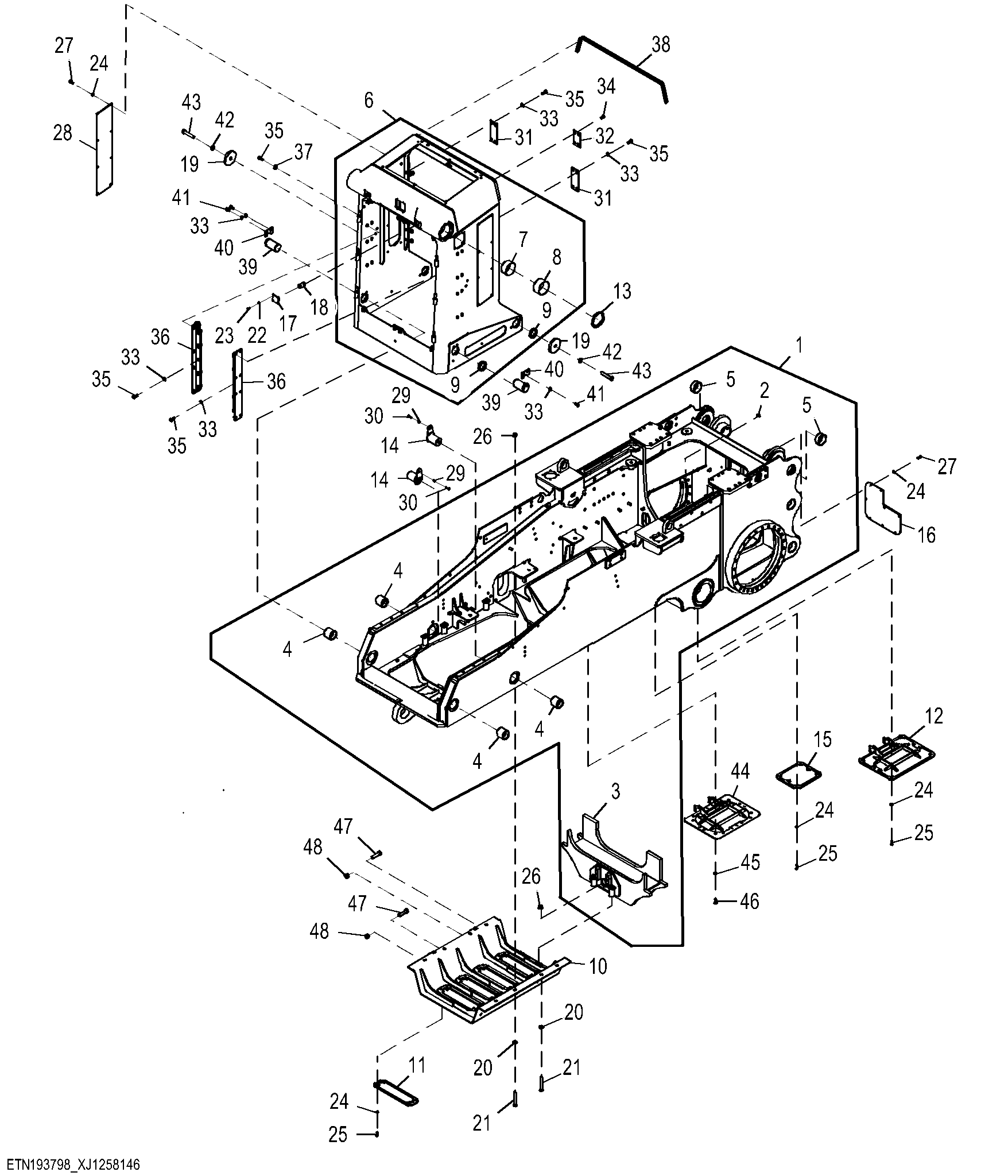

Main Frame and Bottom Guards, Coal Handler

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT382655	1	Main Frame	CA
2	14M7291	2	Flange Nut	M16
3	AT398596	1	Support	CA
4	T203452	4	Bushing	-
5	T318954	12	Bushing	-
6	AT463887	1	Frame	CA
7	T286745	2	Bushing	-
8	T286746	2	Bushing	-
9	T315302	4	Bushing	-
10	AT489898	1	Cover	RH
11	AT489900	4	Cover	Access Panel
12	AT382932	1	Cover	Access Panel, Rear RH
13	AR88199	2	Seal	-
14	AT452874	2	Pin	-
15	AT382984	1	Cover	Access Panel
16	T286777	1	Cover	-
17	T286744	2	Cover	-
18	T290284	2	Boss	-
19	T361970	2	Plate	-
20	24M7242	10	Washer	21.400 X 42 X 5 mm
21	19M7921	10	Cap Screw	M20 X 150
22	24M7238	8	Washer	8.700 X 17 X 2 mm
23	19M7407	8	Cap Screw	M8 X 25
24	24M7240	53	Washer	13 X 25 X 3 mm
25	19M7493	30	Cap Screw	M12 X 40
26	14M7300	10	Flange Nut	M20
27	19M7403	23	Cap Screw	M12 X 35
28	T291321	2	Cover	-
29	T188075	2	Bushing	-
30	19M7550	2	Cap Screw	M10 X 35
31	T318295	2	Bracket	-
32	T346635	2	Bracket	-
33	24M7241	30	Washer	17 X 34 X 4 mm
34	19M8035	8	Cap Screw	M16 X 35
35	19M7489	34	Cap Screw	M16 X 45
36	AT419233	2	Bracket	-
37	24M7653	16	Washer	17 X 40 X 6 mm
38	T323321	1	Isolator	Hood Seal
39	T361200	2	Pin	-
40	T361214	2	Retainer	-
41	19M8029	4	Cap Screw	M16 X 30
42	24M7351	2	Washer	25 X 44 X 4 mm
43	19M7936	2	Cap Screw	M24 X 130
44	AT453872	1	Cover	Access Panel, Rear RH
45	24M7338	18	Washer	17 X 30 X 3 mm
46	19M7488	18	Cap Screw	M16 X 40
47	19M8249	2	Cap Screw	M24 X 100
48	14M7413	2	Lock Nut	M24

Main Frame and Bottom Guards, Coal Handler
