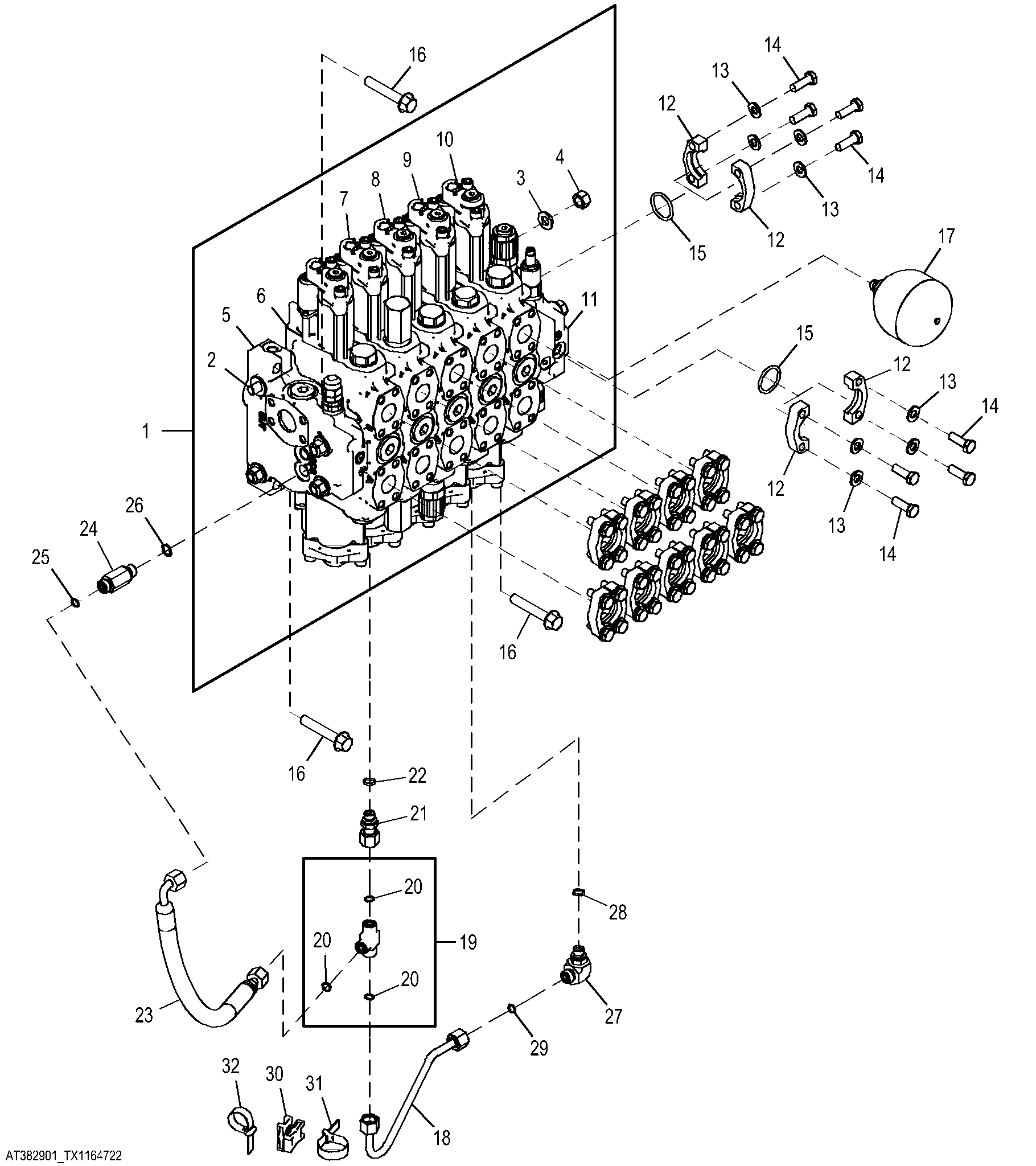

Hydraulic Control Valve, 5-Spool ( - 302688)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT477008	1	Hyd Actuated Control Valve	4-Spool
1	AT411919	1	Hyd Actuated Control Valve	NLA, ORDER AT477008
2	T163998	4	Tie Rod Assembly	-
3	T190753	8	Washer	-
4	14H865	8	Nut	1/2"
5	-	1	Part 6	Outlet Valve Section Components Listed On Separate Page, NSEP
6	-	1	Part 7	Tilt Valve Section Components Listed On Separate Page, NSEP
7	-	1	Part 8	Lift Valve Section Components Listed On Separate Page, NSEP
8	-	1	Part 9	Auxiliary Valve Section (1) Components Listed On Separate Page, NSEP
9	-	1	Part 10	Auxiliary Valve Section (2) Components Listed On Separate Page, NSEP
10	-	1	Part 11	Auxiliary Valve Section (3) Components Listed On Separate Page, NSEP
11	-	1	Part 12	Inlet Valve Section Components Listed On Separate Page, NSEP
12	H61354	22	Flange Fitting	-
13	24M7239	44	Washer	10.700 X 21 X 2.500 mm
14	19M7662	44	Cap Screw	M10 X 30
15	U12037	11	O-Ring	32.918 X 3.531 mm (1.296" X 0.139")
16	19M7817	3	Screw	M12 X 70
17	AT456893	1	Hydraulic Accumulator	SUB FOR AT195957
18	AT442343	1	Oil Line	-
19	AT171681	1	Check Valve	-
20	T77613	3	O-Ring	-
21	38H5485	1	Adapter Fitting	-
22	51M7041	1	O-Ring	11.300 X 2.200 mm
23	AT437500	1	Hydraulic Hose	Fabricate
24	38H5178	1	Adapter Fitting	-
25	T77613	1	O-Ring	-
26	51M7042	1	O-Ring	13.300 X 2.200 mm
27	38H5016	1	Elbow Fitting	-
28	51M7041	1	O-Ring	11.300 X 2.200 mm
29	T77613	1	O-Ring	-
30	AN209168	1	Swivel	-
31	H224073	1	Tie Band	-
32	H224073	1	Tie Band	-
