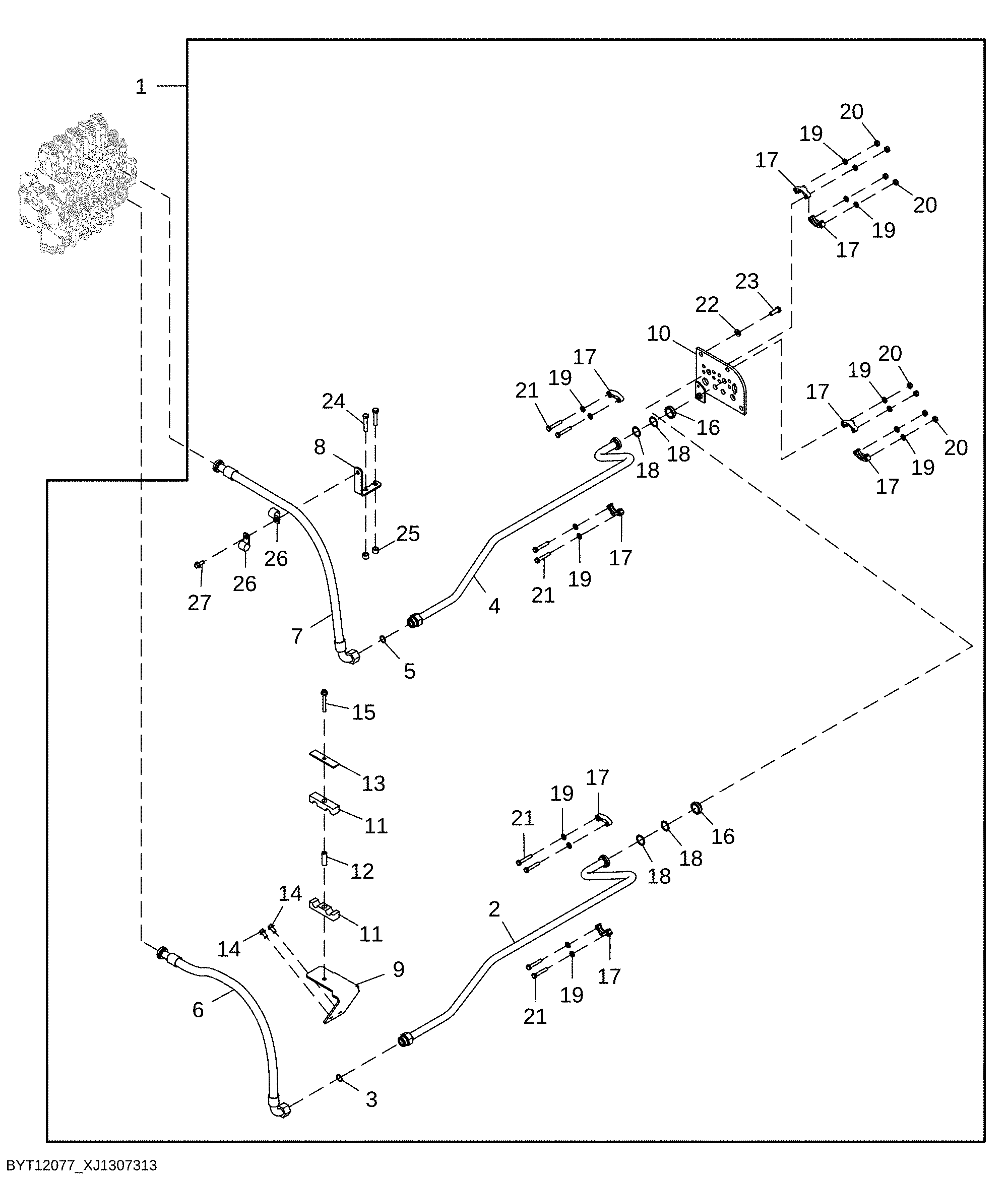

Fifth Section Rear Auxiliary Plumbing Kit (397847 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT12077	1	Tube Kit	Whole Goods
2	AT436348	1	Oil Line	To Rear Auxiliary, INCLUDES T76938
3	T76938	1	O-Ring	-
4	AT436349	1	Oil Line	To Rear Auxiliary, INCLUDES T76938
5	T76938	1	O-Ring	-
6	AT436345	1	Hydraulic Hose	To Auxiliary Control Valve
7	AT436346	1	Hydraulic Hose	To Auxiliary Control Valve
8	AT412318	1	Bracket	Hydraulic Cooler
9	AT519962	1	Bracket	-
10	AT418066	1	Bracket	Tilt and Pitch Lines
11	T380412	2	Clamp	-
12	28H3402	1	Spacer	0.493" X 0.675" X 2"
13	T308477	1	Strap	-
14	19M7784	2	Screw	M10 X 20
15	19M7810	1	Screw	M10 X 80
16	T315202	2	Adapter Fitting	-
17	H61354	8	Flange Fitting	-
18	U12037	4	O-Ring	-
19	24M7239	16	Washer	10.700 X 21 X 2.500 mm
20	14M7274	8	Nut	M10
21	19M8499	8	Cap Screw	M10 X 60
22	24M7240	4	Washer	13 X 25 X 3 mm
23	19M7403	4	Cap Screw	M12 X 35
24	19M7363	2	Cap Screw	M12 X 60
25	28H3400	2	Spacer	0.546" X 0.840" X 9/16"
26	R46667	2	Clamp	-
27	19M7785	1	Screw	M10 X 25

Fifth Section Rear Auxiliary Plumbing Kit (397847 - )

Нет текстового описания
