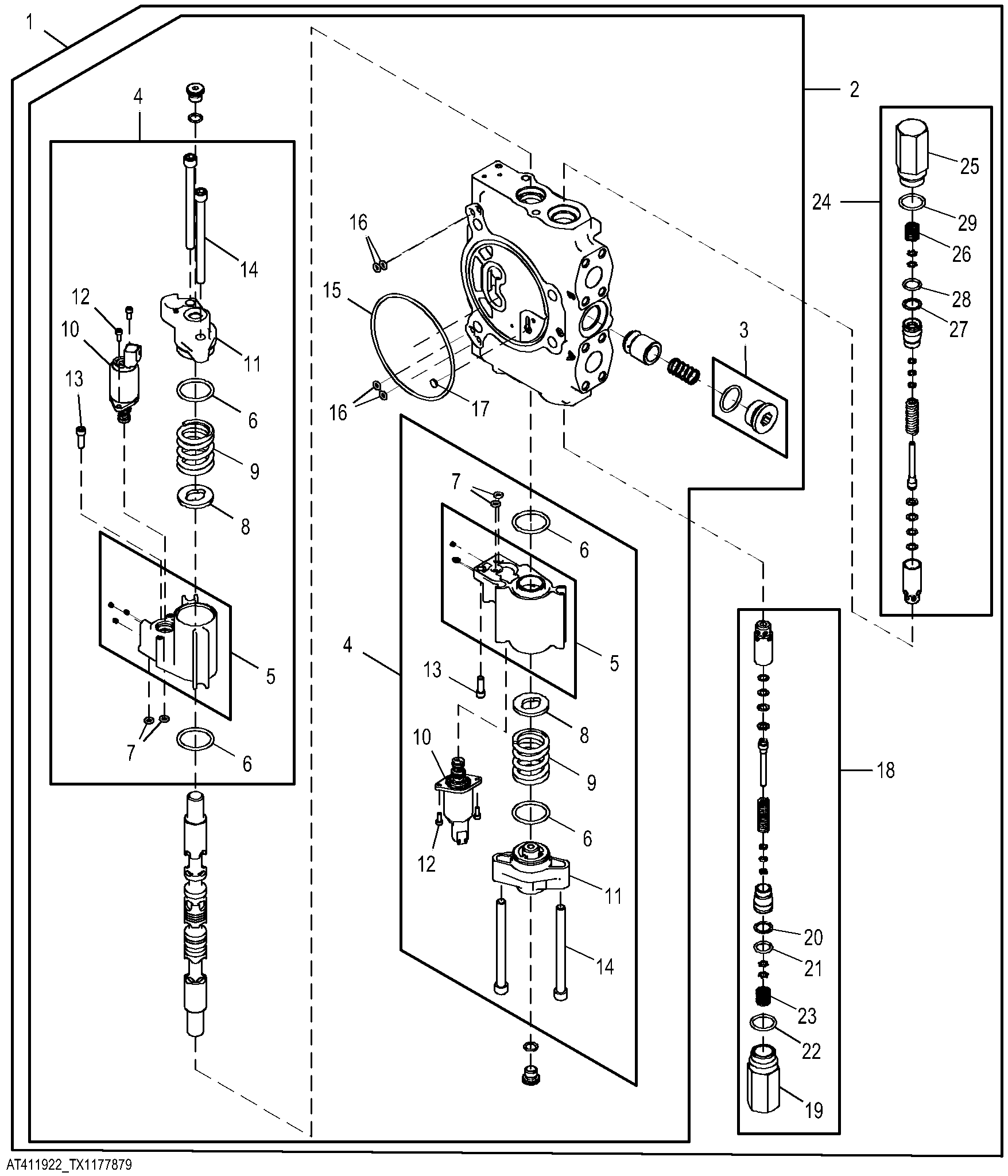

Lift Section, Control Valve ( - 385050)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Lift Section Order Components, NSEP
2	AT411928	1	Spool Valve	-
3	T308690	1	Fitting Plug	-
4	AT451909	2	Solenoid Hydraulic Valve	SUB FOR AT411916
5	AT411918	1	Housing	-
6	T190777	2	O-Ring	-
7	T190766	2	Seal	-
8	T308692	1	Spacer	-
9	T308688	1	Spring	-
10	AT497305	1	Valve	INCLUDES AT368250; SUB FOR AT450598 OR AT411917
10	AT368250	1	Seal Kit	-
11	T308687	1	Housing	-
12	19M7702	2	Screw	M4 X 10
13	19H2924	1	Screw	1/4" X 3/4"
14	19H3230	2	Screw	3/8" X 4-1/2"
15	T163954	1	Seal	-
16	T190766	4	Seal	-
17	R95493	1	Disk	-
18	AT171403	1	Pressure Relief Valve	2150 psi
18	AT178363	1	Pressure Relief Valve	Relief Valve Insert 53520 At 2150 psi
18	AT314539	1	Seal Kit	-
19	T118866	1	Housing	-
20	-	1	Part 23	ORDER AT314539
21	-	1	Part 24	ORDER AT314539
22	T118681	1	O-Ring	-
23	T118867	1	Spring	-
24	AT182377	1	Pressure Relief Valve	3800 psi
24	AT178362	1	Valve Kit	Relief Valve Insert 53520 At 3800 psi
24	AT314539	1	Seal Kit	-
25	T118866	1	Housing	-
26	T118867	1	Spring	-
27	-	1	Part 32	ORDER AT314539
28	-	1	Part 33	ORDER AT314539
29	T118681	1	O-Ring	-

Lift Section, Control Valve ( - 385050)
