Открытый узел

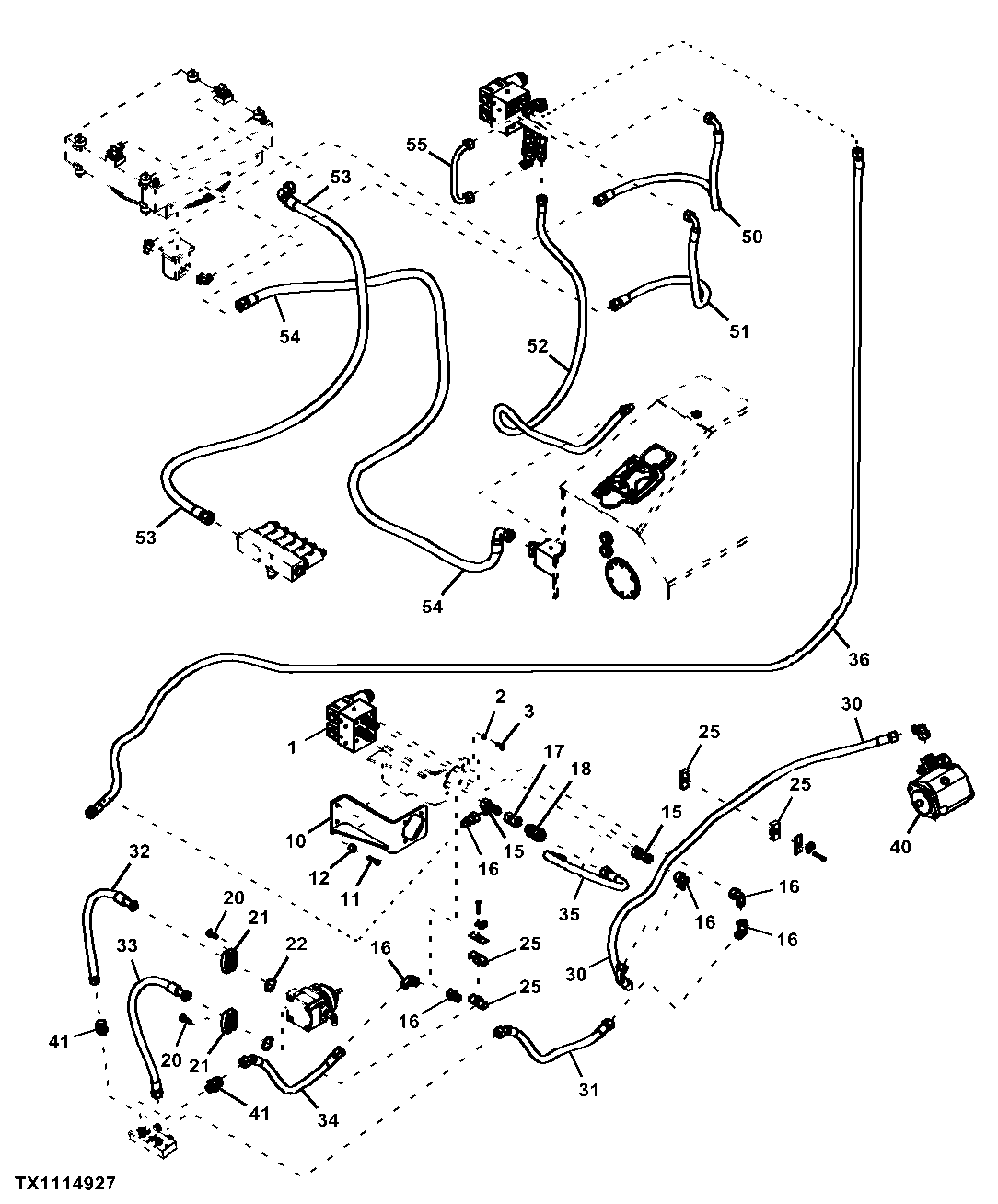

Reversible Fan Hydraulic Hoses ( - 009723)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW9412001	1	Hyd Actuated Control Valve	Components On Another Page
2	24M7028	3	Washer	10.500 X 20 X 2 mm
3	19M7167	3	Cap Screw	M10 X 25
10	LW9419373	1	Bracket	-
11	19M7303	2	Cap Screw	M12 X 45
12	LW9412890	2	Spacer	-
15	XEL20SCF	2	Fitting	SUB FOR AT218881
15	51M7110	1	O-Ring	16.300 X 2.400 mm
16	XEW20SCF	6	Fitting	SUB FOR AT186703
16	51M7110	1	O-Ring	16.300 X 2.400 mm
17	XGZ20SCF	1	Fitting	SUB FOR LW7410225 AND LW7617172
17	51M7110	1	O-Ring	16.300 X 2.400 mm
18	LW5603836	1	Check Valve	-
20	AT301836	8	Cap Screw	-
21	LW10286363	4	Pressed Flanged Housing	-
22	LW10490784	2	O-Ring	SUB FOR LW10290520
25	AT277151	8	Clip	-
30	LW10424280	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7110
30	51M7110	1	O-Ring	16.300 X 2.400 mm
31	LW10424281	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7110
31	51M7110	1	O-Ring	16.300 X 2.400 mm
32	T72888	1	O-Ring	-
32	51M7110	1	O-Ring	16.300 X 2.400 mm
32	LW10292246	1	Hydraulic Hose	Fabricate, INCLUDES 51M7110 AND T72888
33	LW10424282	1	Hydraulic Hose	Fabricate, INCLUDES 51M7110 AND T72888
33	51M7110	1	O-Ring	16.300 X 2.400 mm
33	T72888	1	O-Ring	-
34	LW7003404	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7110
34	51M7110	1	O-Ring	16.300 X 2.400 mm
35	LW7622515	1	Hydraulic Hose	Fabricate
36	LW10424283	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7110
36	51M7110	1	O-Ring	16.300 X 2.400 mm
40	LW10409610	1	Hydraulic Pump	Components On Another Page
41	AT261778	1	Fitting	-
50	LW7020637	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7110
50	51M7110	1	O-Ring	16.300 X 2.400 mm
51	LW7020637	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7110
51	51M7110	1	O-Ring	16.300 X 2.400 mm
52	LW7403840	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7109
52	51M7109	1	O-Ring	15 X 2 mm
53	LW7401445	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7112
53	51M7112	1	O-Ring	26 X 2 mm
54	LW10424335	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7112
54	51M7112	1	O-Ring	26 X 2 mm
55	LW9418959	1	Line	INCLUDES (2) XM20SCFXX AND (2) LW4771004
