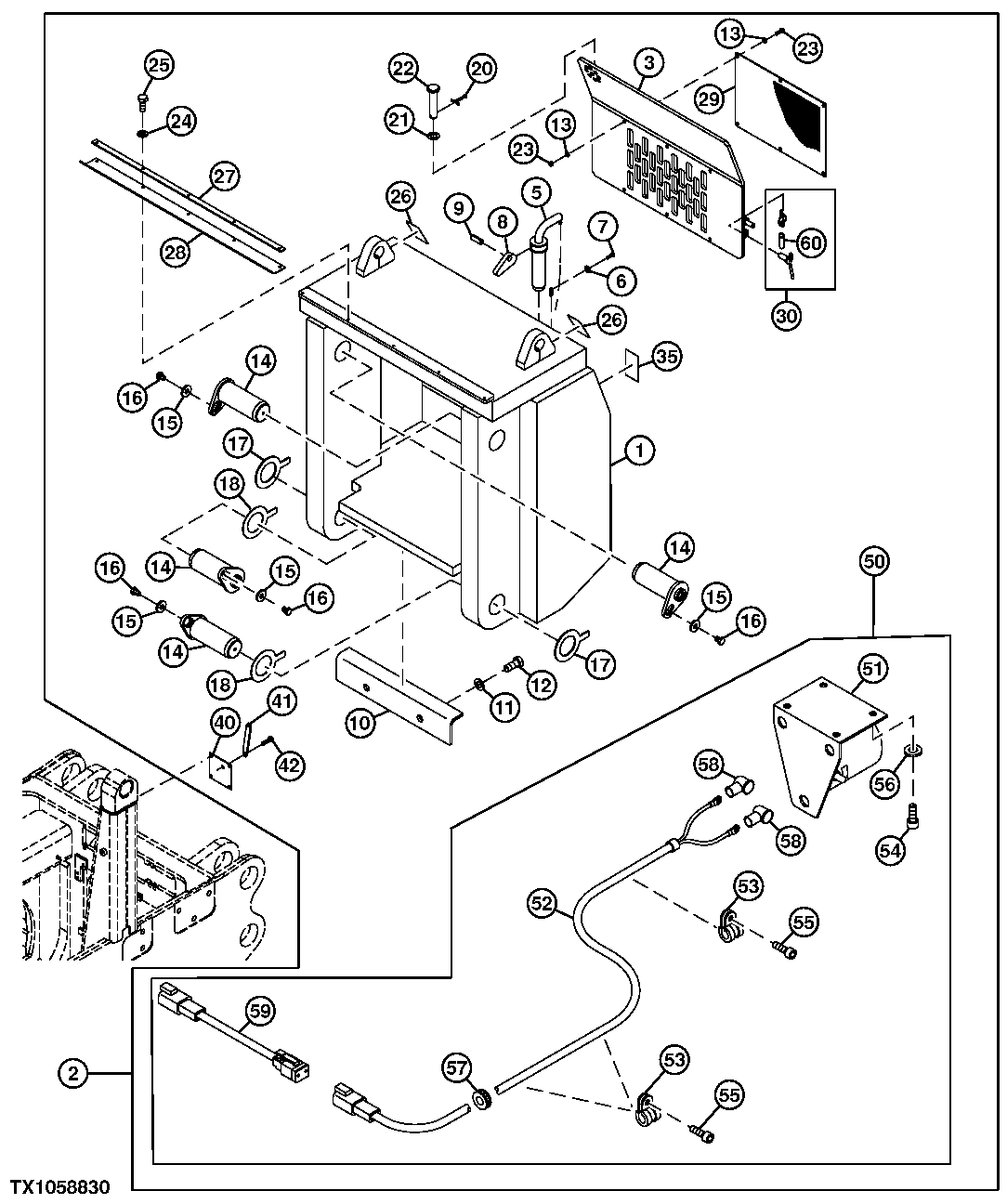

Rear Counterweight w/ Storage and Hardware

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	AT340387	1	Counterweight Kit	-
3	LW9411980	1	Door	-
4	19M7493	1	Cap Screw	M12 X 40
5	AT277653	6	Pin Fastener	-
6	24M7250	1	Washer	6.400 X 17 X 3 mm
7	19M7077	1	Cap Screw	M6 X 20
8	AT219286	1	Retainer	-
9	AT276771	1	Spring Pin	-
10	LW9412078	1	Angle	-
11	24M7202	2	Washer	31 X 56 X 4 mm
12	AT316720	2	Bolt	-
13	24M7623	12	Washer	13 X 24 X 2.500 mm, SUB FOR LW10289804
14	LW9930707	4	Pin	-
15	24H1380	4	Washer	11/16" X 1-3/4" X 0.194"
16	AT264638	4	Cap Screw	-
17	LW9930714	2	Shim	-
18	LW9930715	2	Shim	-
20	11M7030	1	Cotter Pin	5 X 40 mm
21	24M7527	4	Washer	19 X 34 X 3 mm, SUB FOR AT316772
22	AT317010	2	Pin	-
23	14M7275	6	Nut	M12
24	24M7055	5	Washer	8.400 X 16 X 1.600 mm
25	19M7139	5	Cap Screw	M8 X 20
26	AT316729	2	Label	Lift Hook
27	AT316730	1	Strip	-
28	AT316731	1	Seal	-
29	AT278141	1	Cover	-
30	LW9416310	1	Pin	-
35	AT320756	1	Label	Tie Down
40	LW9416295	1	Cover	-
41	LW9418999	1	Strap	-
42	19M7073	1	Cap Screw	M12 X 50
50	-	1	Part 34	Service With Component Parts
51	LW10441368	1	Alarm System	SUB FOR LW6427085
52	LW9416048	1	Wiring Harness	-
53	M47566	5	Clip	SUB FOR T14264
54	19M9230	5	Screw	M8 X 20, SUB FOR AT265053
55	19M7761	4	Screw	M8 X 16
56	24H1621	4	Washer	11/32" X 1" X 0.220"
57	LW7414186	1	Grommet	-
58	LW610701108	2	Cap	SUB FOR AT274512
59	LW9417870	1	Cable	-
60	34H315	1	Spring Pin	1/4" X 1-3/8"
