Final Drive Hydraulic Hoses ( - 009726)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

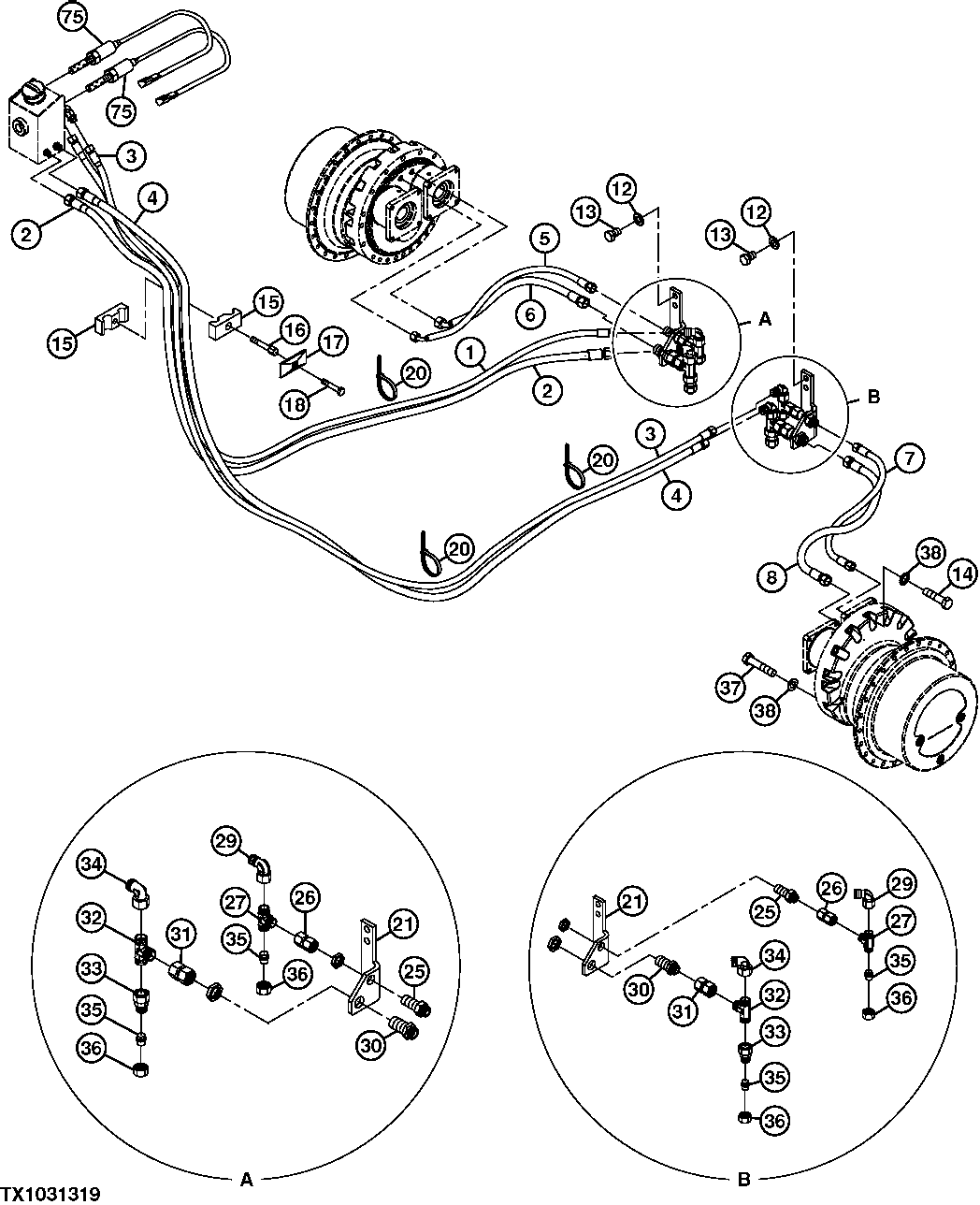

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7107	2	O-Ring	9 X 1.500 mm
1	LW10294517	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7107
2	51M7108	2	O-Ring	12 X 2 mm
2	LW10294518	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7108
3	LW10294519	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7107
3	51M7107	2	O-Ring	9 X 1.500 mm
4	LW10278614	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7108
4	51M7108	2	O-Ring	12 X 2 mm
5	LW10218038	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7107
5	51M7107	2	O-Ring	9 X 1.500 mm
6	57M7108	2	Elec. Connector Terminal	-
6	LW10285651	1	Hydraulic Hose	Fabricate, INCLUDES (2) 57M7108
7	LW7405825	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7107
7	57M7108	2	Elec. Connector Terminal	-
8	LW5618766	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7108
8	51M7108	2	O-Ring	12 X 2 mm
12	24M7623	4	Washer	13 X 24 X 2.500 mm, SUB FOR LW10289804
13	19M7386	4	Cap Screw	M12 X 20
14	19M8249	26	Cap Screw	M24 X 100
15	AT275002	4	Clamp	-
16	AT277160	2	Bolt	-
17	AT274755	2	Plate	-
18	19M8359	2	Cap Screw	M8 X 45
20	T111126	12	Clamp	-
21	LW9407358	2	Bracket	-
25	XSV12LCF	2	Union Fitting	SUB FOR AT279875
26	LW7410212	2	Fitting	-
27	LW7405546	2	Valve	-
29	XEW12LOMDCF	2	Adapter Fitting	SUB FOR LW247117702
29	51M7107	1	O-Ring	9 X 1.500 mm
30	AT218494	2	Union Fitting	-
31	AT301841	2	Union Fitting	-
32	LW7410747	2	Valve	-
33	LW7367745	2	Fitting	-
34	XEW15LCF	2	Fitting	SUB FOR AT218893
34	51M7109	1	O-Ring	15 X 2 mm
35	XVKA12CF	4	Fitting	SUB FOR AT274299 AND LW477700514
36	XM12LCFX	4	Fitting	SUB FOR AT274234
37	19M7903	16	Cap Screw	M24 X 120
38	24M7559	42	Washer	25 X 44 X 4 mm, SUB FOR AT275997
75	LW6003313	2	Wiring Harness	-
