Открытый узел

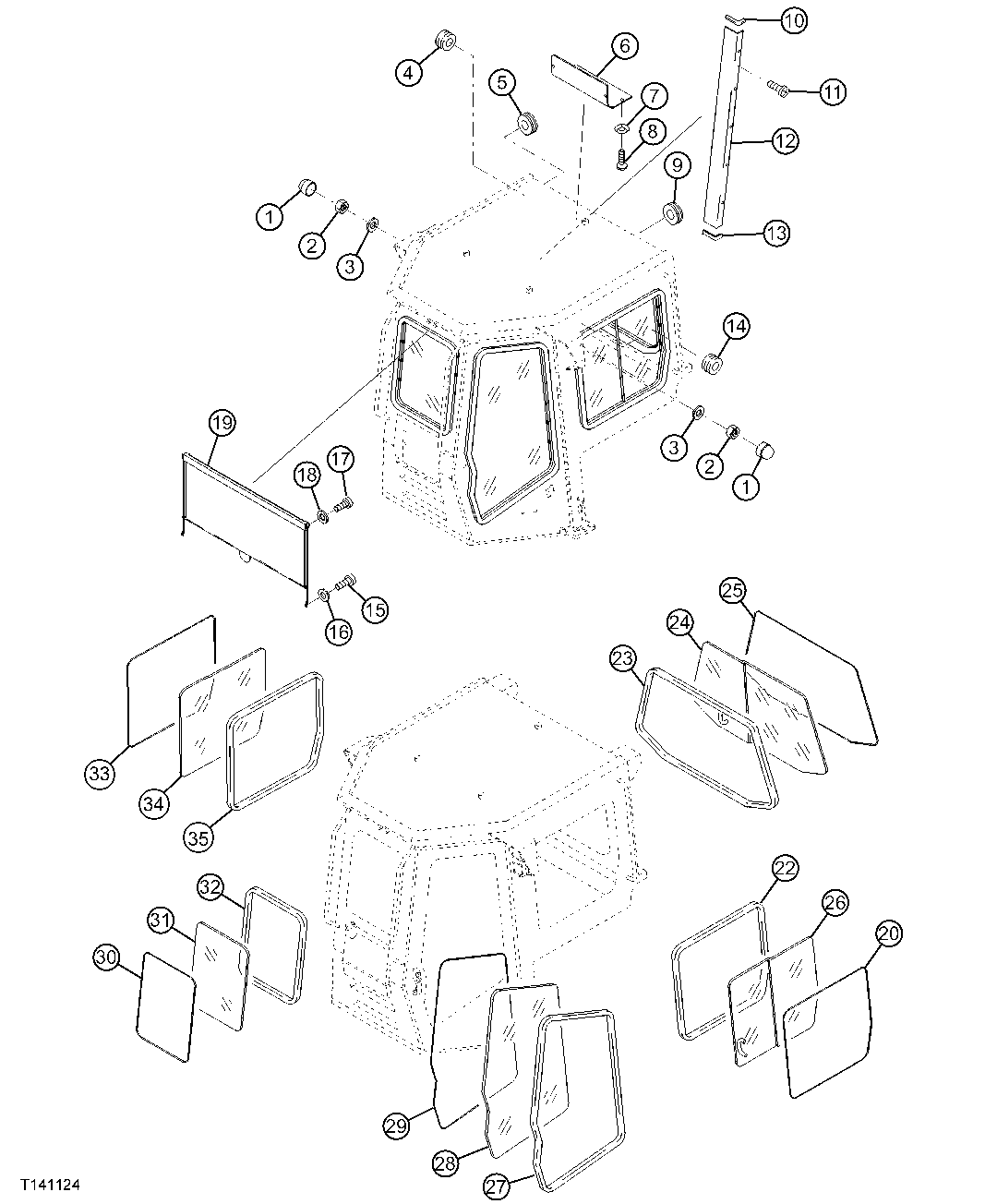

WINDOWS COMPONENT PARTS

WINDOWS COMPONENT PARTS

WINDOWS COMPONENT PARTS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

WINDOWS COMPONENT PARTS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT325430	6	Cap	(SUB FOR AT274652, THIS APPLICATION)
2	14M7274	6	Nut	M10
3	24M7028	6	Washer	10.500 X 20 X 2 mm
4	AT276968	2	Grommet	-
5	AT277077	2	Plug	(SUB FOR AT276974)
6	AT278222	1	Cover	(WIPER MOTOR)
7	AT274993	4	Washer	-
8	AT261220	4	Cap Screw	-
9	AT274438	1	Grommet	-
10	-	1	Part 10	(MAKE FROM LW9812346 ) (SUB FOR AT218611 AND AT264803)(CTL 0.09M)
11	LW409606001	5	Screw	M4 X 10, (SUB FOR AT276741)
12	AT278116	1	Cover	(UPPER CONSOLE WIRING HARNESS)
13	-	1	Part 13	(MAKE FROM LW9812346 ) (SUB FOR AT218611 AND AT264803)(CTL 0.09M)
14	AT277198	2	Grommet	-
15	21M7396	2	Screw	M4 X 10
16	24M7117	2	Washer	4.300 X 9 X 0.800 mm
17	AT218439	2	Socket Head Screw	-
18	24M7027	2	Washer	5.300 X 10 X 1 mm
19	AT277390	1	Shade Curtain	-
20	LW10306185	1	Isolator	(CTL) (SUB FOR AT218416 ) (WINDOW MOLDING) (CTL 3.2M)
22	-	1	Part 21	(MAKE FROM LW9812353 ) (CTL 3.2M) (SUB FOR AT218829
23	-	1	Part 22	(MAKE FROM LW9812353 ) (CTL 3.26M) (SUB FOR AT218829
24	AT278094	1	Windowpane	(COMPONENTS ON ANOTHER PAGE) (SEE CAB SLIDING REAR WINDOW PAGE)
25	-	1	Part 24	(MAKE FROM LW10306185 CTL) (SUB FOR AT218416 )(WINDOW MOLDING) (CTL 3.26M)
26	-	1	Part 25	(ORDER LW10342399)( AT278077 NLA) (COMPONENTS ON ANOTHER PAGE) (SEE CAB SLIDING SIDE WINDOW PAGE)
26	LW10342399	1	Window	-
27	-	1	Part 27	(MAKE FROM LW9812353 ) (CTL 3.35 M) (SUB FOR AT218829 )
28	AT278095	2	Windowpane	-
29	-	1	Part 29	(MAKE FROM LW10306185 CTL) (SUB FOR AT218416 )(WINDOW MOLDING) (CTL 3.35M)
30	-	1	Part 30	(MAKE FROM LW10306184 CTL) (SUB FOR AT218416 AND AT300692)(WINDOW MOLDING) (CTL 2.3M)
31	AT278093	1	Windowpane	-
32	-	1	Part 32	(MAKE FROM LW9812353)(CTL 2.3M) (SUB FORAT218829 )
33	-	1	Part 33	(MAKE FROM LW10306185)(WINDOW MOLDING) (CTL 3.2M) (SUB FOR AT218416 )
34	AT278233	1	Windowpane	-
35	-	1	Part 35	(MAKE FROM LW9812353)(CTL 3.2M) (SUB FOR AT218829 )
