Большое обновление пильных узлов

Смотреть

Открытый узел

Winch Pilot Controller and Hydraulic Hoses

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW10440816	1	Hydr./Pilot Control Valve	Winch, SUB FOR AT277391
2	PMH3805	2	Fitting	SUB FOR AT218846
2	PMH3827	1	Fitting	-
3	AT264819	1	Label	-
4	AT218623	4	Fitting	SUB FOR AT218623
5	AT276922	1	Hydraulic Hose	INCLUDES (2) 51M7106
5	51M7106	2	O-Ring	7.500 X 1.500 mm
6	LW5608734	1	Hose	SUB FOR AT276926
6	51M7106	2	O-Ring	7.500 X 1.500 mm
7	AT218865	2	Hydraulic Hose	INCLUDES 51M7106
7	51M7106	2	O-Ring	7.500 X 1.500 mm
8	AT277521	1	Shifter Rod	-
9	AT277518	1	O-Ring	-
10	AT277519	4	Tappet	-
11	AT277522	1	Boot	-
12	AT277520	1	Cover	-
13	AT277523	1	Handle	-
14	AT305545	1	Valve	Components Listed On Another Page
14	AT264984	1	Valve Stack	Components Listed On Another Page
15	AT277524	1	Gate	-
16	AT274281	4	Screw	-
17	AT218623	4	Fitting	SUB FOR AT218623
18	XEL10LCF	1	Fitting	SUB FOR AT218872 AND LW247242302
18	51M7106	1	O-Ring	7.500 X 1.500 mm
19	XEW10LOMDCF	1	Adapter Fitting	SUB FOR AT218871
19	51M7106	1	O-Ring	7.500 X 1.500 mm
20	AT184823	1	Fitting	-
20	51M7106	1	O-Ring	7.500 X 1.500 mm
21	AT264969	1	Tee Fitting	-
22	XET10LOMDCF	1	Adapter Fitting	SUB FOR AT218873 AND LW482430314
22	51M7106	1	O-Ring	7.500 X 1.500 mm
23	51M7106	2	O-Ring	7.500 X 1.500 mm
23	AT278416	1	Hydraulic Hose	Fabricate
24	AT303328	2	Hydraulic Hose	Fabricate, ALSO ORDER T78393 AND T59014
24	T59014	2	O-Ring	-
24	T78393	2	O-Ring	-
26	LW10490784	2	O-Ring	SUB FOR LW10290520 AND AT274678
27	LW10286359	4	Flange Fitting	SUB FOR AT274302, THIS APPLICATION
28	19M7550	8	Cap Screw	M10 X 35
31	AT218852	2	O-Ring	-
32	AT326441	4	Flange	SUB FOR AT218518
33	19M8423	8	Cap Screw	M14 X 45
36	AT264777	2	Hose Clamp	-
37	AT311985	1	Plate	SUB FOR AT276201
38	19M7185	1	Cap Screw	M8 X 60
39	AT303344	1	Junction Block	-
45	LW10472425	2	O-Ring	SUB FOR LW10290518
46	AT264904	2	Plug	-
47	AT326441	4	Flange	SUB FOR AT218518
48	19M8423	8	Cap Screw	M14 X 45
50	AT218623	4	Fitting	SUB FOR AT218623
51	XM10LCFX	1	Fitting	SUB FOR AT261739
52	XVKA10CF	1	Fitting	SUB FOR AT261740
53	PMH3397	1	Fitting	SUB FOR AT277163
54	XM15LCFX	1	Fitting	SUB FOR AT303345
55	XVKA15CF	1	Fitting	SUB FOR AT303347
56	AT277189	1	Fitting	-
57	XM12LCFX	1	Fitting	SUB FOR AT274234
58	XVKA12CF	1	Fitting	SUB FOR AT274299 AND LW477700514
58	51M7107	1	O-Ring	9 X 1.500 mm
59	LW11212937	1	Boot	-
60	LW11314892	1	Cap Screw	-
61	LW10337794	1	Compression Spring	-
62	LW10337795	1	Compression Spring	-

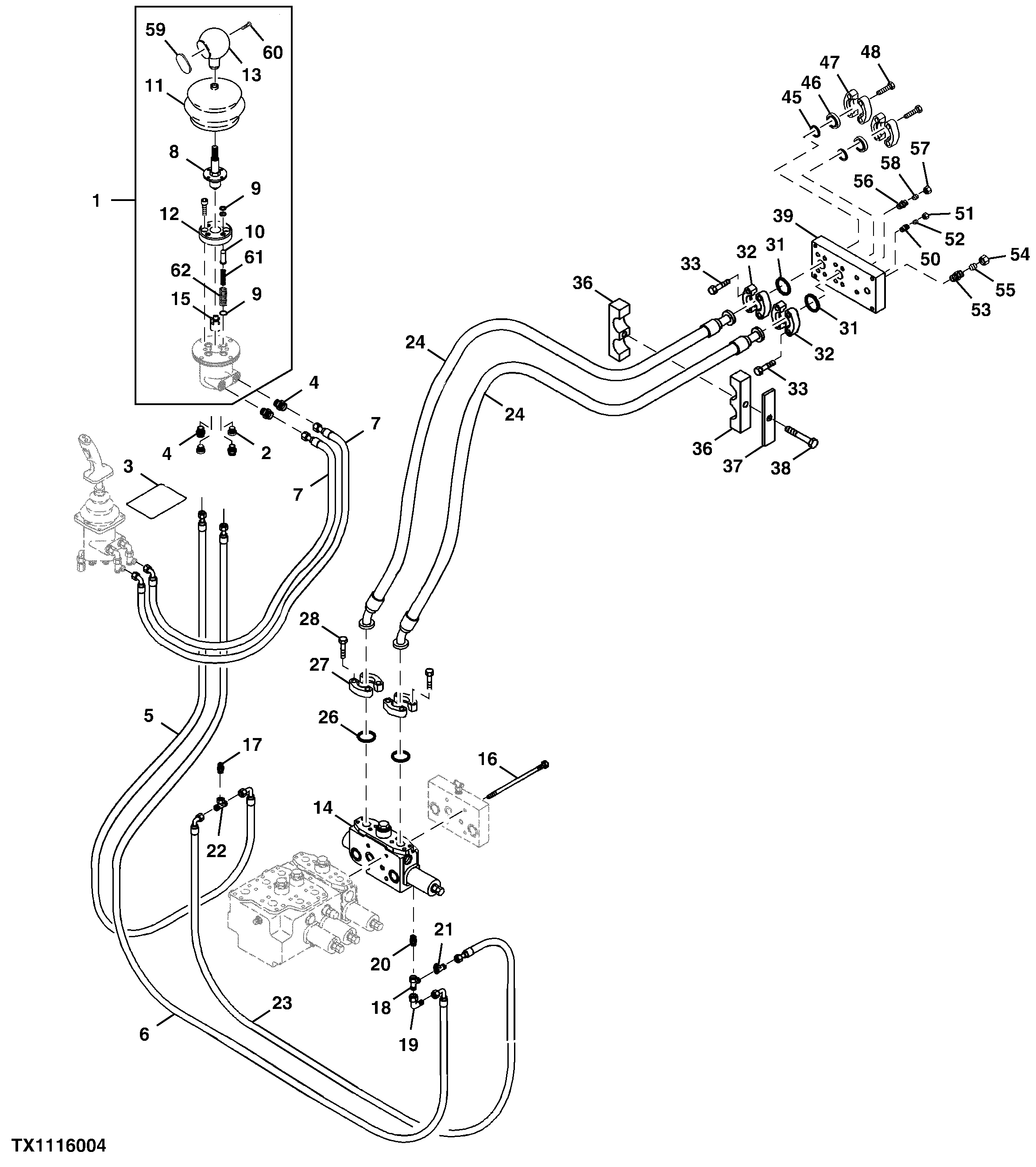

Winch Pilot Controller and Hydraulic Hoses
